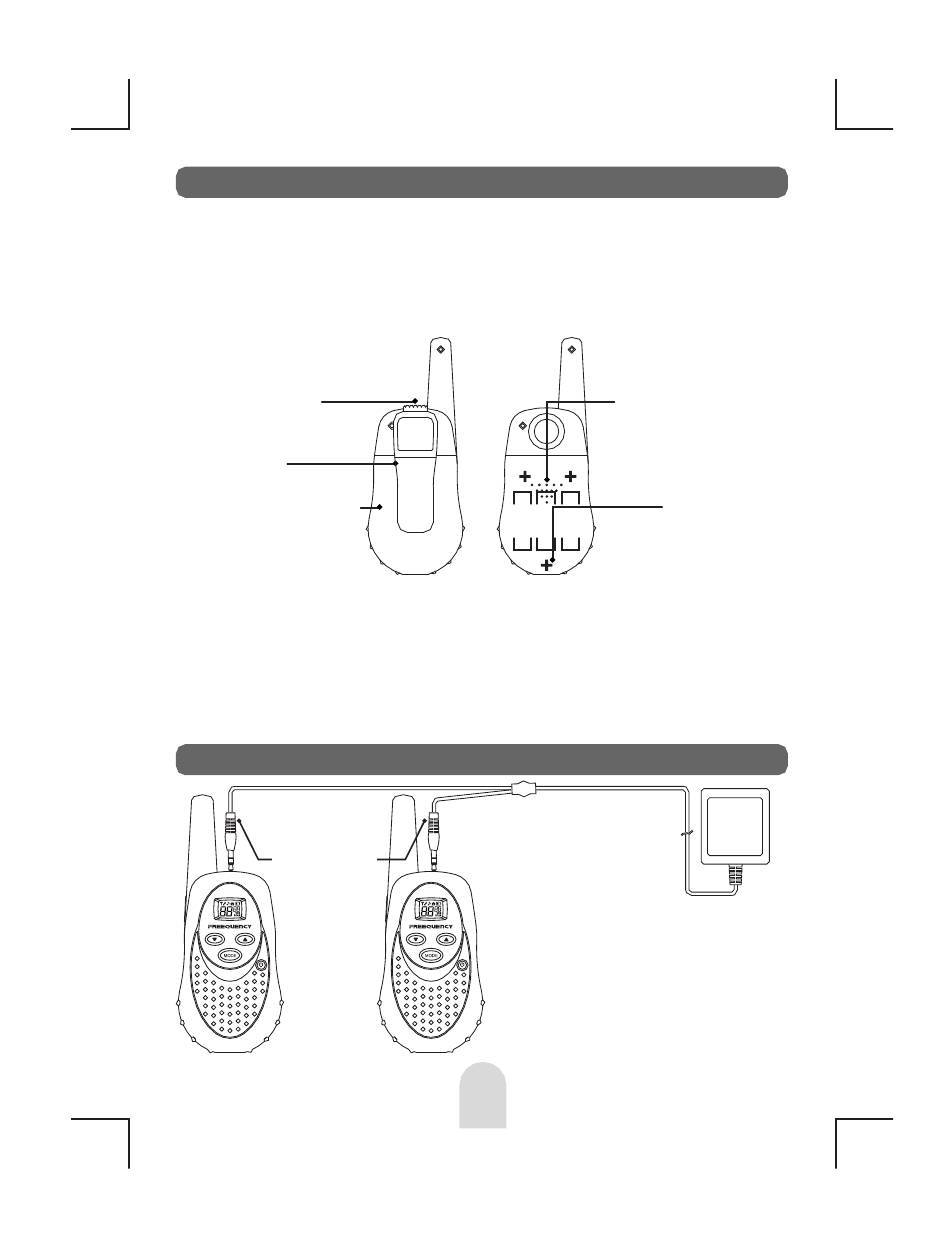

6. Installing the batteries

Battery installation is made more convenient when the belt clip is
either rotated left or right to the horizontal position, or is removed.
simply rotate the clip in either direction to the horizontal position.
Be careful not to use excessive force. To remove the clip, press
down on the spring release tab and pull the clip straight out from
the radio body.
CLIP SPRING
RELEASE TAB
BELT CLIP
BATTERY COVER
1. Using thumb, press down on battery cover at arrow and slide
cover down.
2. Then lift cover at bottom to open. Remove cover.
3. Insert three AAA batteries (positive (+) end toward the top
begining at left side and alternating positive terminals as
shown).
7. Charge Information (For PMR-120TX-2CH)
ADAPTOR
POWER
PLUG
COVER ARROW
INPUT : 230VAC
OUTPUT : 6VDC
NOTE: Only TTI approved
rechargeable batteries
can be recharged
in the radio transceiver.
6
PMR120(E) / 6 of 68
POSITIVE
TERMINALS
