1) Switch on the receiver with the switch POWER (11).
The LED CH1 (9) lights up.
2) Select the desired transmission channel at the
receiver with the button SET (10).

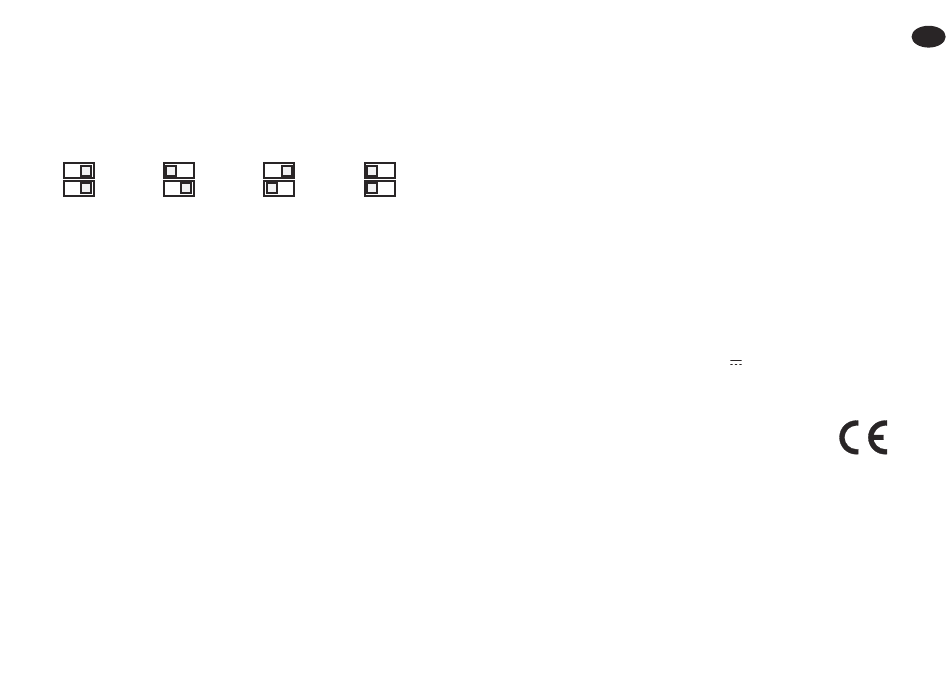

3) Adjust the transmitter with the DIP switches (5) to
the same channel:
1
2
channel 1
channel 2
2.414 GHz
2.432 GHz
4) In case of interference occurring on the selected
channel, select another transmission channel at the
receiver and at the transmitter.
5
Specifications
Transmitter
Transmitting power: . . . . . . < 10 mW (EIRP)
Range
without any obstacles: . . up to 100 m
in buildings . . . . . . . . . . . up to 20 m
Video input: . . . . . . . . . . . . . 1 Vpp, 75 Ω, BNC
Audio signal: . . . . . . . . . . . . from the integrated
Current consumption: . . . . . 50 mA
Dimensions: . . . . . . . . . . . . 38.5 x 34.5 x 32.5 mm
Weight: . . . . . . . . . . . . . . . . 25 g
channel 3
channel 4
2.450 GHz
2.468 GHz
microphone
Receiver
Video output: . . . . . . . . . . . 1 Vpp, 75 Ω, phono
Audio output: . . . . . . . . . . . 1 Vpp, 600 Ω, phono
Current consumption: . . . . . 250 mA
Dimensions: . . . . . . . . . . . . 78 x 92 x 23 mm
Weight: . . . . . . . . . . . . . . . . 200 g
Common specifications
Transmitting frequencies: . . channel 1
Antenna: . . . . . . . . . . . . . . . omnidirectional antenna
Modulation/demodulation: . FM
Supply voltage: . . . . . . . . . . 12 V
Ambient temperature: . . . . . -10 °C to +50 °C
Subject to technical modification.
All rights reserved by MONACOR
& Co. KG. No part of this instruction manual may be repro-
duced in any form or by any means for any commercial use.
2.414 GHz
channel 2
2.432 GHz
channel 3
2.450 GHz
channel 4
2.468 GHz
®
INTERNATIONAL GmbH
GB
11
