Scan Measurement
1
1
1
18
2
3

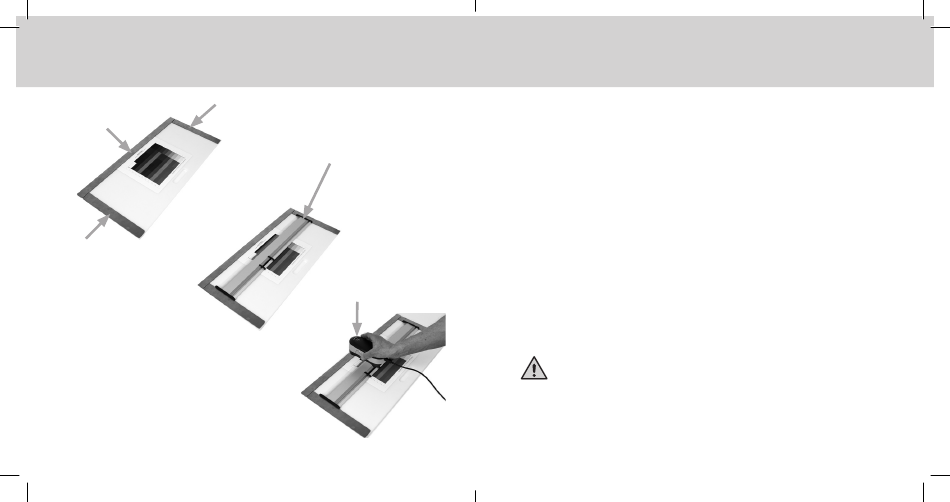

To prepare your i1Pro 3 device for a scan measurement you need to mount the
i1Pro 3 device on the ruler. Make sure your device is calibrated and the status
indicator is pulsating white before you mount it.
1. Use the magnet bars to secure the test chart on the backer board.
2. Place the ruler on the backer board.
3. Position the i1Pro 3 device in the carriage on the ruler. Make sure that the
positioning pins on the carriage slide into the reference gaps on the bottom of the
i1Pro 3 device. Double-check that the i1Pro 3 device seats firmly in the carriage.
4. During scanning measurement make sure that the device's limiting aperture glides
smoothly on the guide rail of the ruler.
5. Align the backer board for ease of use during scanning. Only apply light pressure
to the device when scanning.
The distance between the i1Pro 3 device and the surface of the printing
substrate is critical for the accuracy of your measurements. If the limiting
aperture of the device or the edge of the ruler's guide rail is worn out you
should replace them. Spare parts can be ordered through X-Rite's Service
Centers.
