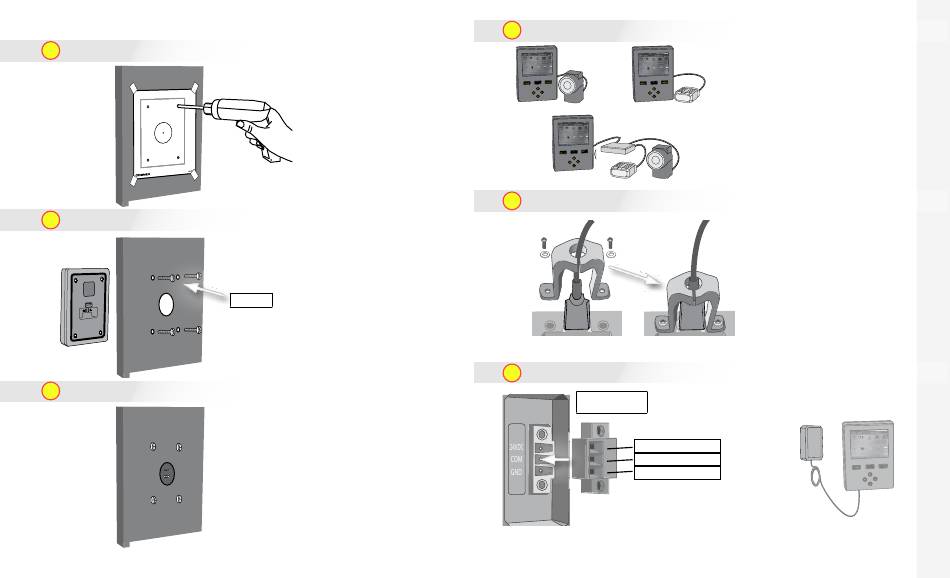

Mounting and Wiring

1
Drill mounting holes using supplied template
2
Make sure O-ring is in place, mount unit to panel
3
Tighten screws to 0.85 N-m (7.5 in-lbs)
6
Maximum thread
depth is 0.31"
(7.87mm). Bottoming
screws can damage
SensorView Teach
M4 x 0.7
Pendant.
4
Connect Device using USB cable
COGNEX
COGNEX COGNEX
COGNEX
COGNEX
COGNEX
COGNEX COGNEX
5
Secure USB cable using supplied retainer
COGNEX
COGNEX
COGNEX COGNEX
COGNEX
COGNEX
6 Connect to 24VDC and earth ground
Phoenix Contact
1715400
Supported devices are
COGNEX
COGNEX
Checker 3G series, Checker
200 series, and DataMan
100.
Connect multiple devices
using standard USB hub.
COGNEX COGNEX
(Maximum current for each
USB port 500 mA @ 5 VDC.)
COGNEX
COGNEX
Cognex 24VDC power
supply (158-0165R)
DC+ 22-26 V
Common
Ground
COGNEX
7
