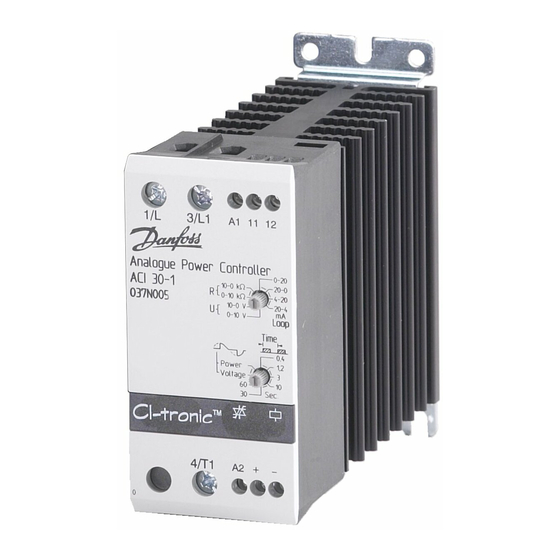

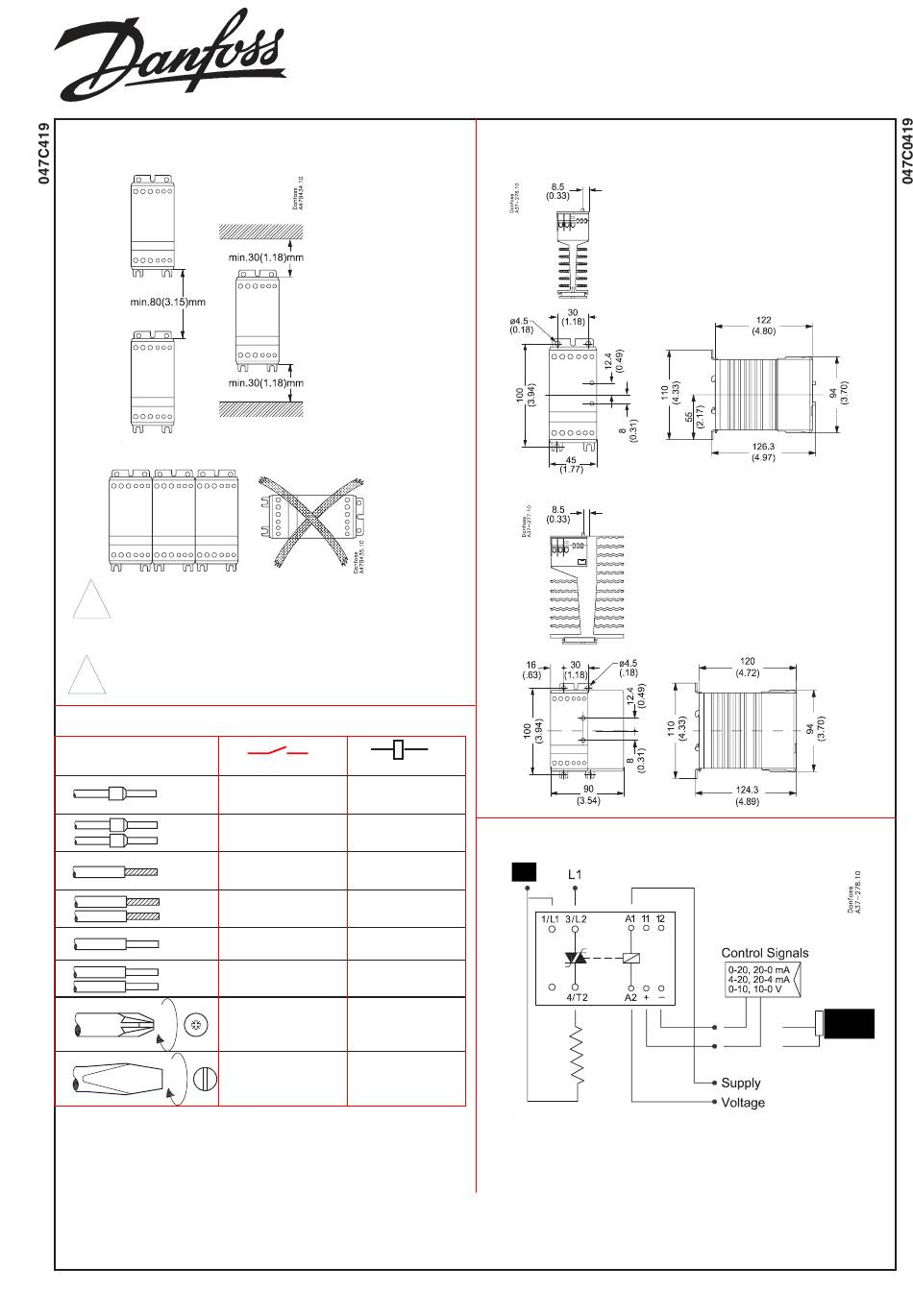

Danfoss ACI 30-1 Montageanleitung

Montering - Mounting - Montage
DK Hvis enhed er monteret vandret reducer strøm med 50%
!
UK If unit is mounted horizontally derate current by 50%
D Falls Einheit horizontal montiert wird, reduziert sich der Strom
um 50%.
DK Køleplade skal holdes ren. Luftstrøm må ikke blokeres
!
UK Keep heat sink clean. Airflow should not be blocked
D Kühlflächen freihalten. Luftstrom muß ungehindert fließen
Forbindelse - Wiring - Verbindung
75°C
Kabel/ Wire*
**
**
**
- Vigtigt: (Overhold max. skruedrejningsmomenter)
- Important:
(Observe the maximum screw torque limits)
- Wichtig: (Max. Drehmoment beachten)
* Use copper conductor only
** UL tested
DE: Se specifikationer i datablad
UK: See recommendation in data sheet
DE: Empfehlungen im Datenblatt beachten
UL: Use thermal overload protection as required by the National Electric Code Maximum sourrounding temperature40 °
© Danfoss | DCS (rja) | 2015-09
INSTRUCTIONS
mm (inch)
mm 2 (AWG) mm 2 (AWG)
1.5 - 6 0.5 - 1.5
(16 - 10) (20 - 16)
2 x 1.5 - 6 2 x 0.5 - 0.75
(2 x 16 - 10) (2 x 20 - 18)
1.5 - 6 0.5 - 1.5
(16 - 10) (20 - 16)
2 x 1.5 - 6 2 x 0.5 - 1.5
(2 x 16 - 10) (2 x 20 - 16)
1 - 10 0.5 - 1.5
(18 - 8) (20 - 16)
2 x 1 - 6 2 x 0.5 - 1.5
(2 x 18 - 16) (2 x 20 - 16)
Pozidrive 2
1.2 Nm max. N.A.
10.6 lb-in max.
6 mm 3 mm
1.2 Nm max. 0.5 Nm max.
10.6 lb-in max. 4.4 lb-in max.
ACI 30-1, ACI 50-1
Mål - Dimensions - Abmessungen
N/L
mm (inch)
ACI 30
ACI 50
10 kΩ
24 V AC/DC
30 mA max.
IC.PI.C50.L2.51
520B6901
