Installation

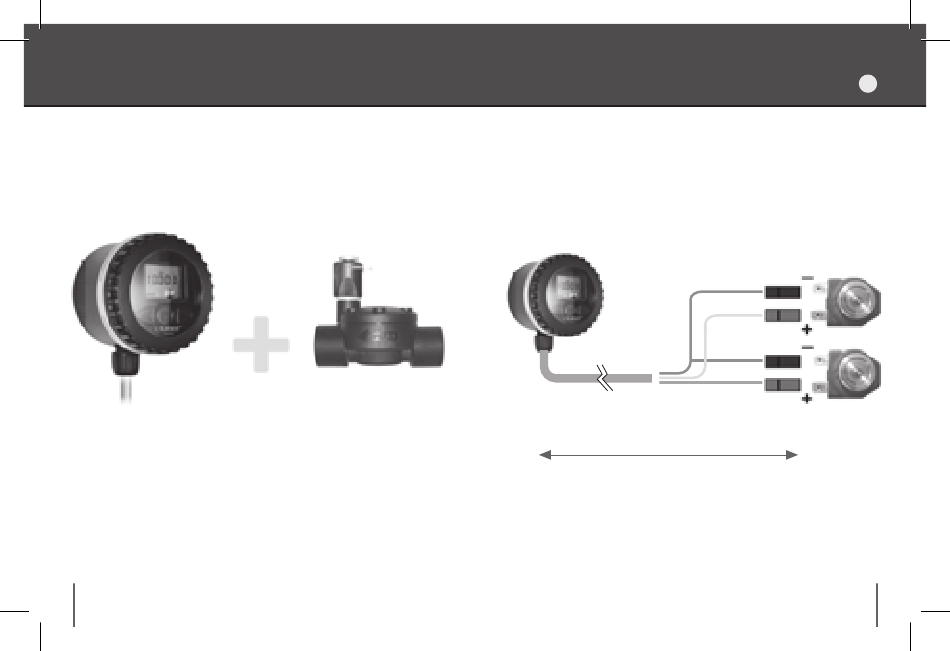

The control unit can pilot one or two 9V bistable solenoid valve.
28
Bistable solenoid
valves 9-12V
90822 - Ø 1" F
90823 - Ø 1" M
90881 - Ø 1/2" M
1. Connect the green wire to the negative pole (-) of each solenoid
valve (common).
2. Connect the white wire to the positive pole (+) of the solenoid
valve A.
3. Connect the brown wire to the positive pole (+) of the solenoid
valve B.
brown - line B
75 cm inclusive
max 30 m (section 1.5 mm
UK
INSTALLATION
Solenoid valve A
green - common
white - line A
Solenoid valve B
2 )
