Connect your router

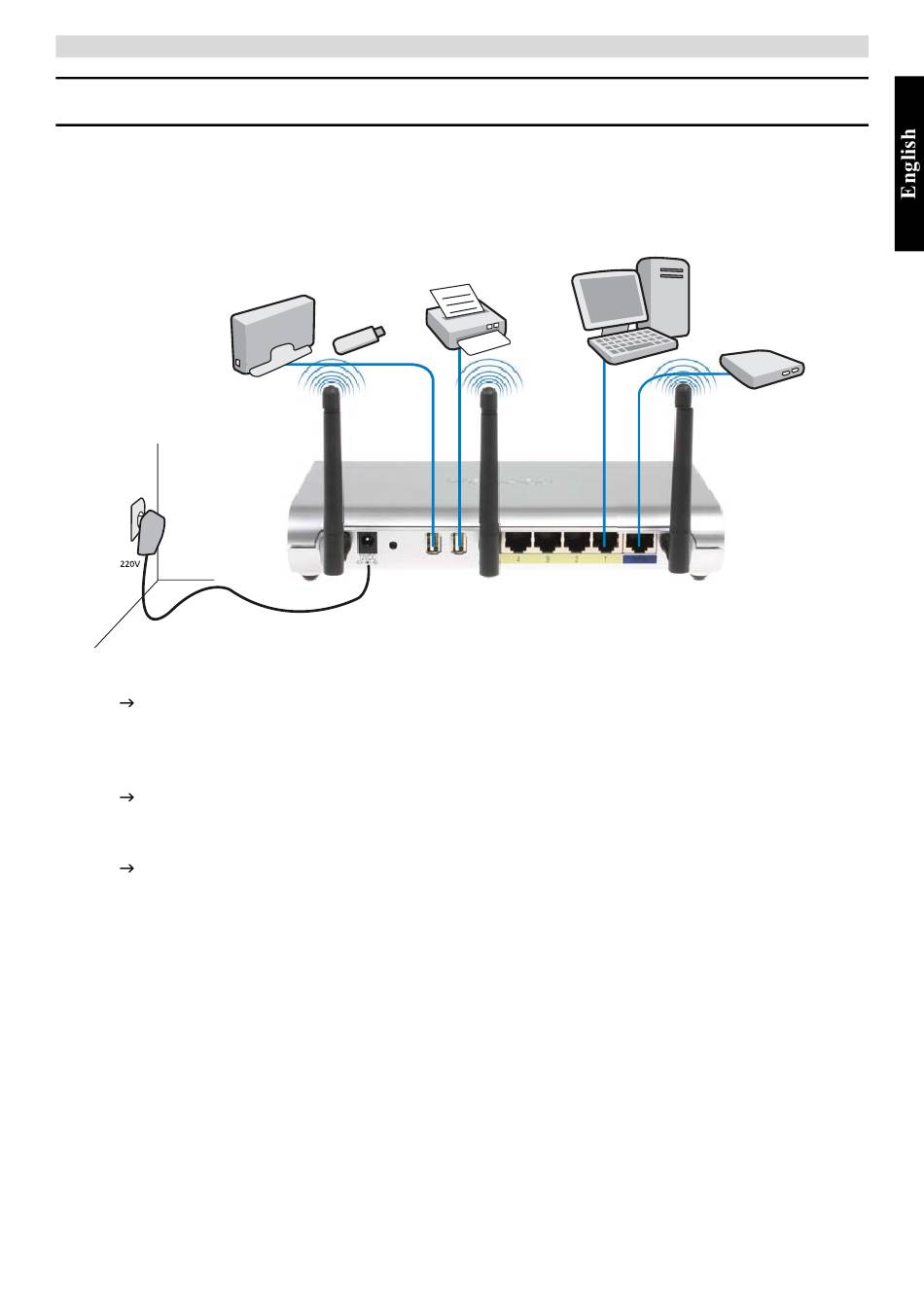

Please connect your router according to the diagram below
• POWER: The power port is to connect the 12V DC power adapter.
The power LED on the front panel will go ON when the power adapter is connected.
• WAN: The WAN port is to connect your Cable/DSL modem. The link LED in the front panel
will indicate that the ADSL line is connected.
The WAN LED will go ON if the network Ethernet cable is properly connected.
• Ports 1- 4: This is to connect up to 4 pc's or other network devices.
The LAN LED's will indicate the connection status.
• USB1 / USB 2: Connect your USB printer and/or your USB storage device to a USB port.
• Reset Button: To load default settings, press the reset button and hold it for 10 seconds. It will
load the factory default settings for the device. Do not press the reset button unless you want to
clear the current settings.
USB
HDD
USB
FLASH
OR
Reset
E n g l i s h
USB PRINTER
USB 2 USB 1
Connect your router
DSL/CABLE
MODEM
