• Carry the inverter by two people or more when the inverter is the model mass 20kg or more (VFAS3-
2110P - 2370P, VFAS3-4220PC - 4750PC). If you carry the inverter alone, this will result in injury.
• Transport a large-capacity inverter (VFAS3-2450P, 2550P, VFAS3-4900PC - 4280KPC) by a crane. If
you transport a heavy load by hand, this will result in injury. Please take the utmost care for the
operator's safety, and please handle the inverter carefully in order not to damage the product.

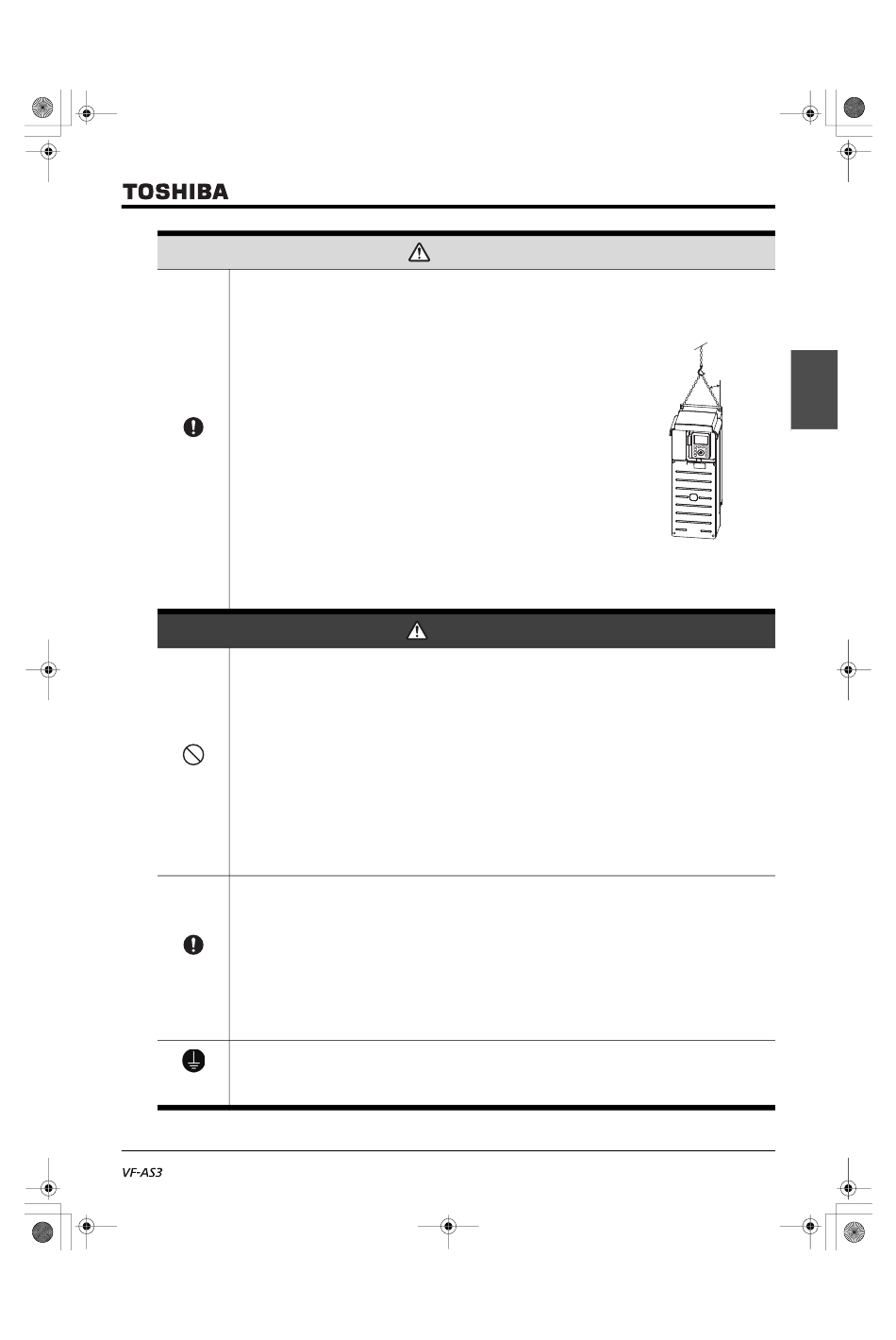

For lifting the inverter, hang the inverter with wire ropes via hanging bolts
(hanging holes) provided at upper part or lower part of the inverter as shown
below.
• Please make sure that the inverter is hanged by two wire ropes in a balanced
manner, and please be careful that the inverter does not receive excessive force
during the hanging operation.
• Do not carry the inverter with the cover attached, hold nor put the hand in the
wiring holes during the transportation. You can have your hands pinched and
Mandatory injured.
• Transport the operation panel in accordance with law. Please transport the
action
operation panel by airplane or ship in accordance with law as a lithium battery is
used in the operation panel.
• Install the inverter at a place which can support the unit's mass. If you install the
inverter at a place which does not support the unit's mass, the unit will fall,
resulting in injury.
• Install the mechanical brake when it is necessary to hold a motor shaft. A brake
function of the inverter cannot perform mechanical hold, and it results in injury.
• When ambient temperature is above 50°C, use the operation panel by detaching it from the unit. There
is a risk that heat can rise up and flame can be emitted in the lithium battery used in the operation panel.
When ambient temperature is above 50°C, use the operation panel by detaching the panel from the unit
and extending the panel.
■ Wiring
• Do not connect power supply to the output (motor side) terminals [U/T1], [V/T2] and [W/T3]. Connecting
power supply to the output will damage the inverter and result in fire.
• Do not insert a braking resistor between DC terminals [PA/+] and [PC/-] or [PO] and [PC/-]. This will
result in fire. Please connect the braking resistor in accordance with the instruction manual.
• Do not touch wires of equipment (e.g. MCCB) that is connected to the inverter power side at least 15
minutes after turning off the power. If an electric charge remains in a capacitor in the inverter, touching
the wires before the indicated time will result in electric shock.
• Do not touch output terminals [U/T1], [V/T2] and [W/T3] on the PM motor side while the PM motor is
rotating even after turning off the power. While the PM motor is rotating even after the power is turned
off, as a high voltage is generated in the output terminals [U/T1], [V/T2] and [W/T3] on the PM motor
Prohibited
side, touching the output terminals will result in electric shock. Please perform wiring after verifying that
the PM motor is stopped.
• When using this 480V class inverter with a power supply system that is grounded in other than the
neutral point (e.g. when the power supply has delta connection with single phase grounding), the
grounding capacitor should not be grounded (or the capacity of the grounding capacitor should not be
increased).
Otherwise, it will result in failure or fire.
• Electrical construction work must be done by a qualified expert. Erroneous connection of power supply
by someone who does not have that expert knowledge will result in fire or electric shock.
• Connect output terminals (motor side) correctly. If the phase sequence is incorrect, the motor will
operate in reverse and that can result in injury.
• Wiring must be done after installation. If you perform wiring prior to installation, this will result in electric
shock or other injury. Verify that the power is turned off and the charge lamp is off before starting wiring.
If you perform wiring without verification, this will result in electric shock.
Mandatory
action • Tighten the screws on the terminal block to specified torque. If the screws are not tightened sufficiently
to the specified torque, this will result in fire.
• Verify that the power supply voltage is within +10% and -15% (±10% when the load is 100% in
continuous operation) of the applied power supply voltage written on the name plate. If you do not use
the appropriate power supply voltage, this will result in failure or fire.
• The grounding wire must be connected securely. If the grounding wire is not securely connected, when
the inverter has failure or earth leakage, this will result in electric shock or fire.
Be
grounded
CAUTION
WARNING
EN-3
