SLX4 Receiver

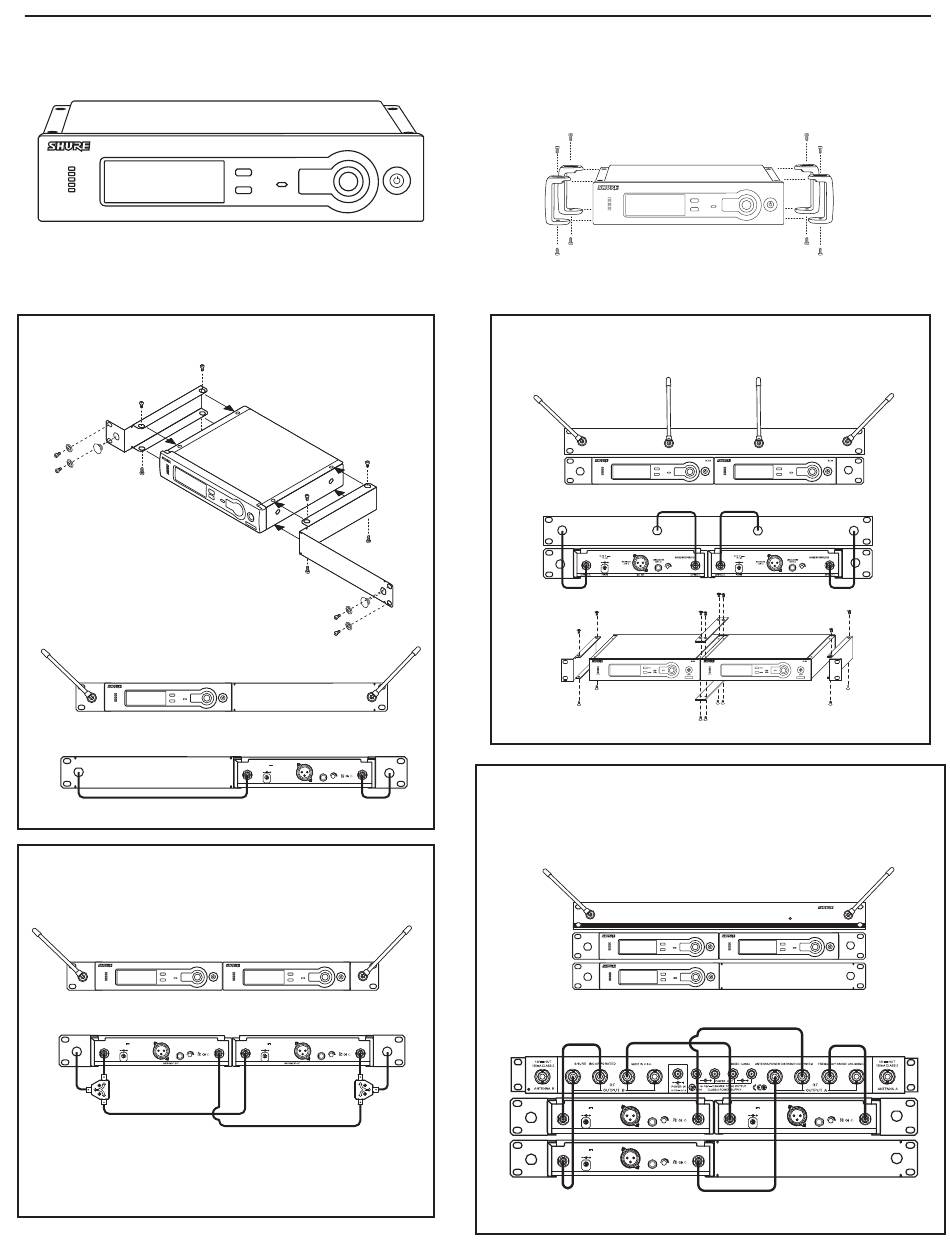

Montaje de receptores SLX en rack
Un receptor
• Todos los accesorios se suministran
Dos receptores con juego de bifurcador/combinador de
antenas UA221
• Accesorios requeridos: 1 x UA221
12–18 V
SHURE INCORPORATED
170 mA
NILES, IL 60714
UNBALANCED
SLX4 RECEIVER
BALANCED HIGH Z
LOW Z
IC: 616A–SLX4
ANTENNA B POWER MIC OUT VOLUME
UA221
SLX4
12–18 V
SHURE INCORPORATED
170 mA
UNBALANCED NILES, IL 60714
BALANCED HIGH Z SLX4 RECEIVER
LOW Z
N108
IC: 616A–SLX4
ANTENNA B POWER MIC OUT INSTRUMENT OUT VOLUME ANTENNA A
SLX4 SLX4
12–18 V
SHURE INCORPORATED
170 mA
NILES, IL 60714
UNBALANCED
SLX4 RECEIVER
BALANCED HIGH Z
LOW Z
N108 N108
IC: 616A–SLX4
ANTENNA A ANTENNA B POWER VOLUME ANTENNA A
Instalación de defensas protectoras
Se recomienda si el receptor no se instala en rack. Utilice los tornillos provistos.
Dos receptores
Accesorios requeridos: 1 x UA440
•
Tres o cuatro receptores
Accesorios requeridos: 1 x UA844
•
