SLX4 Receiver

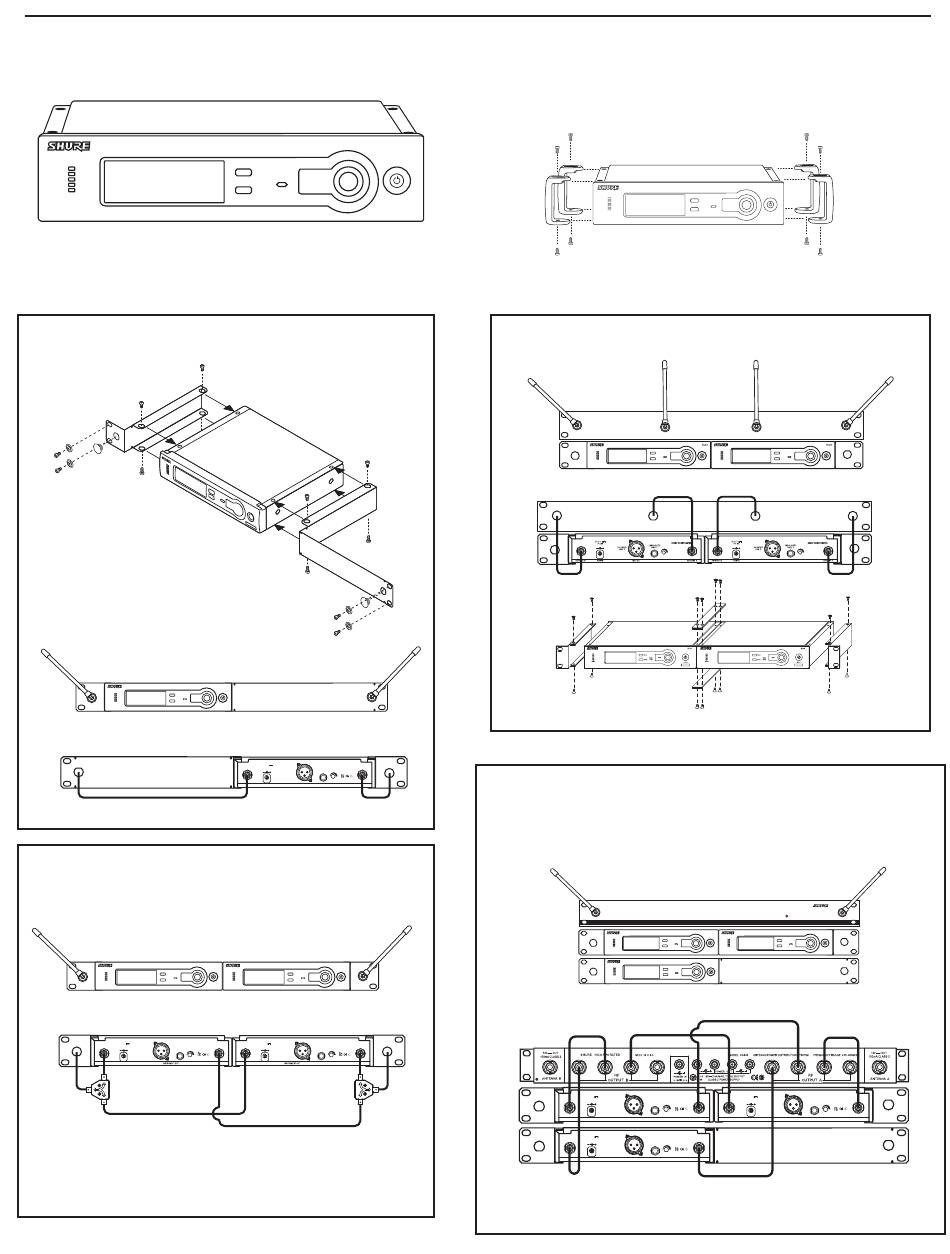

Montage en rack des récepteurs SLX
Un récepteur
• Tous les accessoires sont fournis
Deux récepteurs avec kit coupleur/combineur d'antennes
UA221
• Accessoires nécessaires : 1 x UA221
12–18 V
SHURE INCORPORATED
170 mA
NILES, IL 60714
UNBALANCED
SLX4 RECEIVER
BALANCED HIGH Z
LOW Z
IC: 616A–SLX4
ANTENNA B POWER MIC OUT VOLUME
UA221
SLX4
12–18 V
SHURE INCORPORATED
170 mA
UNBALANCED NILES, IL 60714
BALANCED HIGH Z SLX4 RECEIVER
LOW Z
N108
IC: 616A–SLX4
ANTENNA B POWER MIC OUT INSTRUMENT OUT VOLUME ANTENNA A
SLX4 SLX4
12–18 V
SHURE INCORPORATED
170 mA
NILES, IL 60714
UNBALANCED
SLX4 RECEIVER
BALANCED HIGH Z
LOW Z
N108 N108
IC: 616A–SLX4
ANTENNA A ANTENNA B POWER VOLUME ANTENNA A
Ajout de pare-chocs de protection
Recommandé si le récepteur n'est pas monté en rack. Utiliser les vis fournies.
Deux récepteurs
Accessoires nécessaires : 1 x UA440
•
Trois ou quatre récepteurs
Accessoires nécessaires : 1 x UA844
•
