CONNECTION DIAGRAM

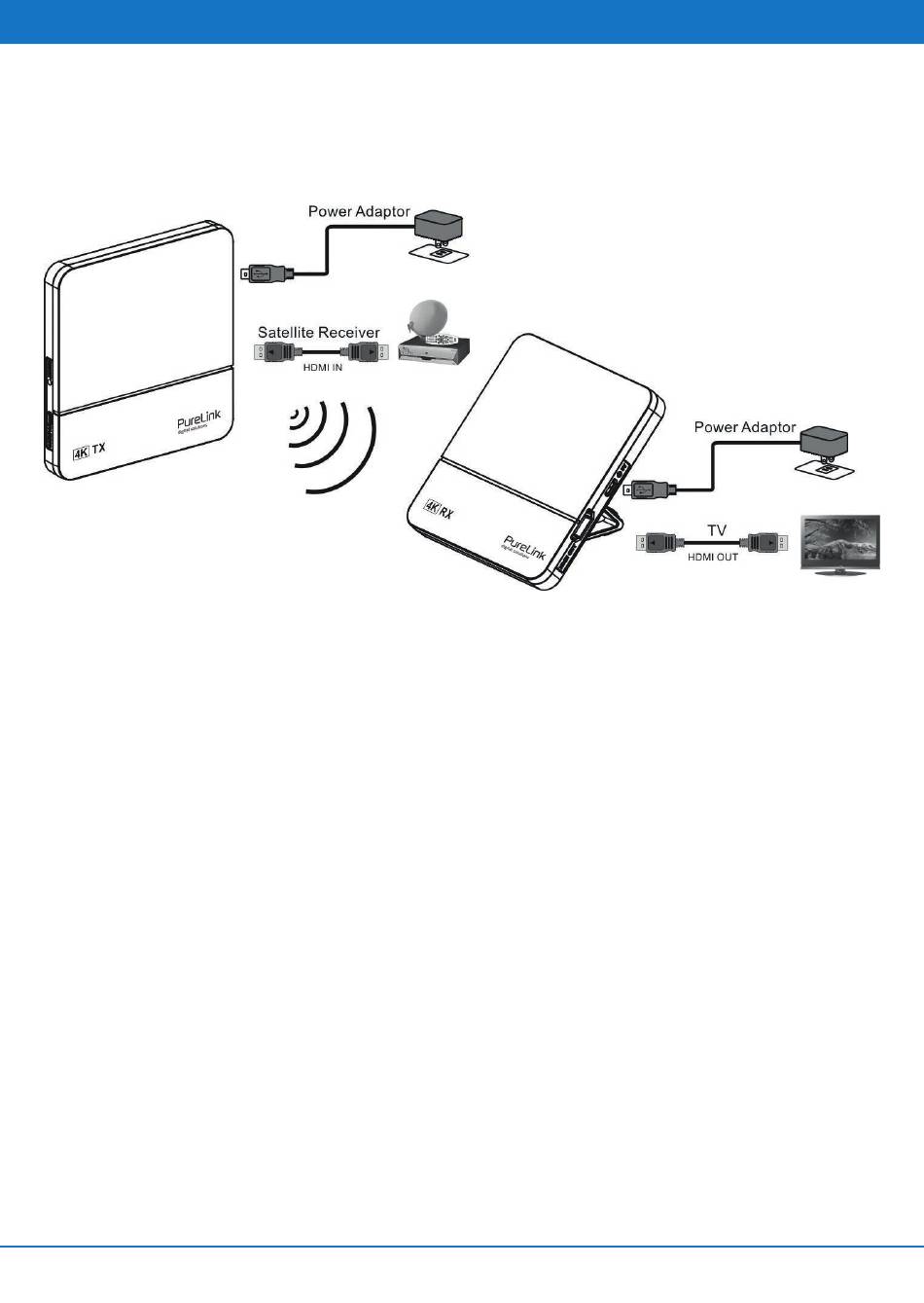

Connection:
Step 1: Use HDMI cable to connect the HDMI IN of CSW200 Transmitter to a 4K Source device
(Satellite receiver, CATV STB, BD player, PS4, Xbox)
Step 2: Use HDMI cable to connect the HDMI OUT of CSW200 Receiver to a 4K Display device
(UltraHDTV, Projector)
Step 3: Install the Stand in the most stable state , the stand can put change 45 or 90 degree
Step 4:
Connect a DC 5V/1A power adaptor to the Power Jack (Micro USB type) of CSW
Transmitter and Receiver.
Step 5: Connection completed & ready to use.
If no video signal on your display, please pairing the TX and RX first. (Press the PAIRING key of RX box
and then press the PAIRING key of TX box).
