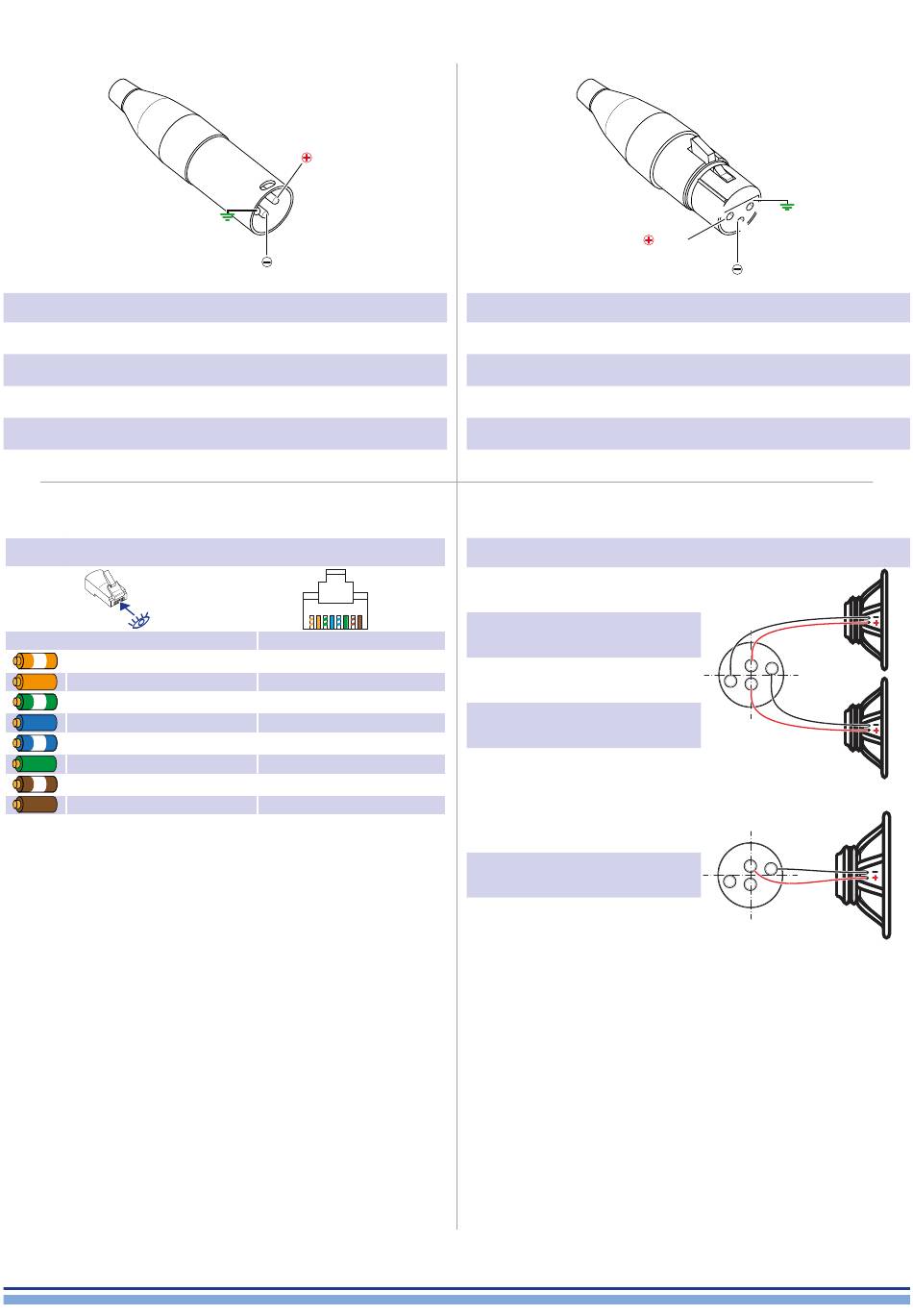

Pinouts
Analog/AES3 input XLR-M pinout
Pin# Terminal
1 Ground (GND)
2 Positive (+)
3 Negative (-)
Network Connector RJ45 pinout
Color code (TIA/EIA-568-B)
ORANGE / WHITE
ORANGE
GREEN / WHITE
BLUE
BLUE / WHITE
GREEN
BROWN / WHITE
BROWN
HOT
2
1
3
GND
COLD
1 2 3 4 5 6 7 8
Pin
1
2
3
4
5
6
7
8
Analog/AES3 link XLR-F pinout
Pin# Terminal
1 Ground (GND)
2 Positive (+)
3 Negative (-)
Output NL4 Speakon-F pinout
Single Ended
1+ Speaker A positive terminal
1- Speaker A negative terminal
2+ Speaker B positive terminal
2- Speaker B negative terminal
Bridged
1+ Speaker positive terminal
2- Speaker negative terminal
GND
1
2
3
HOT
COLD
1+
2–
1–
2+
1+
2–
1–
2+
A
B
