RAYSTAT-ECO-01
Energy-Saving Freeze Protection Controller Installation Instructions
DESCRIPTION
The nVent RAYCHEM Raystat-ECO-01 controller is used to
control heat-tracing freeze protection systems based on ambient
temperature. The controller provides a pilot-duty relay to drive an
external contactor.
The controller adjusts the power of the heating cable by
energizing the circuit for a percentage of a complete duty cycle.
For example, if the ambient temperature is halfway between
minimum ambient and 40°F (4°C), the heating cable will be
energized for 5 minutes and off for 5 minutes. The actual duty-
cycle periods and ratios vary, depending on ambient temperature.
For technical support, call nVent at (800) 545-6258.
ELECTRICAL CODES
Installation and all wiring must be in accordance with applicable
regulations. The controller must be installed by a qualified
electrician and in nonclassified areas only.
OPERATING ENVIRONMENT
Enclosure: Polycarbonate, rated NEMA 4X and IP67
Temperature: –40°F to 125°F (–40°C to 52°C)
Humidity: 5% to 95% relative humidity, noncondensing
WARNING: This controller must be installed properly to ensure
proper operation and to prevent frozen pipes, shock, or fire.
Read and carefully follow all the installation instructions.

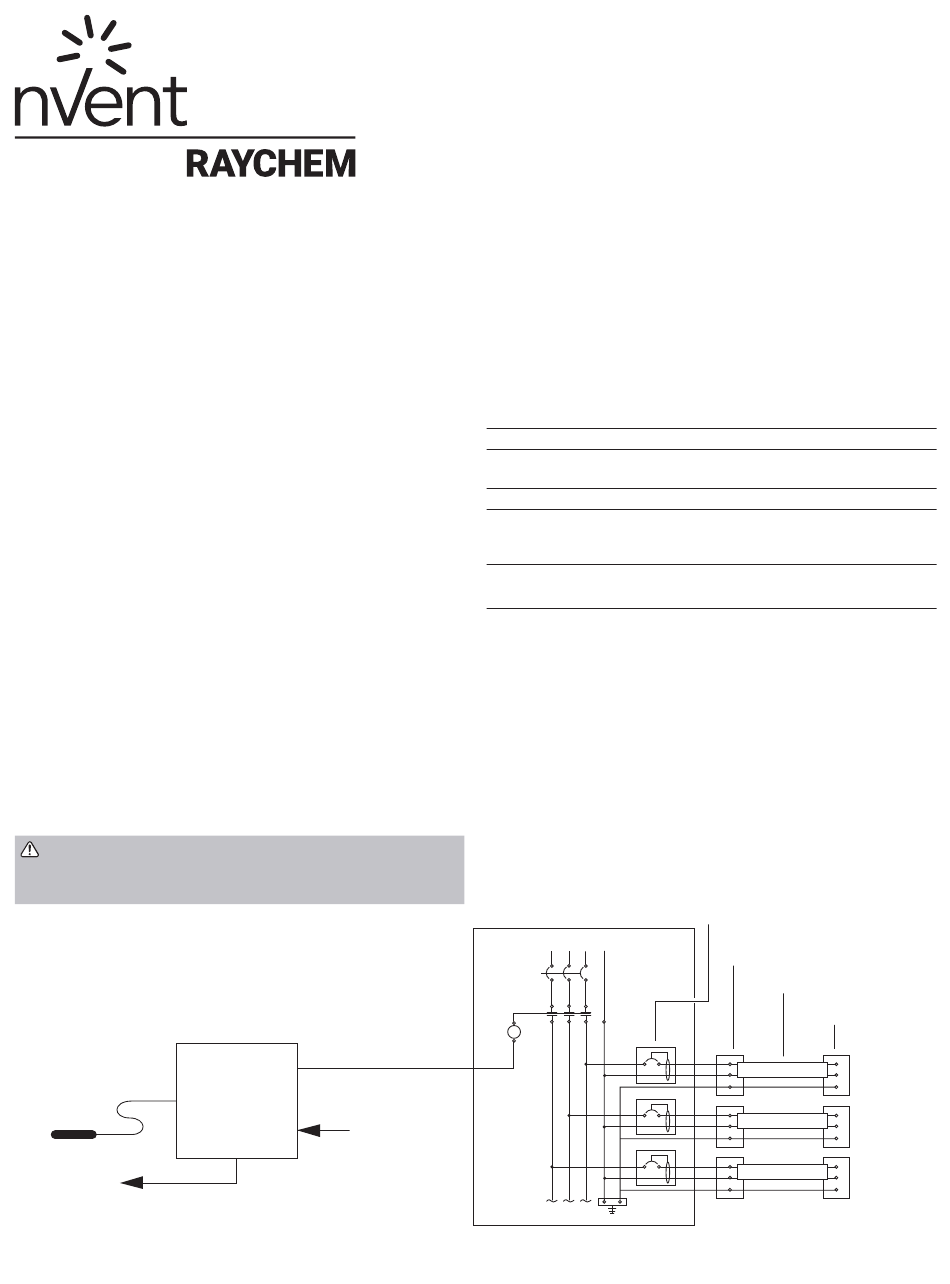

TYPICAL INSTALLATION
Ambient
sensing
RTD
Alarm
relay
output
RAYSTAT-ECO-01
Control output
Dedicated
supply voltage
120/240 Vac
controller
SPECIFICATIONS
Input power: 100 –240 Vac ± 10%, 50/60 Hz; internal
power less than 5 watts
Maintain temperature: Settable to 40°F or 50°F (4°C or 10°C)
Minimum ambient Settable from 20°F to –70°F (–7°C to –57°C)
temperature:
Control relay: SPST, 3 A at 240 Vac
Alarm relay: SPDT, 0.6 A at 125 Vac, 2 A at 24 Vac/Vdc,
switches on power loss, RTD failure, or
temperature alarm
Replaceable fuses: 80-mA transformer fuse
4-A control relay fuse
INSTALLATION MATERIALS/TOOLS (NOT SUPPLIED)
• Wall fasteners for mounting: four screws for a 3/16-in
(4.5-mm) hole.
PARTS (SUPPLIED)
• RAYSTAT-ECO-01 controller
• 100-ohm RTD with 6-ft (2-m) lead
• Gland (black), seal, and locknut for RTD
• Plug-in connectors for RTD and alarm relay
• 3 glands (gray), seals, and locknuts for 0.25–0.5-in (8–13-mm)
diameter cables.
• 2 watertight hole plugs for unused holes
• 2 sets of replaceable fuses
ø 1 ø 2 ø 3
N
Control
contactor
C
Distribution panel
Ground-fault
protection device
Power connection
Heating cable
End seal
