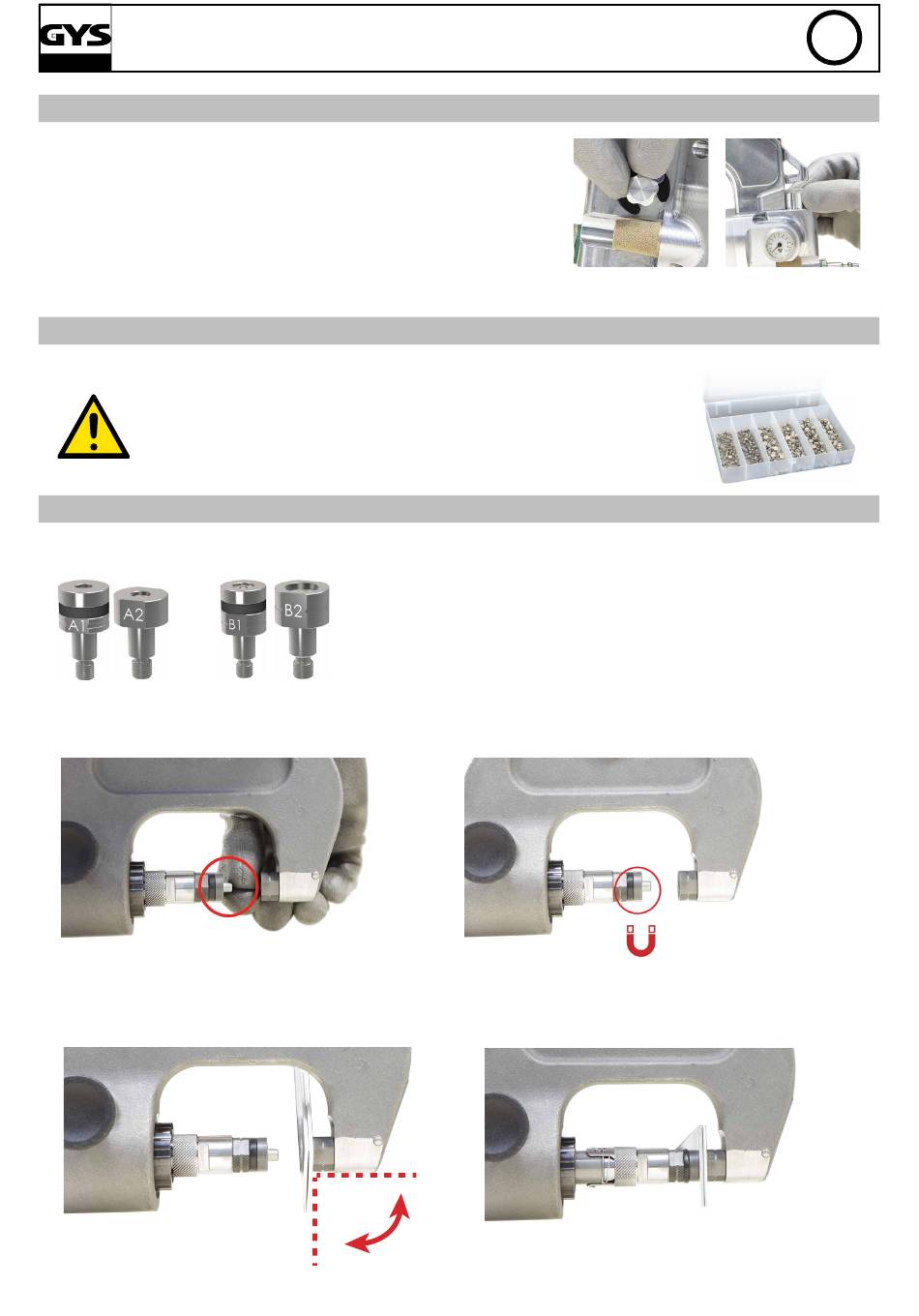

SPEED AND PRESSURE CONTROL
The user can adjust manually the speed of the actuator as well as
rivet installation pressure according to the type of material in order
to avoid distortion.
See page 61 in order to adjust the pressure according to the
material and matrix.
RIVET BOX INCLUDED
The riveting machine is delivered with a box of 300 self-piercing rivets.
These sample rivets are provided to allow a test of the machine. They are
specific to car body repair.
INSTALLATION OF SELF-PIERCING RIVETS
Ø 3,3 mm
During the installation of self-piercing rivets, make sure that the rivets are well-placed. The matrix must not be damaged
as problems during the riveting process may occur.
During each riveting process, make sure that the matrix - and the rivet itself - are layed out on the metal sheets to
assemble. It is important to put the punch support in place in order to form a 90° angle.
14
GYSPRESS 8T PUSH PULL
Ø 5,3 mm
90°
Speed Pressure
