Parts; Bauteile; Pièces; Piezas - Lewmar C4 Installations- Betriebs Und Wartungshandbuch

Parts

Bauteile

8
4
5
12
15
Servicing Wartung
Pièces
1
6
2
7
9
Service Kits Description
3
66000084
66000083
10
11
13
14
Entretien

Piezas

Parti

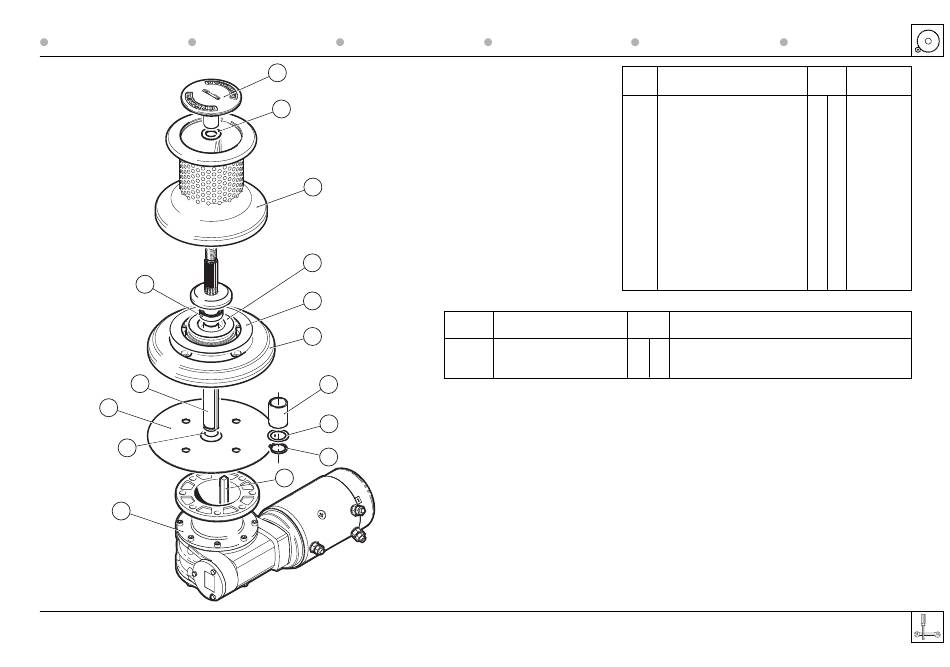

Item No Description
1 DRUM CAP
2 DRUM
3 BASEPLATE ASSEMBLY
4 MAINSHAFT, WITH CLUTCH CONE
5 BASE MAT (GASKET)
6 WASHER
7 RUBBING WASHER
8 DOUBLE LIP SEAL
9 ADHESIVE WASHER
10 PLAIN BEARING
11 DELRIN WASHER
12 SPIROL CLIP
13 EXTERNAL CIRCLIP
14 DRIVE KEY
15A C4-12V MOTOR/GEARBOX
15B C4-24V MOTOR/GEARBOX
15C C5-12V MOTOR/GEARBOX
15D C5-24V MOTOR/GEARBOX
Quantity
C4 C5
BASEPLATE ASSEMBLY 1 1
BEARING, SEAL & CIRCLIP KIT 1 1
Servicio Manutenzione

Delar

Quantity Part or Service
C4 C5
1 1
1 1
1 1
1 1
1 1
1 1
1 1
1 1
1 1
1 1
1 1
1 1
1 1
1 1
1 -
1 -
- 1
- 1
Parts Included in Kit
3 (1), 8 (1), 10 (1)
6 (1), 7 (1), 8 (1), 9 (1), 10 (1), 11 (1), 12 (1), 13 (1), 14 (1)
Underhåll
Kit Number
66200244
66200239
66000084
66000082
66200248
66000083
66000083
66000083
66000083
66000083
66000083
66000083
66000083
66000083
68000534
68000535
66810011
66810012
17
