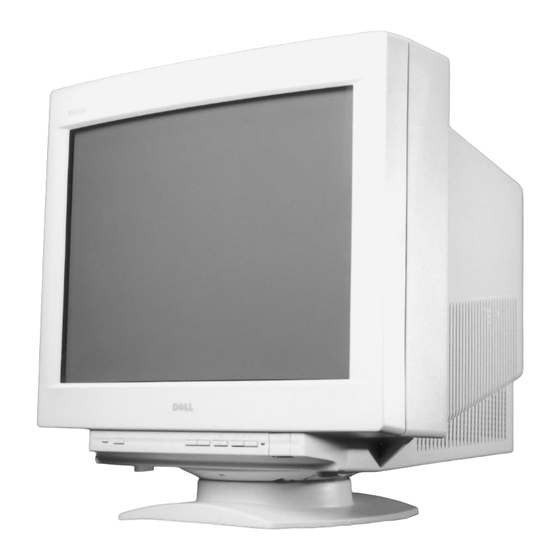

® ® Dell Model UltraScan P990 Color Monitor User’s Guide ® Guide de l’utilisateur du moniteur couleur Dell UltraScan P990 ® Dell Modell UltraScan P990 Farbmonitor - Benutzerhandbuch ® Monitor en color Dell modelo UltraScan P990; Guía del usuario www.dell.com...
Seite 3
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Computer Corporation disclaims any proprietary interest in trademarks and trademarks and trade names other than its own.
Seite 5
English Contents ................1-Vii Main Body................1-1 Appendix ................A-1 Français Table des matières .............2-V Corps principal ..............2-1 Appendice ................. A-1 Deutsch Inhalt ..................3-V Hauptteil................3-1 Anhang ................A-1 Español Contenido ................4-V Texto principal ..............4-1 Apendice................A-1 ...............5-V ..............5-1 ..............A-1 ................6-V ..............6-1 ................
Warranties and Return Policy ..........1-21 Dell Computer Corporation’s Environmental Program ......1-26 Year 2000 Statement of Compliance for Dell-Branded Hardware Products .
Introductions Safety Instructions • Prevent internal heat build up by allowing adequate air circulation. Do not place the monitor on surfaces (rugs, blankets, etc.) or near materials (curtains, draperies) that may block the ventilation holes. • Do not install the monitor near heat sources such as radiators or air ducts, or in a place subject to direct sunlight, excessive dust, mechanical vibration or shock.
Place magnetic recording equipment, tapes and disks away from this monitor. The socket should be installed near the equipment and be easily accessible. Dell Model UltraScan P990 Color Monitor User’s Guide...
AC power outlet Switch on the monitor and computer. Adjust the user controls according to your personal preference. Installation is complete. NOTE: If you have any problems with your Dell Monitor, refer to the “Troubleshooting” section on pages 1-15 to 1-19. Setup...
The indicator lights up green when the monitor is on, and lights up orange when the monitor is in Power Saving mode. 7 AC IN connector Provides AC power to the monitor. 8 Blue Video signal input connector (HD15) attached Inputs RGB video signals and SYNC signals Dell Model UltraScan P990 Color Monitor User’s Guide...
Using the tilt-swivel This monitor can be adjusted within the angles shown below. To turn the monitor vertically or horizontally, hold it at the bottom with both hands. 90° 15° 90° 5° Adjusting the Brightness and Contrast (BRIGHTNESS) m/M or 6 (CONTRAST) </, buttons. Press the The BRIGHTNESS/CONTRAST OSD appears.
(such as an MS-DOS prompt). Introducing the On Screen Display (OSD) system Navigating the menu Press the MENU button to display the main MENU on your screen. Dell Model UltraScan P990 Color Monitor User’s Guide...
(BRIGHTNESS) m/M and Use the MENU buttons to select the desired function. CENTER CENTER Select the CENTER menu to adjust the picture’s centering. SIZE SIZE Select the SIZE menu to adjust the picture’s hori- zontal and vertical size. GEOMETRY GEOMETRY Select the GEOMETRY menu to adjust the picture’s rotation and shape.
Seite 16
6 </, buttons to adjust the color tem- perature manually. VARIABLE When using one of the GEM modes, you can fine COLOR tune the color temperature from 11,000K to 9,300K. VARIABLE Dell Model UltraScan P990 Color Monitor User’s Guide...
CONVERGENCE CONVERGENCE Select the CONVERGENCE menu to adjust the pic- ture’s quality. You can adjust the vertical and horizontal convergence. Table 3-2. Convergence Adjustments Select eliminate horizontal red or blue color shadows H CONVERGENCE eliminate vertical red or blue color shadows V CONVERGENCE OSD POSITION OSD POSITION...
Moire is a type of natural interference which produces soft, wavy lines on your screen. It may appear due to interference between the pattern of the picture on the screen and the phosphor pitch pattern of the monitor. Example of moire 1-10 Dell Model UltraScan P990 Color Monitor User’s Guide...
Seite 19
Before you can adjust this setting, the Cancel Moire setting must be turned on. Select the CANCEL MOIRE menu to turn on the Moire OPTION Adjustment. •OFF •ON CANCEL MOIRE To adjust the amount of moire cancellation, first press OPTION m/M buttons to highlight (MOIRE ADJUST).
The INFORMATION OSD includes the model name, INFORMATION serial number, year and week of manufacture. MODEL : P990 SER NO : 123456789ABCD MANUFACTURED : 1998-53 The OSD automatically disappears after 30 seconds. 1-12 Dell Model UltraScan P990 Color Monitor User’s Guide...
Resetting the adjustments This monitor has the following three reset methods. Use the RESET button to reset the adjustments. Resetting a single adjustment item Use the MENU button to select the adjustment item you want to reset, and press the RESET button.
Troubleshooting This section may help you find the cause of a problem so you can solve the problem yourself. If thin lines appear on your screen (damper wires) The lines you may be seeing on your screen are normal for the Trinitron monitor and are not a malfunction.
Run the MONITOR SELF TEST function: (see above) played and the 1 indi- • Make sure none of the HD15 video input connector pins cator is green or are bent or pushed in. flashing orange 1-16 Dell Model UltraScan P990 Color Monitor User’s Guide...
Seite 25
Table 3-6. Troubleshooting Problems (continued) Symptom Check these items • Picture is scrambled Check your video board manual for the proper monitor setting. • Check this manual and make sure the monitor supports the graphics mode and the frequency at which you are trying to operate.
Seite 26
The moire may be modified depending on the con- visible nected computer. • Due to the relationship between resolution, monitor dot pitch and the pitch of some image patterns, certain screen backgrounds sometimes show moire. Change your desktop pattern. 1-18 Dell Model UltraScan P990 Color Monitor User’s Guide...
Seite 27
Table 3-6. Troubleshooting Problems (continued) Symptom Check these items • Two fine horizontal These Damper wires stabilize the vertically striped aper- lines (wires) are visi- ture grille (page 1-15). This aperture grille allows more light to pass through to the screen giving the Trinitron CRT more color and brightness.
Environmental Humidity ....Operating 10% to 80% (Non-condens- ing) Non-operating 5% to 90% (Non-condensing) Design and specifications are subject to change without notice. 1-20 Dell Model UltraScan P990 Color Monitor User’s Guide...
Dell in their original packaging or equivalent, prepay shipping charges, and you must insure the shipment or accept the risk of loss or damage during shipment. Dell will ship the repaired or replacement products to you freight prepaid if you use an address in the United States (excluding Puerto Rico and U.S.
Seite 30
Dell in their original packaging or equivalent, prepay shipping charges, and you must insure the shipment or accept the risk of loss or damage during shipment. Dell will ship the repaired or replacement products to you freight prepaid if you use an address in Canada.
Seite 31
“Total Satisfaction” Return Policy (U.S. and Canada) If you bought products directly from a Dell company, you may return them to Dell up to 30 days from the day they are delivered for a complete refund of the purchase price. If your company bought the products under a Corporate Performance Agreement with a Dell com- pany, there are limits on when products may be returned to Dell under this policy.
Seite 32
DELL or any of its affiliates, and neither DELL nor any of its affiliates shall be liable for loss of profit or contracts, or any other indi- rect or consequential loss arising from negligence, breach of contract, or howsoever.
Blue Angel plan. For returned material discounts on recent purchases, or for recycling of equipment neither sold by Dell nor covered by the Blue Angel plan, contact your local Dell Asset Management specialist. In carrying out this program, Dell’s general responsibilities include the following: •...
Seite 34
Dell monitor. Use of chlorine-free paper (Europe Only) As part of Dell’s policy to reduce the disposal impact of obsolete items on the environment and in compliance with guidelines in many geographical locations, all Dell documentation supplied with Dell equipment is printed on paper (fresh fiber from sustainable resources or recycled waste paper) bleached without the use of chlorine.
Seite 35
NOTE: Locations marked with an asterisk (*) are approved facilities for battery disposal. As Dell expands the network of Green Away centers, additional addresses will be available across Europe. Contact your local Dell customer service department for information about the availability of Green Away services in your location.
National Software Testing Laboratories (NSTL) YMARK2000 test.* Dell will treat a failure to pass the YMARK2000 test as a covered event under Dell’s warranty for the product, subject to the normal warranty limitations.** For a complete copy of Dell’s warranty, see the product’s documentation.
Dell Computer Corporation nor its affiliates assume any responsibility for inaccuracies, errors or omissions that may be contained herein. In no event will Dell Com- puter Corporation or its affiliates be liable for direct, indirect, special, incidental, or consequential damages resulting from any defect or omission in this document, even if advised of the possibility of such damages.
Seite 39
D’autres marques commerciales et noms de marque peuvent avoir été utilisés dans ce document en référence aux entités qui se réclament des marques et des noms ou leurs produits. Dell Computer Corporation décline tout intérêt de propriété sur les marques commerciales et noms de marque autres que les siens.
Seite 41
Table des matères Introduction ........2-1 Instructions de sécurité...
Seite 42
Norvège et en Suisse........... .2-21 Déclaration de conformité à l’an 2000 des matériels de la marque Dell ... . .2-22 Appendice .
Introduction Instructions de sécurité • Veillez à assurer une circulation d’air adéquate de manière à éviter toute surchauffe intérieure. Ne placez pas le moniteur sur des surfaces (tapis, couvertures, etc.) ni à proximité de textiles (tentures, draperies) qui risqueraient d’obstruer les orifices de ventilation.
à proximité du moniteur. Par con- séquent, éloignez les systèmes d’enregistrement magnétiques, les bandes magnétiques et les disquettes de ce moniteur. La prise secteur doit être installée à proximité de l’appareil et être aisément accessible. Guide de l’utilisateur du moniteur couleur Dell UltraScan P990...
Mettez le moniteur et l’ordinateur sous tension. Ajustez les commandes utilisateur en fonction de vos préférences person- nelles. L’installation est terminée. REMARQUE: Si vous rencontrez des problèmes avec votre moniteur Dell, reportez-vous à la section “Dépannage” aux pages 2-16 à 2-19. Installation...
7 Connecteur AC IN Assure l’alimentation du moniteur. 8 Connecteur d’entrée du signal vidéo bleu (HD15) Entrée des signaux vidéo RVB et des signaux SYNC. Guide de l’utilisateur du moniteur couleur Dell UltraScan P990...
Utilisation du support pivotant Le support pivotant vous permet de régler le moniteur suivant les angles indiqués ci-des- sous. Pour tourner le moniteur verticalement ou horizontalement, saisissez-le des deux mains par la base. 90° 15° 90° 5° Réglage de la luminosité et du contraste (LUMINOSITE) m/M ou 6 (CONTRASTE) </,.
Appuyez sur la touche MENU pour afficher le MENU principal à l’écran. MENU MENU SORTIR CENTRAGE TAILLE GEOMETRIE ZOOM COULEUR CONVERGENCE POSITION OSD OPTION HAUTE DEFINITION 80,0kHz/ 75Hz 1280 X 1024 Fréquences d’affichage et synchronisation présélectionnée Guide de l’utilisateur du moniteur couleur Dell UltraScan P990...
Seite 49
(LUMINOSITÉ) m/M et Utilisez les touches MENU pour sélectionner la fonction désirée. CENTRAGE CENTRAGE Sélectionnez le menu CENTRAGE pour ajuster le centrage de l’image. TAILLE TAILLE Sélectionnez le menu TAILLE pour ajuster la taille horizontale et verticale de l’image. GEOMETRIE GEOMETRIE Sélectionnez le menu GEOMETRIE pour ajuster la rotation et la forme de l’image.
Seite 50
6 </, pour ajuster manuellement la température des couleurs. VARIABLE En utilisant l’un des modes GEM, vous pouvez COULEUR ajuster finement la température des couleurs entre 11.000K et 9.300K. VARIABLE Guide de l’utilisateur du moniteur couleur Dell UltraScan P990...
CONVERGENCE CONVERGENCE Sélectionnez le menu CONVERGENCE pour ajuster la qualité de l’image. Vous pouvez régler la conver- gence verticale et horizontale. Table 3-2. Réglage de la convergence Sélectionnez Pour éliminer les ombres rouges ou bleues horizontales H CONVERGENCE éliminer les ombres rouges ou bleues verticales V CONVERGENCE POSITION OSD Sélectionnez le menu POSITION OSD pour changer...
Le moiré est une forme de parasite naturelle qui produit des lignes ondulatoires peu mar- quées sur votre écran. Il peut apparaître en raison d’interférences entre le motif de l’image affichée à l’écran et le motif des luminophores du moniteur. 2-10 Guide de l’utilisateur du moniteur couleur Dell UltraScan P990...
Seite 53
Avant de pouvoir effectuer ce réglage, vous devez activer l’option SUPPRIMER MOIRE. Sélectionnez le menu SUPPRIMER MOIRE pour activer OPTION la fonction de réglage du moiré. •OFF •ON SUPPRIMER MOIRE Pour ajuster le degré de suppression du moiré, appuyez OPTION m/M de façon à...
MODEL : P990 SER NO : 123456789ABCD MANUFACTURED : 1998-53 L ’écran disparaît automatiquement au bout de 30 secondes. 2-12 Guide de l’utilisateur du moniteur couleur Dell UltraScan P990...
Réinitialisation des réglages Ce moniteur est doté des trois méthodes de réinitialisation suivantes. Utilisez la touche REINITIALISATION pour réinitialiser les réglages. Réinitialisation d’un seul paramètre de réglage Utilisez la touche MENU pour sélectionner le paramètre de réglage que vous voulez réiniti- aliser et appuyez ensuite sur REINITIALISATION.
Dépannage Cette section peut vous aider à localiser la cause d’un problème de façon à ce que vous puissiez y remédier vous-même. Si de fines lignes apparaissent sur votre écran (fils d’amortissement) Les lignes que vous pouvez apercevoir sur votre écran sont normales sur les moniteurs Trinitron et ne représentent pas un dysfonctionnement.
AGE” apparaît sur Horizontale: 30 – 96 kHz l’écran Verticale: 48 – 120 Hz Pour le réglage de la plage de fréquence vidéo, reportez- vous au mode d’emploi de votre ordinateur. 2-16 Guide de l’utilisateur du moniteur couleur Dell UltraScan P990...
Seite 59
Table 3-6. Dépannage (suite) Symptôme Vérifiez les éléments suivants • Si aucun message Exécutez la fonction MONITOR SELF TEST: n’est affiché et si (voir page 2-16) l’indicateur 1 est • Assurez-vous qu’aucune broche du connecteur d’entrée allumé en vert ou cli- vidéo HD15 n’est faussée ou enfoncée.
Seite 60
• Apparition d’images N’utilisez pas de prolongateurs pour câble vidéo ni de fantômes boîtiers de commutation vidéo. Une longueur de câble excessive ou une connexion lâche peut produire ce symptôme. 2-18 Guide de l’utilisateur du moniteur couleur Dell UltraScan P990...
Seite 61
Table 3-6. Dépannage (suite) Symptôme Vérifiez les éléments suivants • Apparition d’un Supprimez le moiré via le menu OPTION (page 2-9). motif ondulatoire ou Le moiré peut être modifié en fonction de l’ordinateur elliptique (moiré) connecté. • La corrélation entre la résolution, le pas des points du moniteur et le pas de certaines trames d’image peut parfois provoquer l’apparition d’un moiré...
Humidité ambiante ....En service 10 à 80 % (sans condensation) Hors service 5 à 90 % (sans condensation) La conception et les spécifications sont sujettes à modifications sans préavis. 2-20 Guide de l’utilisateur du moniteur couleur Dell UltraScan P990...
à compter de la date d’achat originale. Les produits pour lesquels un appel à la garantie en bonne et due forme a été introduit seront, au choix de DELL, réparés ou remplacés aux frais de DELL.
(NSTL) YMARK2000.* Dell remédiera à toute défaillance de façon à satisfaire au test YMARK2000 au titre de la couverture de garantie de Dell et dans les limites de la garantie normale.** Pour un exemplaire intégral de la garantie Dell, reportez-vous à la documenta- tion qui accompagne le produit.
Informations complémentaires Pour obtenir des informations complémentaires sur la compatibilité avec l’an 2000 des matériels de la marque Dell, consultez le site Year 2000 Web de Dell à l’adresse http:// www.dell.com/year2000 ou consultez un représentant du service après-vente Dell de votre zone géographique.
Seite 66
2-24 Guide de l’utilisateur du moniteur couleur Dell UltraScan P990...
Einführung Sicherheitshinweise • Achten Sie auf ausreichende Luftzufuhr, damit sich im Monitor kein Wärmestau bildet. Stellen Sie den Monitor nicht auf Oberflächen wie Teppichen oder Decken oder in der Nähe von Materialien wie Gardinen und Wandbehängen auf, die die Lüftungsöffnungen blockieren könnten. •...
Datenträgern in der Nähe beschädigen kann. Legen Sie magnetische Datenträger und Bänder/Disketten daher nicht zu nahe bei diesem Monitor ab. Die Netzsteckdose sollte sich in der Nähe des Monitors befinden und leicht zugänglich sein. Dell Model UltraScan P990 Farbmonitor - Benutzerhandbuch...
Schalten Sie Monitor und Computer ein. Stellen Sie den Monitor mit Hilfe der Bedienelemente nach Ihren Wünschen ein. Die Installation ist damit abgeschlossen. HINWEIS: Wenn an Ihrem Dell-Monitor Probleme auftreten, schlagen Sie bitte unter „Störungsbehebung“ auf Seite 3-15 bis 3-19 nach. Installation...
Die Netzanzeige leuchtet grün, wenn der Monitor eingeschaltet ist, und orange, wenn sich der Monitor im Energiesparmodus befindet. 7 Netzeingang AC IN Zur Stromversorgung des Monitors. 8 Blauer Videosignaleingang (HD15, angeschlossen) Zum Einspeisen von RGB-Videosignalen und SYNC-Signalen. Dell Modell UltraScan P990 Farbmonitor - Benutzerhandbuch...
Der dreh- und neigbare Ständer Mit dem dreh- und neigbaren Ständer können Sie den Monitor innerhalb der unten abgebildeten Winkel nach Bedarf einstellen. Wenn Sie den Monitor drehen oder neigen, stützen Sie ihn bitte mit beiden Händen unten ab. 90° 15°...
Drücken Sie die Taste MENU, um das Hauptmenü MENU auf dem Monitor aufzurufen. MENU MENU ENDE BILDLAGE GRÖSSE GEOMETRIE ZOOM FARBE KONVERGENZ OSD POSITION OPTION BILDOPTIMIERUNG 80,0kHz/ 75Hz 1280 X 1024 Anzeige von Frequenzen und voreingestelltem Timing Dell Modell UltraScan P990 Farbmonitor - Benutzerhandbuch...
(HELLIGKEIT) m/M und Mit den Tasten (MENU) wählen Sie die gewünschte Funktion. BILDLAGE BILDLAGE Wählen Sie BILDLAGE, wenn Sie die Zentrierung des Bildes einstellen wollen. GRÖSSE GRÖSSE Wählen Sie GRÖSSE, wenn Sie die Höhe und Breite des Bildes einstellen wollen. GEOMETRIE GEOMETRIE Wählen Sie GEOMETRIE, wenn Sie die Bildrotation...
Seite 78
Farbtemperatur mit den Tasten 6 </, manuell regulieren. VARIABEL Wenn Sie in einem der GEM-Modi (GEM = Graphic FARBE Enhancement Mode) arbeiten, können Sie die Farbtemperatur auf einen Wert zwischen 11.000 K und 9.300 K feineinstellen. VARIABEL Dell Modell UltraScan P990 Farbmonitor - Benutzerhandbuch...
KONVERGENZ KONVERGENZ Wählen Sie KONVERGENZ, wenn Sie die Bildqualität einstellen wollen. Sie können die vertikale und die horizontale Konvergenz einstellen. Tabelle 3-2. Konvergenzeinstellungen Wählen Sie Eliminieren roter oder blauer horizontaler H KONVERGENZ Farbverschiebungen Eliminieren roter oder blauer vertikaler V KONVERGENZ Farbverschiebungen OSD POSITION OSD POSITION...
Moiré ist eine natürliche Interferenz, die weiche, wellenförmige Linien auf dem Bildschirm verursacht. Diese Linien können durch die Interferenz zwischen dem Muster des Bildes auf dem Bildschirm und dem Phosphor-Pitch-Muster des Monitors verursacht werden. Beispiel für den Moiré-Effekt 3-10 Dell Modell UltraScan P990 Farbmonitor - Benutzerhandbuch...
Seite 81
Diese Option steht nur dann zur Verfügung, wenn die Moiré-Korrekturfunktion eingeschaltet ist. Rufen Sie das Menü MOIREKORREKTUR auf, um die OPTION Moiré-Korrekturfunktion einzuschalten. •AUS •EIN MOIREKORREKTUR Um den Grad der Moiré-Korrektur festzulegen, heben OPTION m/M die Option Sie zunächst mit den Tasten (MOIRE EINST) hervor.
Das Menü INFORMATION enthält Modellname, INFORMATION Seriennummer und Herstellungsdatum (Jahr und Woche) des Monitors. MODEL : P990 SER NO : 123456789ABCD MANUFACTURED : 1998-53 Nach 30 Sekunden wird die Bildschirmanzeige automatisch ausgeblendet. 3-12 Dell Modell UltraScan P990 Farbmonitor - Benutzerhandbuch...
Zurücksetzen der Einstellungen Bei diesem Monitor haben Sie drei Möglichkeiten, die Einstellungen zurückzusetzen. Drücken Sie die Taste RESET , um die Einstellungen zurückzusetzen. Zurücksetzen einer einzelnen Option Wählen Sie mit der Taste MENU die Option aus, die Sie zurücksetzen wollen, und drücken Sie die Taste RESET .
Störungsbehebung Anhand der folgenden Erläuterungen können Sie die Ursache eines Problems finden und versuchen, das Problem selbst zu beheben. Wenn auf dem Bildschirm dünne Linien (Dämpfungsdrähte) erscheinen Diese Linien sind bei einem Trinitron-Monitor normal und stellen keine Fehlfunktion dar. Es sind die Schatten der Dämpfungsdrähte, die die Streifenmaske stabilisieren.
Bereich liegen: REICH“ erscheint auf Horizontal: 30 – 96 kHz dem Bildschirm. Vertikal: 48 – 120 Hz Schlagen Sie in der Bedienungsanleitung zum Computer nach, und stellen Sie den Videofrequenzbereich ein. 3-16 Dell Modell UltraScan P990 Farbmonitor - Benutzerhandbuch...
Seite 87
Tabelle 3-6. Störungsbehebung (Fortsetzung) Symptom Überprüfen Sie bitte folgendes: • Es wird keine Führen Sie einen Monitorselbsttest durch (Funktion Meldung angezeigt, MONITOR SELF TEST) (siehe Seite 3-16). und die Anzeige 1 • Am HD15-Videoeingangsanschluß dürfen keine Stifte leuchtet grün oder verbogen oder eingedrückt sein.
Seite 88
Testen Sie den Monitor an einem anderen Computer in einem anderen Raum. • Das Bild flimmert. Schlagen Sie im Handbuch zu Ihrem Computer nach, und ändern Sie die Bildschirmauffrischungsrate, so daß sie diesem Monitor entspricht. 3-18 Dell Modell UltraScan P990 Farbmonitor - Benutzerhandbuch...
Seite 89
Tabelle 3-6. Störungsbehebung (Fortsetzung) Symptom Überprüfen Sie bitte folgendes: • Doppelbilder sind Verwenden Sie keine Bildschirmverlängerungskabel zu sehen. und/oder Videoschaltboxen, wenn dieses Phänomen auftritt. Zu lange Kabel oder eine störanfällige Verbindung können dieses Problem auslösen. • Wellenförmige oder Korrigieren Sie im Menü OPTION den Moiré-Effekt elliptische Moiré- (Seite 3-9).
Norwegen oder der Schweiz erwirbt, frei von Materialfehlern, Herstellungs- und Design- Mängeln sind, die die normale Verwendung des Geräts beeinträchtigen könnten. Produkte, für die rechtmäßig eine Garantieleistung in Anspruch genommen wird, können von DELL nach eigenem Ermessen und auf eigene Kosten repariert oder ausgetauscht werden.
DELL oder einer der Tochterfirmen von DELL, und weder DELL noch eine seiner Tochterfirmen übernimmt irgendeine Haftung für entgangenen Gewinn oder nicht zustande gekommene Vertragsabschlüsse oder für irgendwelche sonstige Neben- oder Folgeschäden, die aus Fahrlässigkeit, Vertragsbruch oder sonstigem entstehen.
Seite 93
Verbesserungen zu ermöglichen Wie funktioniert das Green Away-Programm? Wenn Sie Produkte entsorgen lassen wollen, wenden Sie sich bitte an den örtlichen Dell- Kundendienst. Dort erhalten Sie entsprechende Anweisungen. In der Koordinationsabteilung wird Ihre Anfrage bearbeitet, und es wird Ihnen mitgeteilt, wie Sie bei der Rückgabe der Produkte vorgehen müssen.
Seite 94
Wiederverwendung extrahiert, und der Rest wird in einer kontrollierten Verbrennungsanlage entsorgt. • Glasbestandteile werden sortiert und der Bleiglasherstellung oder der Wiederverwendung in Glashütten zugeführt. • • Die Schattenmaske und die Eisenbestandteile werden zur Wiederverwendung an den Metallhand 0 0den 3-24 Dell Model UltraScan P990 Farbmonitor - Benutzerhandbuch...
Seite 95
Tabelle A-1. Green Away-Sammelstellen Land Telefon Adresse Belgien 02 481 91 00 R Frazier Ltd. Plantijnweg 15 4104 BC Culemborg, Niederlande Dänemark +46-8-5900 5151 WMI Sellbergs AB Box 1294 S-171 25 Solna, Schweden Finnland +46-8-5900 5181 WMI Sellbergs AB Box 1294 S-171 25 Solna, Schweden Norddeutschland 0130-86-12 51...
Rahmen der YMARK2000-Testreihe* der National Software Testing Laboratories (NSTL) formell und erfolgreich getestet. Das Nichtbestehen des YMARK2000- Tests fällt unter die Garantieerklärung von Dell für das Produkt, mit Ausnahme der üblichen Haftungsbegrenzung**. Die komplette Garantieerklärung von Dell finden Sie in der Dokumentation zu dem Produkt.
Dokument enthalten sind. Die Dell Computer Corporation und die Tochterfirmen von Dell übernehmen keine Haftung für direkte, indirekte, spezielle, Neben- oder Folgeschäden, die auf Fehler oder Auslassungen in diesem Dokument zurückgehen, auch wenn Dell oder die Tochterfirmen von Dell von der Möglichkeit solcher Schäden in Kenntnis gesetzt wurde(n).
Seite 98
3-28 Dell Model UltraScan P990 Farbmonitor - Benutzerhandbuch...
Seite 99
En este documento pueden emplearse otras marcas y nombres comerciales para aludir a las entidades responsables de la marca o el nombre o sus productos. Dell Computer Corporation niega cualquier interés en la propiedad de marcas u nombres comerciales que no sean las suyas propias.
Seite 101
Contenido Introducciones ........4-1 Instrucciones de seguridad ..........4-1 Mantenimiento .
Seite 102
Noruega y Suiza............4-21 Declaración de preparación para el año 2000 de los productos de hardware de Dell . . .4-22 Apendice.
Introducciones Instrucciones de seguridad • Evite la acumulación interna de calor permitiendo una circulación de aire adecuada. No coloque el monitor sobre superficies (moquetas, mantas, etc.) o cerca de materiales (cortinas, telas) que puedan tapar los orificios de ventilación. • No instale el monitor cerca de fuentes de calor como radiadores o conductos de aire, ni en lugares expuestos a la luz solar directa, polvo excesivo, vibraciones mecánicas o golpes.
Por ello, mantenga los equipos de grabación magnética y las cintas y discos alejados de este monitor. La toma de corriente debe instalarse cerca del equipo y ser fácilmente accesible. Monitor en color Dell modelo UltraScan P990; Guía del usuario...
Encienda el monitor y su ordenador. Ajuste los controles del usuario de acuerdo con sus preferencias. La instalación está finalizada. NOTA: Si tiene problemas con su monitor Dell, consulte la sección “Solución de proble- mas” de la páginas 4-15 a 4-19. Instalación...
7 Conector AC IN Suministra alimentación de CA al monitor. 8 Conector de entrada azul para señal de vídeo (HD15) Recibe señales de vídeo RGB (rojo, verde, azul) y señales de sincronización. Monitor en color Dell modelo UltraScan P990; Guía del usuario...
Soporte basculante-giratorio Este monitor se puede ajustar a los ángulos indicados en la ilustración. Para girar el moni- tor en sentido horizontal o vertical, sujételo con ambas manos por su parte inferior. 90° 15° 90° 5° Ajuste del brillo y el contraste (BRILLO) m/M o 6 (CONTRASTE) </,.
(por ejemplo, un comando de MS-DOS). Introducción al sistema OSD (On Screen Dis- play, indicación en pantalla) Desplazamiento por el menú Pulse el botón MENU para mostrar el menú principal en la pantalla. Monitor en color Dell modelo UltraScan P990; Guía del usuario...
Seite 109
m/M y el botón Utilice los botones (BRILLO) MENU para seleccionar la función deseada. CENTRADO CENTRADO Seleccione el menú CENTRADO para ajustar el cen- trado de la imagen. TAMAÑO TAMAÑO Seleccione el menú TAMAÑO para ajustar el tamaño vertical y horizontal de la imagen. GEOMETRIA GEOMETRIA Seleccione el menú...
Seite 110
VARIABLE Si se utiliza uno de los modos GEM (mejora de grá- COLOR ficos), es posible ajustar la temperatura de color con una precisión de 11.000K a 9.300K. VARIABLE Monitor en color Dell modelo UltraScan P990; Guía del usuario...
Seite 111
CONVERGENCIA CONVERGENCIA Seleccione el menú CONVERGENCIA para ajustar la calidad de la imagen. Se puede ajustar la conver- gencia vertical y horizontal. Tabla 3-2. Ajustes de convergencia Seleccione Para eliminar las sombras de color rojas y azules horizontales H CONVERGENCIA eliminar las sombras de color rojas y azules verticales V CONVERGENCIA POSICION DEL OSD...
Puede aparecer debido a interferencias entre el patrón de la imagen de la pantalla y la densidad de puntos de fósforo del monitor. Ejemplo de efecto muaré 4-10 Monitor en color Dell modelo UltraScan P990; Guía del usuario...
Seite 113
Para poder ajustar esta opción, es necesario activar la opción ELIMINAR MUARE. Seleccione el menú ELIMINAR MUARE para activar el OPCION ajuste del efecto muaré. •NO •SI ELIMINAR MUARE Para ajustar el grado de cancelación de efecto muaré, OPCION m/M para resaltar la pulse primero los botones opción (AJUSTE MUARE).
MODEL : P990 SER NO : 123456789ABCD MANUFACTURED : 1998-53 La indicación en pantalla desaparece automáticamente transcurridos 30 segundos. 4-12 Monitor en color Dell modelo UltraScan P990; Guía del usuario...
Restauración de los ajustes Este monitor tiene los tres métodos de restauración indicados a continuación. Utilice el botón RESTAURACION para restaurar los ajustes. Restauración del un elemento de ajuste específico Utilice el botón MENU para seleccionar el elemento de ajuste que quiera restaurar y después pulse el botón RESTAURACION.
Solución de problemas Esta sección puede ayudarle a encontrar la causa de un problema para que pueda resolv- erlo por sí mismo. Si aparecen líneas finas en la pantalla (hilos amortiguadores) Las líneas que puede estar viendo en la pantalla son normales en un monitor Trinitron y no son un fallo.
DEL RANGO DE Horizontal: 30 - 96 kHz AJUSTE” Vertical: 48 - 120 Hz Consulte el manual de instrucciones de su ordenador para ajustar el intervalo de frecuencia de vídeo. 4-16 Monitor en color Dell modelo UltraScan P990; Guía del usuario...
Seite 119
Tabla 3-6. Solución de problemas (continuación) Síntoma Comprobación • Si no aparece ningún Ejecute la función MONITOR SELF TEST (página 4-16). mensaje y el indica- • Asegúrese de que ninguna de las patillas del conector dor 1 está verde o de entrada de vídeo HD15 están dobladas o hundidas.
Seite 120
Evite el uso de cables alargadores y/o cajas conmuta- fantasma doras de vídeo. Este síntoma puede deberse a la longitud excesiva de los cables o a una conexión débil. 4-18 Monitor en color Dell modelo UltraScan P990; Guía del usuario...
Seite 121
Tabla 3-6. Solución de problemas (continuación) Síntoma Comprobación • Se observa una Cancele el efecto muaré mediante la indicación en pan- trama ondulada o talla OPCION (página 4-9). elíptica (efecto El efecto muaré puede modificarse en función del orde- muaré) nador conectado.
Humedad ambiental........ En funcionamiento 10% a 80% (sin con- densación) Desconectado 5% a 90% (sin con- densación) Las especificaciones y el diseño están sujetas a cambio sin previo aviso. 4-20 Monitor en color Dell modelo UltraScan P990; Guía del usuario...
DELL o un distribuidor DELL autorizado en la Unión Europea, Noruega o Suiza, están libres de defectos en materiales, mano de obra y diseño en lo que afecta al uso normal, por un periodo de un año desde la fecha de adquisición orig-...
YMARK2000 cumplen los requisitos de BSI-DISC PD 2000-1. **Salvo esta aclaración de la garantía de Dell para el hardware con el logotipo de NSTL, se renuncia a todas las demás garantías, condiciones y recursos, ya sean expresos o implíci- tos, relativos a la preparación para el año 2000.
Para obtener información adicional sobre la preparación para el año 2000 de los productos de hardware de Dell, consulte el sitio Web sobre el año 2000 de Dell, en http:// www.dell.com/year2000, o póngase en contacto con un representante del servicio de atención al cliente de Dell en su zona.
Seite 127
Репродукция настоящего документа в какой ни на есть форме строго запрещается без писеьменного согласия фирмы Делл Компьютер Корпорейшн. В тексте настоящего документа указаны следующие торговые марки: знаки Dell и DELL являются зарегистрированными торговыми марками фирмы Делл Компьютер корпорейшн; Microsoft, Windows и Windows NT являются торговыми марками фирмы Майкрософт Корпорейшн: VESA является...
Seite 129
СОДЕЛЖАНИЕ Введение ................5-1 Предосторожности ...................5-1 Технический уход ....................5-1 Система прямого включения (Plug and play) ..........5-1 Предупреждение по подключению питания ..........5-2 Наладка ................5-3 Эксплуатаци монитора ............ 5-4 Детали и органы управления ................5-4 Наклонение-поворачивание монитора ............5-5 Регулирование яркости и контрастности ............5-5 Автоматическое...
Seite 130
Устранение неисправностей ........5-15 При появлении тонких полосок на экране (демпферные проволоки) ..5-15 Сообщения на экране ..................5-15 Автотестирование монитора ................ 5-16 Устранение неисправностей ................. 5-16 Техническая характеристика ........5-20 Г арантии................5-21 Одногодичная гарантия фирмы-изготовителя “Делл” к конечным потребителям...
Предосторожности • Выделяемое внутри тепло надо ликвидировать, обеспечивая достаточную циркуляцию воздуха в мониторе. Аппарат не следует расположить на таких местах, где возможно заглушить вентиляционные отверстия аппарата, например на тканях (коврах, одеялах и т.п.) или вблизи покрытий (занавесов, драпировок). • Аппарат не следует разместить вблизи источников тепла, таких как радиаторы, вентканалы...
• Настоящий монитор работает по стандарту DDC2B. Такими особенностями могут пользоваться одни комрьютеры, обеспечивающие одни и те же принципы и работающие на одинаковом или высшем уровне. • В случае, если компьютер не может обеспечить соответствующие принипы, можно использовать этот монитор с компьютером. Вероятно, нужно вручную определить...
Детали и органы управления ВŁ æ Ł ВŁ æ Ł 1 Кнопка (RESET) (стр. 5-13) Предназначается для восстановления установленных на заводе уставок. Кнопка “Авт. изменение размера и центровка” p (стр. 5-6) Предназначается для автоматического регулирования размера и положения изображения. 3 Кнопка ¨ (ЯРКОСТЬ) ./> (стр. 5-5) Предназначаются...
центрирование изображения Изображение может легко отрегулироваться путем нажатия кнопки ASC (авт. изменение размера и центровка), чтобы оно показывалось на полном экране. Нажать кнопку ASC Изображение показывается на полном экране автоматически. П Ł Ł : Д я Œ Łя æя ºя Æ...
Seite 137
Выбрав меню ЦЕНТРОВКА, выполнить центрирование изображения. РАЗМЕР РА3МЕР Выбрав меню РАЗМЕР, отрегулировать размер изображения по горизонтали и вертикали. ГЕОМЕТРИЯ ГЕОМЕТРИЯ Выбрав меню ГЕОМЕТРИЯ, отрегулировать поворот и форму изображения. ВРАЩЕНИЕ Таблица 3-1. Г еометрическое регулирование Выбрав Выполняется ВРАЩЕНИЕ Поворачивание изображение ПОДУШКА Расширение...
Seite 138
уменьшить изображение. МАСШТАБ ЦВЕТ. ТЕМПЕРАТУРА ЦВЕТ.ТЕМПЕРАТУРА Выбрав меню ЦВЕТ. ТЕМПЕРАТУРА, отрегулировать цветовую температуру. Это позволяет цветовое согласование между монитором и принтером. 9300K Выбор режима ПЛАВНО позволяет точную ЦВЕТ.ТЕМПЕРАТУРА настройку цветовой температуры в пределах от 9.300К до 5.000К, а применение кнопок >...
качество изображения. Динамическое сведение лучей осуществляется по горизонтали и вертикали. Таблица 3-2. Регулировка сведения лучей Выбрав Выполняется H СВЕДЕНИЕ Устранение темного участка изображения красного или синего цвета по горизонтали V СВЕДЕНИЕ Устранение темного участка изображения красного или синего цвета по вертикали ПОЛОЖЕНИЕ...
Seite 140
своей яркости после нескольких лет эксплуатации. Функция ВОССТАНОВИТЬ ЦВЕТ позволяет восстановить цвет до первоначально установленного на заводе уровня. Для восстановления изображения, сначала, нажимая кнопку ¨ ./>, выбрать режим (ВОССТАНОВИТЬ ЦВЕТ). Затем нажать кнопку >/, расположенную справа. Белый прямоугольник показывается в центре экрана, пока...
GRAPHIC ENHANCEMENT MODE (GEM) (Режим графического улучшения) Выбрав меню Graphic Enhancement, переключить характеристики изображения. GEM разделяется на 3 вида режима видения; STANDARD MODE (стандартный режим) предназначается для крупноформатной таблицы, обработки текста и других прикладных программных средств текстового назначения. PRESENTATION MODE (режим представления) является выгодным для программ...
Исползуя кнопку RESET, возвратить уставки в исходное состояние. Возврат отдельного вида уставок Используя кнопку MENU, выбрать уставку, подлежащую возврату в исходное состояние, затем нажать кнопку RESET. Это может выполниться во время регулирования уставки. Возврат всех видов уставок для текущего входного сигнала...
определенным VESA, ENERGY STAR и NUTEK. Если монитор подключен к компьютеру или графической видеоплате, соответствующей техническим требованиям DPMS (Система управления дисплейной мощностью), потребляемая мощность монитора будет уменьшаться автоматически в трех ступенях, как показано ниже. Таблица 3-4. Система управления дисплейной мощностью (DPMS) Режим...
Seite 145
Настоящий раздел может помогать Вам выяснить причину проблемы, чтобы Вы сами могли решить ее. При появлении тонких полосок на экране (демпферные проволоки) Линии, видимые на экране, являются нормальным для монитора модели Trinitron и не являются признаком неисправности. Они - тени от демпферных проволок, стабилизирующих...
испытать монитор с помощью функции автотестирования, как указано ниже. Отключив монитор от сети, отсоединить видеокабель от компьютерной системы. Включив монитор, подождать пять секунд. Сообщение “МОНИТОР ИСПРАВЕН-ПРОВЕРЬТЕ КАБЕЛЬ” появится с цветными полосами. Сообщение и испытательная таблица отображаются 30 секунд. Если монитор отображает белый, красный, зеленый и голубой цвета, то монитор работает...
Seite 147
Если никакого • Привести в действие функцию автотестирования сообщения не монитора: (см. стр. 5-16) отображается и • Убедиться, что никакой из штырьков соединителя индикатор u горит ввода видеосигналов HD15 не изогнут или в зеленом цвете впресован. или мигает в оранжевом цвете Изображение...
Seite 148
Кромки • Произвести геомерическое регулирование (см. стр. изображения 5-7). изогнуты Белые линии имеют • Отрегулировать СВЕДЕНИЕ лучей с помощью красные или экранного дисплея (см. стр. 5-9). голубые тени на кромках Изображение • Отрегулировать контрастность и яркость (стр. 5-5). нечетка • Произвести...
Seite 149
Изображение • Ссылаясь на руководство к компьютерной системе, мерцает изменить уставки частоты регенерации отображения, чтобы они могли отвечать способностям монитора. Повторное • Приостановить применение удлительных изображение видеокабелей и/или видеосигнальных проходных появится коробок. Избыточная длина кабеля или ненадежное соединение может вызвать данную неисправность. Волнистая...
Seite 150
Таблица 3-7. Технические характеристики Кинескоп ............. Шаг решеток апертуры 0,25 мм, размер по диагонали 19 дюймов, угол отклонения лучей 90 градусов. Тип люминофора ........Р22 Коэффициент пропускания ...... Прибл. 39% Экран ............с неотражающим (AR)/антистатичес-ким (AS) покрытием Размер наблюдаемого изображения ..Прибл.365 х 274 мм (шир./выс.) х...
Seite 151
конечным потребителям в Европейском союзе, Норвегии и Швейцарии Г арантия Фирма ДЕЛЛ Продуктс, Рагеен Индастриал Естат, Лимерик, Ирландия (DELL), в соответствии с приведенными ниже условиями предоставляет своим покупателем гарантию, что аппаратная продукция, выпущенная под фирменной маркой и закупленная конечными покупаелями у фирмы “ДЕЛЛ” или ее уполномоченных...
Seite 152
кроме ясно изложенных выше, и данная Г арантия предоставляется вместо всех других видов гарантии в полной мере, позволяемой законом. В отсутствии применяемого законодательства, настоящая Г арантия является единственным и исключательным средством защиты покпателя от фирмы ДЕЛЛ или любых ее филиальных компании, и ни фирма ДЕЛЛ, ни ее филиальные компании не несут ответственности...
Seite 153
если правильно загружены соответствующие средства обеспечения наращивания BIOS. Для продукции марки Делл, не имеющей возможность наращивания системы BIOS, фирма Делл предоставляет, для удобства покупателей, “Dell® Program Patch” - сервисную программу, предназначенную для оказания помощи покупателям в распоряжении к 2000 г.
Seite 155
Pozostałe znaki firmowe i nazwy firm mogą być używane w niniejszym dokumencie w celu odwoływania się zarówno do jednostek mających prawo do tych znaków i nazw, jak i do ich produktów. Dell Computer Corporation zrzeka się jakichkolwiek praw do innych niż własne znaków firmowych i nazw firm.
Seite 157
Spis treści Wprowadzenie ................6-1 Środki ostrożności ......................6-1 Konserwacja ........................6-1 Podłączanie i użytkowanie ....................6-1 Ostrzeżenia odnośnie podłączenia zasilania ..............6-2 Nastawianie ................6-3 Korzystanie z monitora.............. 6-4 Części i regulatory ......................6-4 Użycie połączenia obrotowego nachylenia ..............6-5 Regulacje jasności i kontrastu ..................
Seite 158
Samo-testowanie się monitora ..................6-16 W razie trudności ......................6-16 Dane techniczne............... 6-20 Gwarancje ................. 6-21 Jednoroczna gwarancja Dell Manufacturer dla użytkownika z Unii Europejskiej, Norwegii i Szwajcarii......................... 6-21 Oświadczenie usług odnośnie sprzętu komputerowego produkcji DELL w związku z rokiem 2000 ......................... 6-22 Załącznik ..................
Środki ostrożności • Zapobiegaj przegrzaniu wnętrza przez zapewnienie dostatecznego przepływu powietrza. Nie umieszczaj monitora na powierzchniach (dywany, koce, i t.p.) lub w pobliżu materiałów (zasłony, draperie), które mogłyby blokować otwory wentylacyjne. • Nie instaluj monitora w pobliżu źródeł ciepła, takich jak grzejniki i przewody wentylacyjne lub w miejscach narażonych na bezpośrednie nasłonecznienie, silne zapylenie lub wstrząsy i wibracje mechaniczne.
zasadami i działające na tym samym wysokim poziomie mogą korzystać z tej funkcji. • Nawet jeżeli Twój komputer nie kieruje się odnośnymi zasadami, możesz korzystać z komputera i monitora. Może zaistnieć potrzeba ręcznego określenia właściwej rozdzielczości w komputerze. • Najwyższa rozdzielczość wybrana automatycznie może nie dawać najlepszego efektu.
Nastawianie Upewnij się, że system komputera i monitor są wyłączone i podłącz niebieski kabel sygnalu wideo do niebieskiego gniazdka wyjścia wideo w komputerze.
Niniejszy monitor może być regulowany w zakresie poniżej pokazanych kątów. Aby przechylić monitor pionowo lub poziomo uchwyć go na dole obiema rękami. 90 ° 15 ° 90 ° 5 ° Regulacje jasności i kontrastu Naciskaj przyciski ¨ (LUMINACJA) ./> lub > (KONTRAST) ?//. Pojawi się...
obrazu Możesz łatwo wyregulować obraz aby wypełniał ekran przez naciśnięcie przycisku ASC (automatyczne kalibrowanie i wypośrodkowanie). Naciskanie przycisku ASC Obraz automatycznie wypełni ekran. UWAGA: Niniejsza funkcja pomyślana jest do użytku z Windows lub podobnym programem użytkujacym grafikę interfejs posiadajacym pełnoekranowy obraz. Może ona nie dzialłać...
Seite 165
Wybierz menu CENTER aby wypośrodkować obraz. SIZE SIZE Wybierz menu SIZE aby wyregulować poziome i pionowe wymiary obrazu. GEOMETRY GEOMETRY Wybierz menu GEOMETRY aby wyregulować obrót i ksztalt obrazu. ROTATION Tabela 3-1 Regulacja geometrii Wybierz ROTATION Obrócić obraz PINCUSHION Rozszerzyć lub zwęzić boki obrazu PIN BALANCE Przemieścić...
Seite 166
ZOOM COLOR COLOR Wybierz menu COLOR aby wyragulować temperaturę barwy obrazu. Możesz korzystać z tej funkcji dla dopasowania koloru drukarki i monitora. 9300K Możesz także subtelnie regulować temperaturę barwy COLOR w zakresie od 9.300K do 5.000K wybierąjąc VARIABLE i używając przycisków > ?// do ręcznej regulacji temperatury barwy.
Seite 167
pionową i poziomą. Tabela 3-2 Regulacja zbieżności Wybierz H CONVERGENCE wyeliminować poziome czerwone lub niebieskie cienie V CONVERGENCE wyeliminować pionowe czerwone lub niebieskie cienie OSD POSITION OSD POSITION Wybierz menu OSD POSITION aby zmienić miejsce OSD. OPTION OPTION Wybierz menu OPTION aby wyregulować opcje monitora.
Seite 168
wielu latach użytkowania. Funkcja powrotu koloru umożliwia wspomaganie przywracania koloru do poziomu fabrycznie zaprogramowanego. Aby poprawić obraz, najpierw naciskaj przyciski ¨ ./> OPTION aby wybrać (COLOR RETURN). Następnie naciśnij prawy przycisk >/. Podczas restauracji obrazu (około dwie sekundy) biały trójkąt pojawi się w centrum ekranu. COLOR RETURN UWAGA: Przed korzystaniem z tej funkcji monitor musi OPTION...
Seite 169
Wybierz menu CANCEL MOIRE aby włączyć regulację OPTION mory. •OFF •ON CANCEL MOIRE Aby wyregulować stopień likwidowania mory, najpierw OPTION naciskaj przyciski ¨ ./> aby wyświetlić (MOIRE ADJUST). Następnie naciskaj przyciski > ?// aby wyregulować stopień likwidacji mory dopóki efekt mory jest minimalny.
Wybierz MENU rodzaju graficznego wspomagania STANDARD MODE aby zmienic charakterystykę wizualną obrazu. PRESENTATION MODE GRAPHICS/VIDEO MODE Sątrzy rodzaje projekcyjne GEM; Rodzaj standardowy STANDARD MODE jest idealny dla pracy na arkuszach kalkulacjnych, edycji tekstów i innych programów zorientowanych na teksty. Rodzaj pokazowy PRESENTATION MODE jest użyteczny podczas pokazów programów wymagąjacych żywych kolorów.
Niniejszy monitor wyposażony jest w następujace trzy metody ponownego nastawiania. Użyj przycisku ZEROWANIE aby dokonać ponownych nastawień. Ponowne nastawianie pojedyńczego wyregulowania Użyj przycisku MENU aby wybrać ustawienie, które chcesz zmienić i naciśnij przycisk ZEROWANIE. Możesz tego dokonać podczas regulacji danego ustawienia. Ponowne nastawianie wszystkich danych wyregulowania dla aktualnego sygnału wejściowego Naciśnij przycisk ZEROWANIE gdy na ekranie nie jest wyświetlone menu.
Niniejszy monitor odpowiada wskazówkom dotyczącym oszczędzania energii ustalonym przez VESA, ENERGY STAR i NUTEK. Jeżeli monitor podłączony jest do komputera lub karty graficznej wideo spełniających wymogi DPMS (System umiejetnego posługiwania się mocą wyświetlacza), to monitor automatycznie zmniejsza konsumpcję mocy w poniższych trzech przypadkach.
Niniejszy rozdział może pomóc Ci odnaleźć przyczynę problemu i będziesz mógł rozwiązać go samodzielnie. Jeżeli na ekranie pojawią się cienkie linie (druty tłumiące) Linie, które możesz zauważyć na ekranie są naturalne dla monitora Trinitron i nie są wynikiem wadliwego funkcjonowania. Są to cienie drutów tłumiących, które stabilizują ruszt apertury.
BRAK OBRAZU : jeżeli monitor nie wyświetla obrazu, sprawdź monitor używając opisanej poniżej funkcji SELF TEST. Wyłącz monitor i odłącz kabel wideo od zestawu komputera. Włącz monitor i odczekaj pięć sekund. Wraz z wyświetleniem wzoru kolorów pojawi się komunikat “THE MONITOR IS WORKING- CHECK SIGNAL CABLE (Monitor pracuje, sprawdź...
Seite 175
Obraz jest • Sprawdź instrukcję obsługi karty wideo pod kątem przemieszany prawidłowego nastawienia monitora. • Sprawdź niniejszą instrukcję i upewnij się czy monitor odpowiada rodzajowi grafiki i częstotliwośi, na której usiłujesz działać. Nawet jeśli częstotliwość zawiera się w odpowiednim zakresie, niektóre karty wideo mogą mieć...
Seite 176
Obraz jest • Wyreguluj kontrast i jasność (strona 6-5). postrzępiony • Odmagnetyzuj monitor używając OPTION OSD (strona 6-9). Jeżeli umieścisz w pobliżu monitora urządzenia wytwarzające pole magnetyczne takie jak megafon, albo zmienisz kierunek monitora, kolor może być nierównomierny. Funkcja odmagnetyzowania odmagnetyzowuje metalową...
Seite 177
Dwie cienkie • Te druty tłumiące stabilizują pionowe pasma rusztu poziome linie (druty) apertury (strona 6-15). Ruszt apertury przepuszcza sę widoczne więcej światła do ekranu dając monitorowi Trinitron więcej koloru i jasności. Po włączeniu • Gdy włączone zostaje zasilanie, uaktywnia się cykl zasilania automatycznego odmagnetyzowania.
Tabela 3-7 Dane techniczne Kineskop ........... Elementarny punkt rusztu apertury 0,25 mm, 19 cali mierzone po przekątnej, 90 stopni odchylenia Rodzaj luminoforu ........P22 Szybkość przesyłania ........ Ok. 39% Czoło ............Warstwa przeciw odblaskowa (AR)/ antystatyczna (AS) Rozmiar widzialnego obrazu ..... Ok. 365 × 274 mm (szer./wys.) 18,0" Użytkowe wymiary dorazu Rozdzielczość...
Zgłaszanie napraw gwarancyjnych W Unii Europejskiej, Norwegii i Szwajcarii należy zgłaszać naprawę gwarancyjną kontaktując się bezpośrednio z punktem sprzedaży lub z dowolnym biurem DELL w okresie ważności gwarancji. Użytkownik musi zawsze dostarczyć dowód zakupu, zawierający nazwę i adres sprzedawcy, datę zakupu, model i numer fabryczny urządzenia, nazwę i adres kupującego oraz opis objawów uszkodzenia wraz z konfiguracją...
Niniejsza gwarancja będzie dla użytkownika jedynym i wyłącznym sposobem uzyskania odszkodowania od DELL lub któregoś z jego organów, i ani DELL ani żaden z jego organów nie ponosi odpowiedzialności za utratę korzyści lub obienic albo też innych niebezbośrednich lub wynikających z konsekwencji strat spowodowanych zaniedbaniem, naruszeniem kontraktu itp.
2000 roku. Dodatkowe informacje Po dodatkowe informacje o dostosowaniu sprzętu komputerowego produkcji DELL do roku 2000 odwołaj się do adresu Web Dell w internecie Dell´s Year 2000 Web http:// www.dell.com/year2000 lub skontaktuj się z punktem serwisowym reprezentującym Dell w Twojej okolicy.
VESA DPMS power management capabilities. When used with a computer equipped with VESA DPMS, the monitor is NERGY ® complient. ® As an Partner, Dell Computer Corporation has deter- NERGY ® mined that this product meets the guidelines for NERGY energy efficiency.
Seite 184
(2) Video inputs: The input signal amplitude must not exceed the specified level. CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Dell Model UltraScan P990 Color Monitor User’s Guide...
Seite 188
A Notice About Shielded Cables: Use only shielded cables for connecting peripherals to any Dell device to reduce the possibility of interference with radio and television recep- tion. Using shielded cables ensures that you maintain FCC Class B certification of this product.
Class B ITE MOC Notice (South Korea Only) Class B Device Please note that this device has been approved for nonbusiness purposes and may be used in any environment, including residential areas. EMI ( B ) Polish Center for Testing and Certification Notice The equipment should draw power from a socket with an attached protection circuit (a three-prong socket).
Exporter: Dell Computer Corporation One Dell Way Round Rock, Texas 78682 U.S.A. Importer: Dell Computer de México, S.A. de C.V. Rio Lerma No. 302 - 4° Piso Col. Cuauhtemoc 16500 México, D.F . Ship to: Dell Computer de México, S.A. de C.V. al Cuidado de Kuehne & Nagel de México S.
Seite 192
Grundfarbe Blau nicht auf dunklem Hintergrund zu verwenden (schiechte Erkennbarkelt. Augenbelastung bei zu geringem Zeicheenkontrast). wird folgende Einstellung des Grafik-Controllers und Monitors empfohlen. • Vertlkalfrequenz : 70 Hz oder hoher. • Ohne Zellensprung. A-10 Dell Model UltraScan P990 Color Monitor User’s Guide...
Seite 196
Printed in the U.S.A. Imprimé aux Etats-Unis. Gedruckt in den USA Impreso en EE.UU. Drukowano w U.S.A P/N:2221D 3221D 3-865-242-13 4221D www.dell.com...
