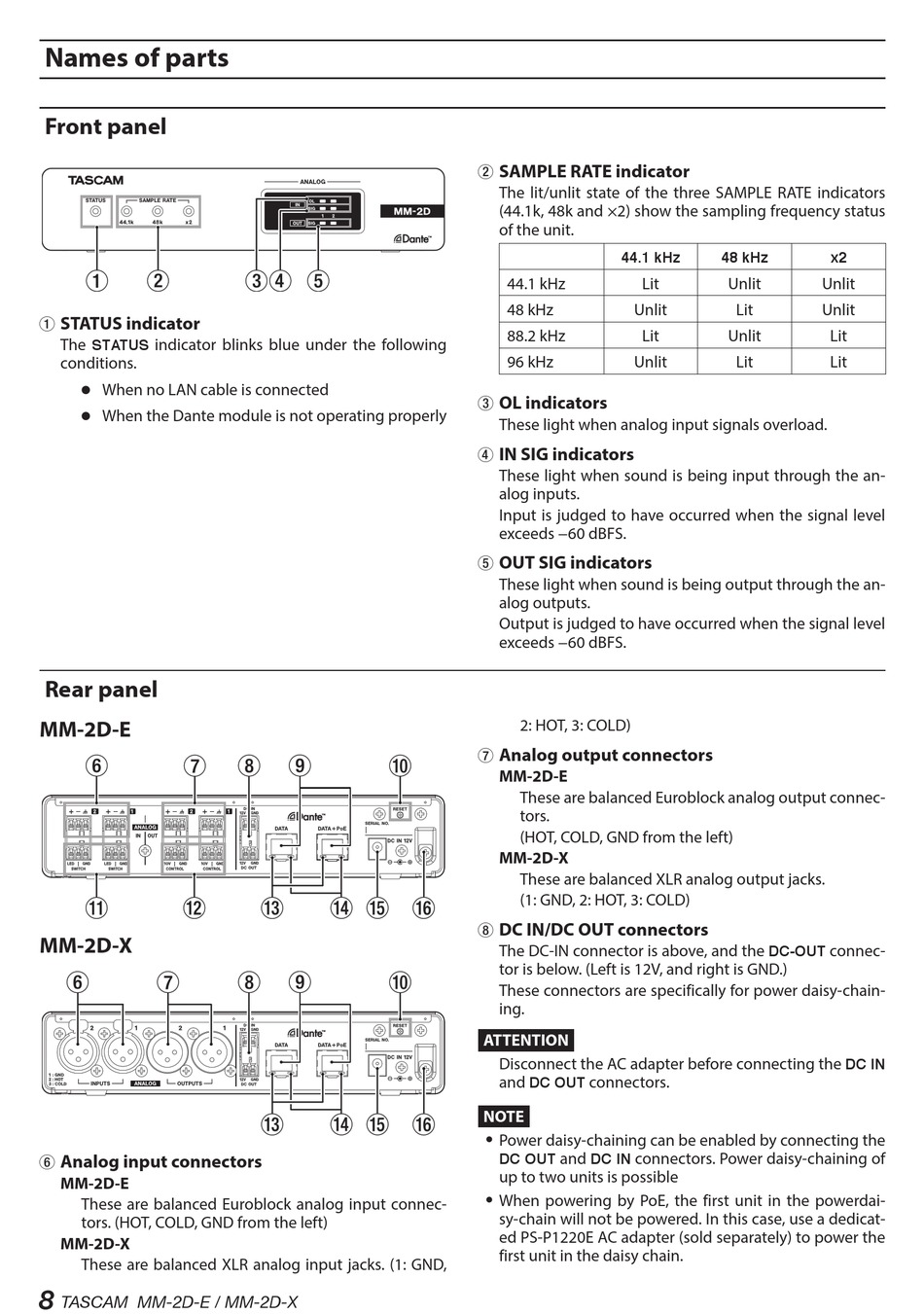

Names of parts

Front panel

STATUS indicator
1
STATUS
The indicator blinks blue under the following
conditions.
o When no LAN cable is connected
o When the Dante module is not operating properly

Rear panel

MM-2D-E
MM-2D-X
Analog input connectors
6
MM-2D-E
These are balanced Euroblock analog input connec-
tors. (HOT, COLD, GND from the left)
MM-2D-X
These are balanced XLR analog input jacks. (1: GND,
8
TASCAM MM-2D-E / MM-2D-X
SAMPLE RATE indicator
2
The lit/unlit state of the three SAMPLE RATE indicators
(44.1k, 48k and ×2) show the sampling frequency status
of the unit.
44.1 kHz
44.1 kHz Lit
48 kHz Unlit
88.2 kHz Lit
96 kHz Unlit
OL indicators
3
These light when analog input signals overload.
IN SIG indicators
4
These light when sound is being input through the an-
alog inputs.
Input is judged to have occurred when the signal level
exceeds −60 dBFS.
OUT SIG indicators
5
These light when sound is being output through the an-
alog outputs.
Output is judged to have occurred when the signal level
exceeds −60 dBFS.
2: HOT, 3: COLD)
Analog output connectors
7
MM-2D-E
These are balanced Euroblock analog output connec-
tors.
(HOT, COLD, GND from the left)
MM-2D-X
These are balanced XLR analog output jacks.
(1: GND, 2: HOT, 3: COLD)
DC IN/DC OUT connectors
8
The DC-IN connector is above, and the
tor is below. (Left is 12V, and right is GND.)
These connectors are specifically for power daisy-chain-
ing.
ATTENTION
Disconnect the AC adapter before connecting the
DC OUT
and connectors.
NOTE
i Power daisy-chaining can be enabled by connecting the
DC OUT DC IN
and connectors. Power daisy-chaining of
up to two units is possible
i When powering by PoE, the first unit in the powerdai-
sy-chain will not be powered. In this case, use a dedicat-
ed PS-P1220E AC adapter (sold separately) to power the
first unit in the daisy chain.
48 kHz x2
Unlit Unlit
Lit Unlit
Unlit Lit
Lit Lit
DC-OUT
connec-
DC IN
