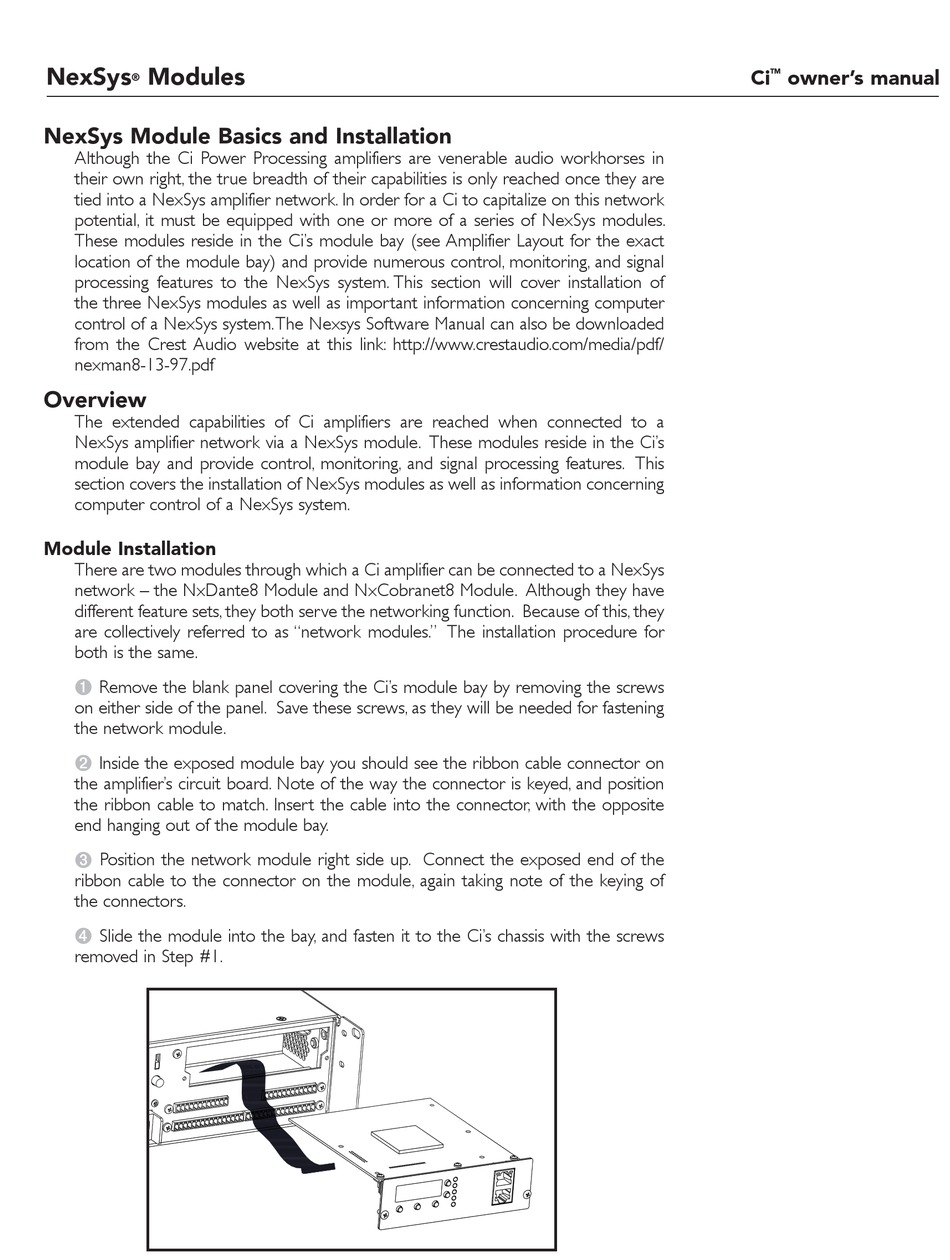

NexSys Modules
®
NexSys Module Basics and Installation
Although the Ci Power Processing amplifiers are venerable audio workhorses in
their own right, the true breadth of their capabilities is only reached once they are
tied into a NexSys amplifier network. In order for a Ci to capitalize on this network
potential, it must be equipped with one or more of a series of NexSys modules.
These modules reside in the Ci's module bay (see Amplifier Layout for the exact
location of the module bay) and provide numerous control, monitoring, and signal
processing features to the NexSys system. This section will cover installation of
the three NexSys modules as well as important information concerning computer
control of a NexSys system. The Nexsys Software Manual can also be downloaded
from the Crest Audio website at this link: http://www.crestaudio.com/media/pdf/
nexman8-13-97.pdf
Overview
The extended capabilities of Ci amplifiers are reached when connected to a
NexSys amplifier network via a NexSys module. These modules reside in the Ci's
module bay and provide control, monitoring, and signal processing features. This
section covers the installation of NexSys modules as well as information concerning
computer control of a NexSys system.
Module Installation
There are two modules through which a Ci amplifier can be connected to a NexSys
network – the NxDante8 Module and NxCobranet8 Module. Although they have
different feature sets, they both serve the networking function. Because of this, they
are collectively referred to as "network modules. " The installation procedure for
both is the same.
1
Remove the blank panel covering the Ci's module bay by removing the screws
on either side of the panel. Save these screws, as they will be needed for fastening
the network module.
2
Inside the exposed module bay you should see the ribbon cable connector on
the amplifier's circuit board. Note of the way the connector is keyed, and position
the ribbon cable to match. Insert the cable into the connector, with the opposite
end hanging out of the module bay.
3
Position the network module right side up. Connect the exposed end of the
ribbon cable to the connector on the module, again taking note of the keying of
the connectors.
4
Slide the module into the bay, and fasten it to the Ci's chassis with the screws
removed in Step #1.
