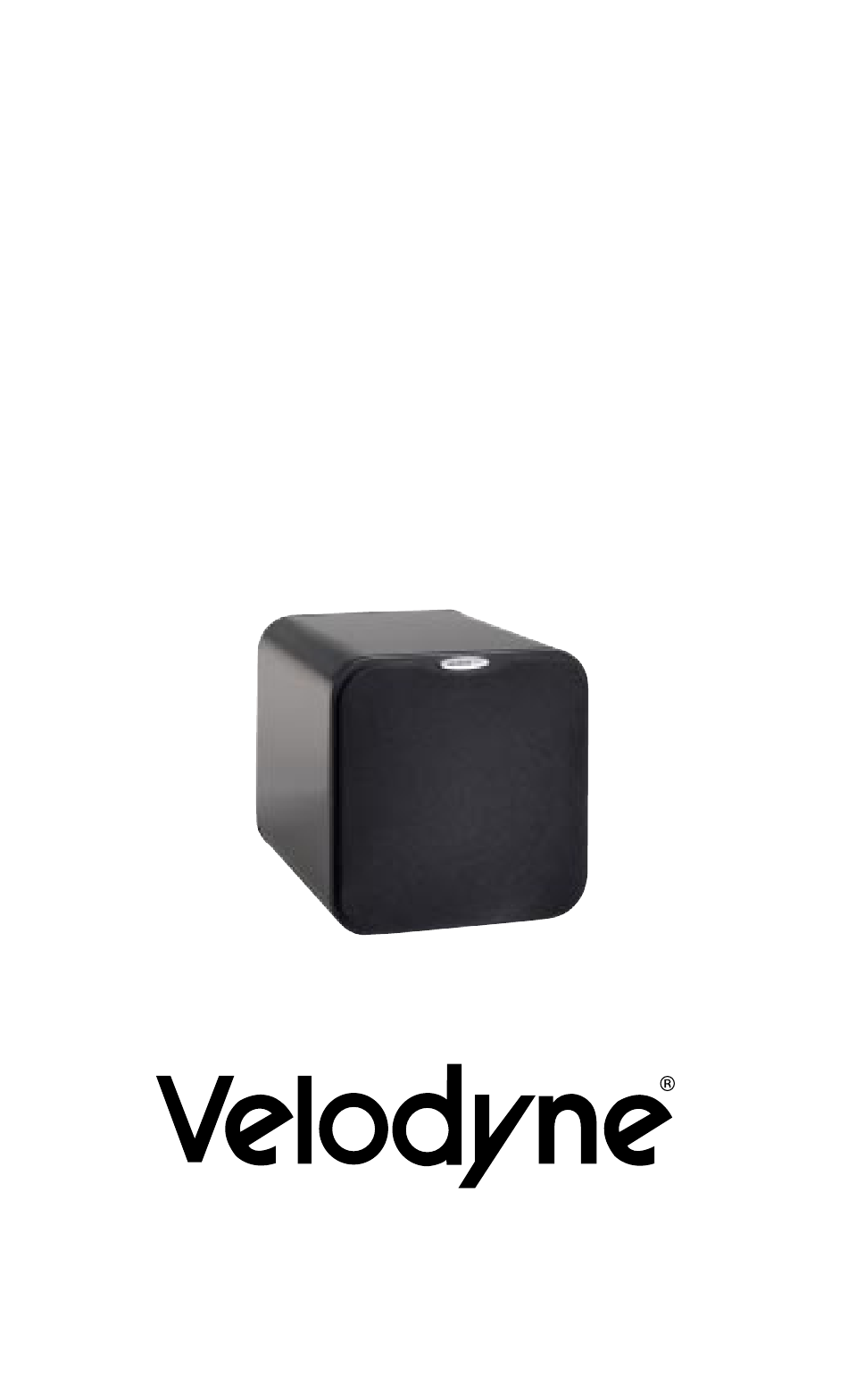

- Seite 1 SPL-800, SPL-1000, and SPL-1200 Series II Owner's Manual Home Theater Subwoofer...
-
Seite 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN Caution: To reduce the risk of electric shock, do not remove cover (or back). No user-serviceable parts inside. Refer servicing to qualified service personnel. The lighting flash with arrowhead symbol is intended to alert the user to the presence of uninsulated "dangerous voltage"... -
Seite 3: Wichtige Sicherheitshinweise
WICHTIGE SICHERHEITSHINWEISE VORSICHT GEFÄHRLICHE SPANNUNG NICHT ÖFFNEN Vorsicht: Zur Vermeidung von Gefahr durch elektrischen Schlag, Deckel (oder Rückwand) nicht abnehmen. Produkt enthält keine Anwenderteile. Reparatur und Wartung nur von qualifiziertem Fachpersonal vornehmen lassen. Das Blitzsymbol dient als Hinweis auf unisolierte „gefährliche Spannungen“ innerhalb des Gehäuses, deren Werte eine Berührungsgefahr für den Menschen darstellen können. -
Seite 4: Importantes Consignes De Securite
IMPORTANTES CONSIGNES DE SECURITE ATTENTION Risque d’électrocution Ne pas ouvrir Attention: Afin d’éviter tout risque d’électrocution, ne pas enlever le boitier (ou partie arrière de l’enceinte). Aucune pièce ne doit être manipulée par l’utilisateur. Pour tout entretien, vous référer à un personnel de service qualifié. - Seite 5 Congratulations! Congratulations on your purchase of a Velodyne subwoofer system. This system represents the state of the art in home audio reproduction and will provide you with years of listening pleasure when properly cared for. Read and follow this instruction manual to insure safe and proper system connection and operation.
-
Seite 6: Product Features
• Oversized spider for linearity at high excursion Prepare for Installation Your new Velodyne subwoofer provides for a number of installation options. Read all the installation information below in order to determine which installation option is best for your system. Remember to perform all installation procedures with system power turned off to prevent possible damage. - Seite 7 The worst location for a subwoofer is typically far away from any walls, and close to the center of your room. Avoid these locations when possible. When using a pair of Velodyne subwoofers in stereo, it is preferable to place each subwoofer by the satellite of the same channel.
-
Seite 8: Installation
Installation Inputs Your new subwoofer is equipped with speaker-level and line-level inputs. Use the LINE LEVEL jacks when connecting your subwoofer to a pre-amp, signal processor, line-level crossover, or receiver with pre-amp level outputs. The SPEAKER LEVEL jacks connect directly to the speaker outputs of any amplifier, integrated amplifier, or receiver. - Seite 9 Subwoofer outputs The Velodyne subwoofer is designed to operate using the full range audio signal for input when using the built-in crossover. Some processors/ receivers, have a "subwoofer out" jack that is internally filtered and designed to be used with a conventional amplifier and speaker.
- Seite 10 When the subwoofer is installed in this fashion, all of the low frequency information from your "LFE Out" or "Subwoofer Out" on the back of your receiver will pass into your Velodyne subwoofer. This connection is the most common connection method when using your subwoofer with a 5.1 receiver.
- Seite 11 CAUTION SERIAL # RISK OF ELECTRIC RISK OF ELECTRIC DO NOT OPEN DO NOT OPEN AVIS: AVIS: RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR VELODYNE ACOUSTICS, INC. Home Theater Receiver LFE Out continued. . .
- Seite 12 RISK OF ELECTRIC RISK OF ELECTRIC DO NOT OPEN DO NOT OPEN AVIS: AVIS: RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR VELODYNE ACOUSTICS, INC. AMPLIFIER MAIN INPUTS MAIN OUTPUTS PRE-AMP RIGHT LEFT LEFT RIGHT MAIN OUTPUTS...
-
Seite 13: Interconnect Cables
Speaker-level Connection Figure 3 shows an easy way to connect your Velodyne subwoofer directly to your receiver or integrated amplifier, if it lacks line-level outputs. You may also connect your satellites directly to your receiver or amplifier along with the subwoofer. Your receiver or amplifier will not notice the additional load of the suboofer due to the high input impedance. - Seite 14 SERIAL # RISK OF ELECTRIC RISK OF ELECTRIC DO NOT OPEN DO NOT OPEN AVIS: AVIS: RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR VELODYNE ACOUSTICS, INC. MAIN OUTPUTS (speaker-level) INTEGRATED AMP / RECEIVER continued. . .
-
Seite 15: Protection Circuitry
Care of Your Subwoofer Your Velodyne subwoofer does not require any regular maintenance. Normal dusting or cleaning of the surface for appearance purposes are all that is required. We suggest you avoid any harsh detergents or chemicals when cleaning the cabinet. -
Seite 16: Troubleshooting And Service
Troubleshooting and Service If you should experience a problem with the operation of your subwoofer, please check all of the following before seeking service. Following is a simple troubleshooting guide to assist you. Verify unit is plugged in, power outlet used is active, and supplying proper voltage. - Seite 17 SPECIFICATIONS SPL-800 Series II SPL-1000 Series II SPL-1200 Series II Cabinet (H,W,D) 10.5" x 10.25" x 12.75" x 12.25" x 15" x 14.5" x (incl. feet and grill) 12.5" 14.25" 16.25" Frequency Response 28Hz - 120Hz 24Hz - 120Hz 22Hz - 120Hz (+/-3 dB) Harmonic Distortion <5% (typical)
- Seite 18 * NOTE: Please complete and return your warranty card within ten (10) days ON-LINE Register It's faster..and easier ..www.velodyne.com Thank You for Purchasing an SPL Series II Velodyne Subwoofer! Other Velodyne Subwoofer Products: Digital Drive 1812 Digital Drive Series DD-10 DD-12 Deco System DD-15 THX Ultra 2...
- Seite 19 NOTES...
- Seite 20 " Not only was the little Velodyne the best small sub I've ever used, it was one of the very best subs I've used. " -John Potis SoundStage!, April 2002 "The SPL-1200 was able to hit an impressively deep 16 Hz."...
