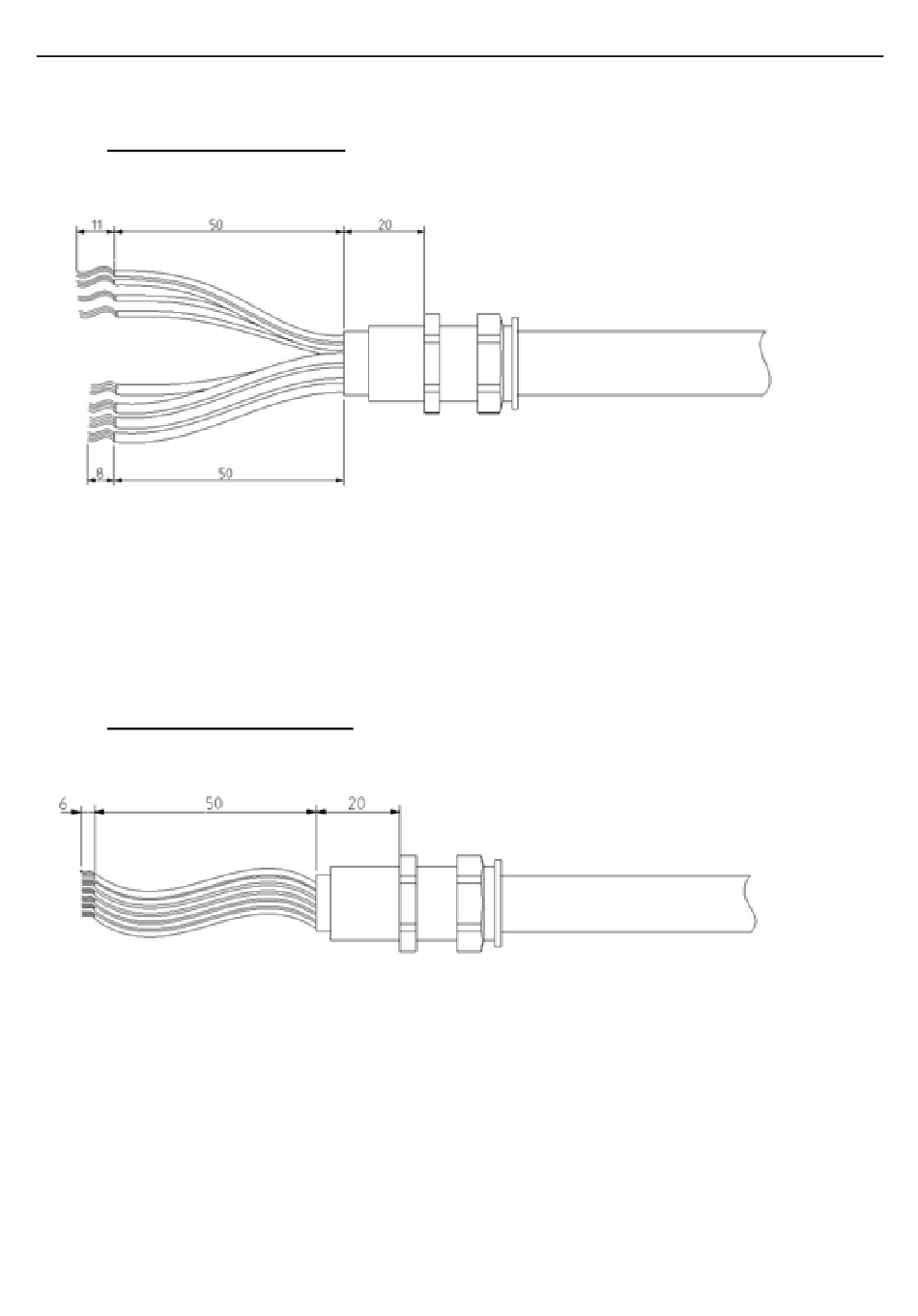

3.5.5 Power cable preparation
Ground and U,V,W phases: Conductor cross-section 0.2mm² to 6mm²
TH+BR wires: Conductor cross-section 0.14mm² to 2.5mm²
* Note: The dimensions indicated in the diagram are given for guidance purposes.
For the "shielding continuity" option, 1 or 2 extra wires with terminal lugs.
3.5.6 Sensor cable preparation
S1, S2, S3, S4, R1, R2 wires: Conductor cross-section 0.14mm² to 1.5mm²
* Note: The dimensions indicated in the diagram are given for guidance purposes.
For the "shielding continuity" option, 1 extra wire with terminal lug.
