4 TOPS INSTALLATION
4.11 The TOPS frame is secured to the machine
chassis with five bolts each side.
1 x M10 Bolt
labelled C in diagram 4.10
4 x M12 Bolts
labelled A and B in diagram 4.9,
labelled D in diagram 4.10, and

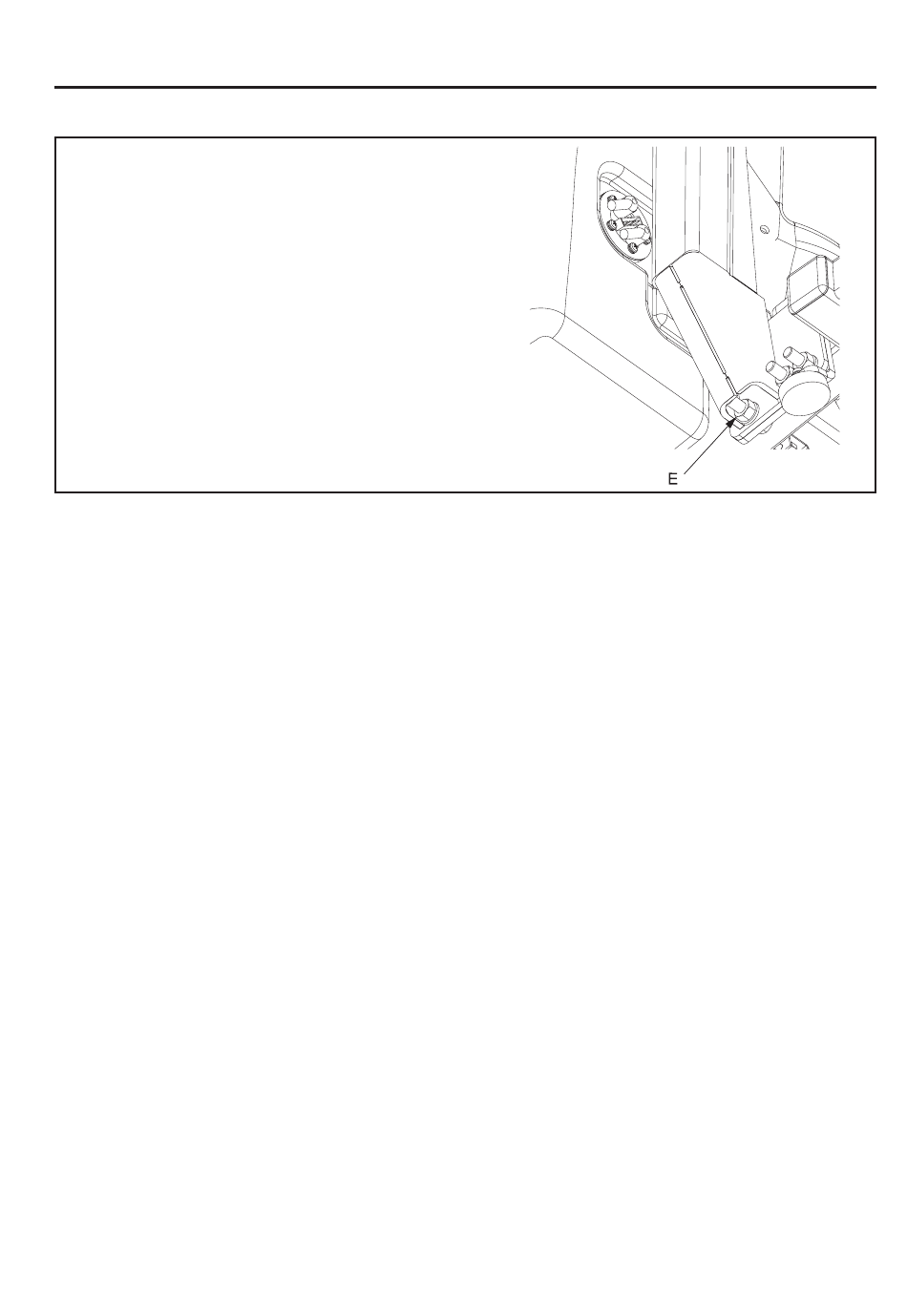

labelled E in diagram 4.11
All bolts must be fitted, and fully tightened to
the torque figures specified.
JACOBSEN AR3/TR3
TOPS FITTING INSTRUCTIONS
