4 TOPS INSTALLATION
4.9 ASSEMBLY OF TOPS FRAME KIT
(4137350)
Care should be taken when handling heavy
weights. When handling such items
assistance may be required, or suitable lifting
equipment should be used.

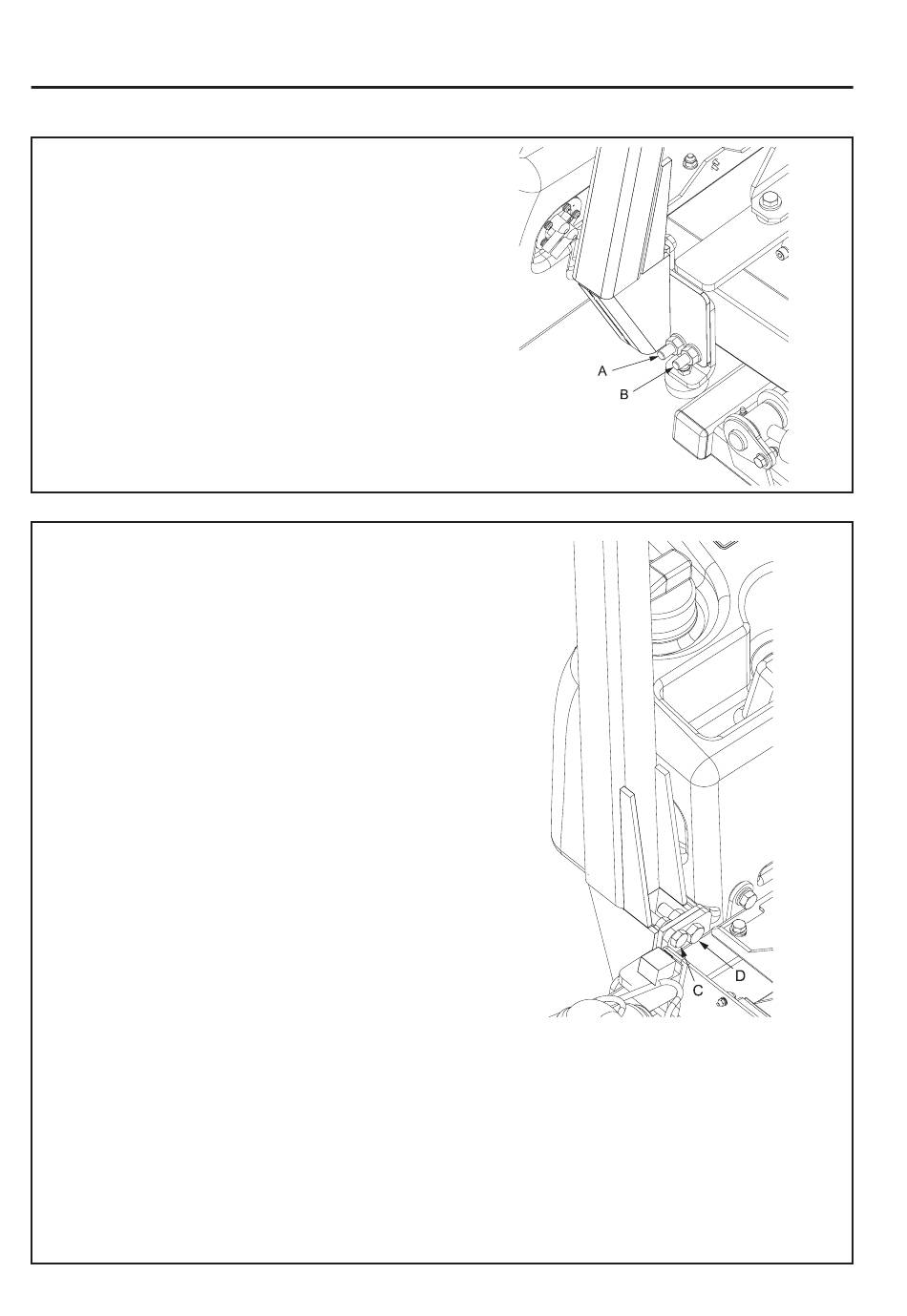

Fit TOPS frame into position, and secure with
relevant handware.
Bolt 'A' should be fitted and fully tightened
before bolt 'B' is assembled.
The bolts should be tightened to the following
torques: M10 = 46 Nm, M12 = 79 Nm
4.10 All bolts should be assembled so that the bolt
heads face the centreline of the machine: as
shown in the diagrams.
GB-8
JACOBSEN AR3/TR3
TOPS FITTING INSTRUCTIONS
