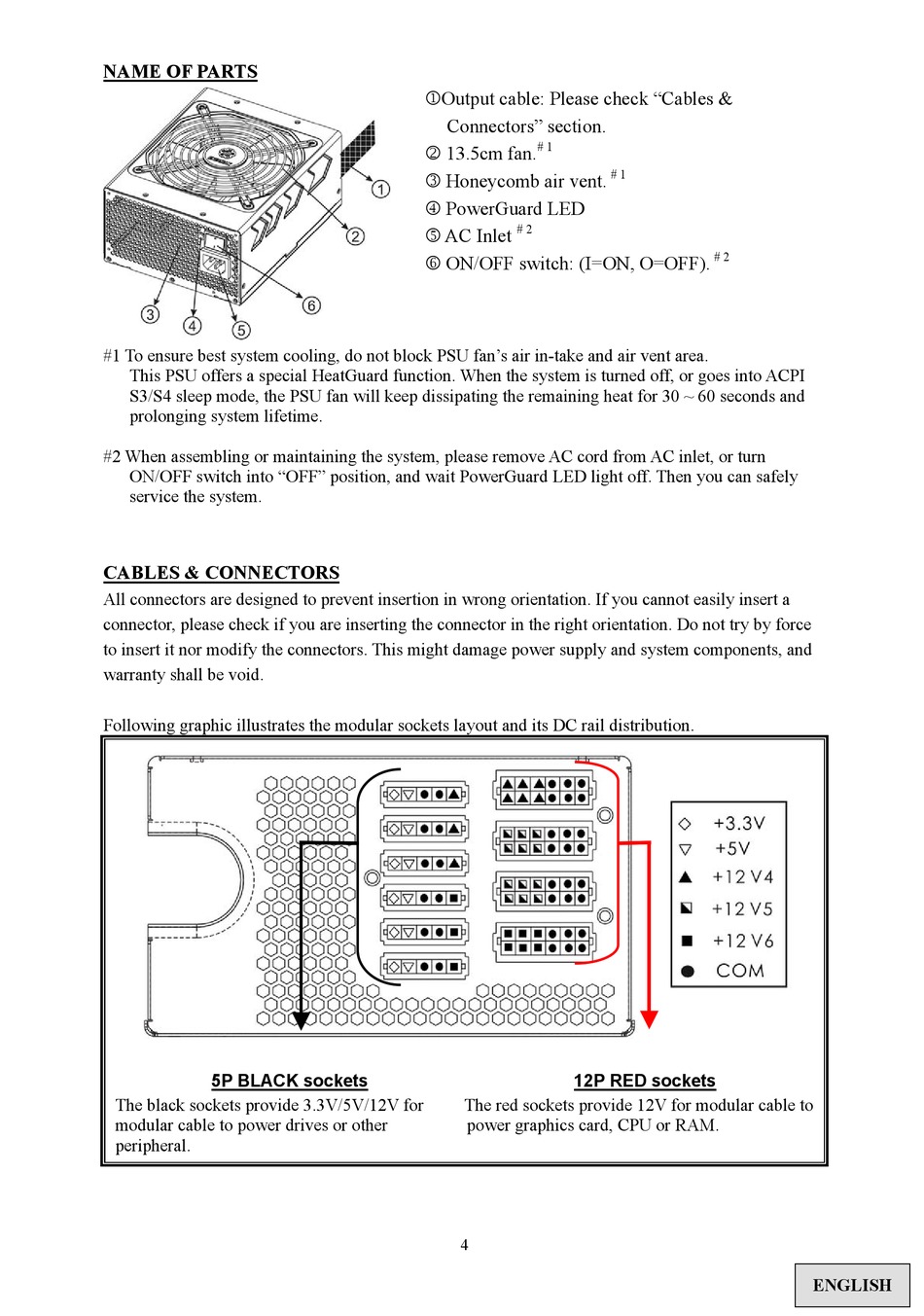

NAME OF PARTS
#1 To ensure best system cooling, do not block PSU fan's air in-take and air vent area.
This PSU offers a special HeatGuard function. When the system is turned off, or goes into ACPI
S3/S4 sleep mode, the PSU fan will keep dissipating the remaining heat for 30 ~ 60 seconds and
prolonging system lifetime.
#2 When assembling or maintaining the system, please remove AC cord from AC inlet, or turn
ON/OFF switch into "OFF" position, and wait PowerGuard LED light off. Then you can safely
service the system.
CABLES & CONNECTORS
All connectors are designed to prevent insertion in wrong orientation. If you cannot easily insert a
connector, please check if you are inserting the connector in the right orientation. Do not try by force
to insert it nor modify the connectors. This might damage power supply and system components, and
warranty shall be void.
Following graphic illustrates the modular sockets layout and its DC rail distribution.
5P BLACK sockets
The black sockets provide 3.3V/5V/12V for
modular cable to power drives or other
peripheral.
1Output cable: Please check "Cables &
Connectors" section.
# 1
2 13.5cm fan.
3 Honeycomb air vent.
4 PowerGuard LED
# 2
5 AC Inlet
6 ON/OFF switch: (I=ON, O=OFF).
12P RED sockets
The red sockets provide 12V for modular cable to
power graphics card, CPU or RAM.
4
