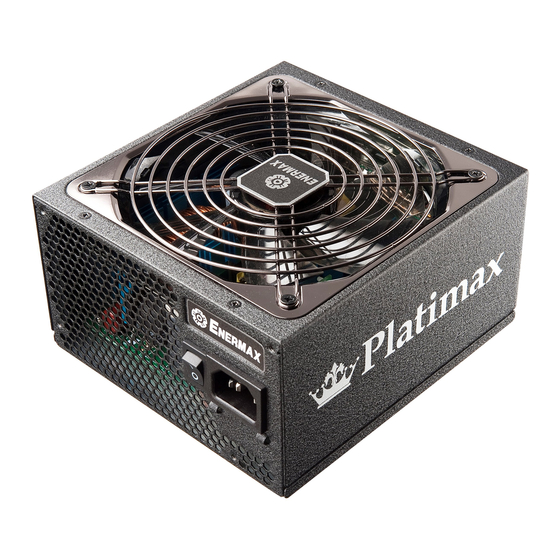

ENERMAX Platimax Serie Benutzerhandbuch
Vorschau ausblenden Andere Handbücher für Platimax Serie:

Werbung

ENERMAX Platimax Serie Benutzerhandbuch

Werbung

Inhaltsverzeichnis
loading

Inhaltszusammenfassung für ENERMAX Platimax Serie

  • Seite 1 Блоки питания Enermax ATX 1350W Platimax (EPM1350EWT): Инструкция пользователя...
  • Seite 2 INDEX Precaution Notice ........................ 1 ENERMAX Platimax series Power Supply Specification ..........2 ENGLISH..........................3 DEUTSCH .......................... 7 ESPAÑOL .......................... 11 FRANCAIS ........................15 ITALIANO ........................19 ........................23 ✂ ✁ ✁ ✄ ☎ ✆ POLSKI ..........................27 ..........................31 ✺...
  • Seite 3: Precaution Notice

    This ENERMAX Technology Corporation product is warranted to be free from defects in material and workmanship for a period of five (5) years from the date of purchase. ENERMAX Technology Corporation agrees to repair or replace the product, at its own option and at no...
  • Seite 4 ENERMAX Platimax Series Power Supply Specification EPM1500EGT EPM1350EWT EPM1200EWT 110-240VAC, 50-60Hz 100-240VAC, 50-60Hz 220-240VAC, 50-60Hz AC Input Voltage (Maximum range: (Maximum range: 100-264VAC, 47-63Hz) 90-264VAC, 47-63Hz) 8-7A 14-6.5A 14-5.5A AC Input Current DC Output Rated Combined Rated Combined Rated Combined 3.3V...
  • Seite 5: Name Of Parts

    ON/OFF switch into “OFF” position. Then you can safely service the system. #3 AC cord can get loose in many ways. The ENERMAX CordGuard lock can fix your AC cord tightly to the PSU, so that it will not be easily detached and avoid shut-downs of your PC. The following...
  • Seite 6 AC cord. PSU. 1. CordGuard is for AC cords supplied with ENERMAX CordGuard-compatible PSUs. Other AC cords may be incompatible. 2. When assembling or maintaining the system, please remove AC cord from AC inlet, or turn I/O switch into “O”...
  • Seite 7 MB’s manual for details. MODULAR CABLES SUPPLIED Use ONLY genuine ENERMAX modular cables coming with ENERMAX PSU. Third party cables might not be compatible and might cause damage to your PSU and/or system, and use of third party cable shall void PSU warranty.
  • Seite 8 ENERMAX headquarter service center. ©2012 ENERMAX Technology Corporation. All rights reserved. Specifications are subject to change without prior notice. Actual product and accessories may differ from illustrations. Omissions and printing errors excepted. Content of delivery might differ in different countries or areas.
  • Seite 9: Detailbeschreibung

    Benutzerhandbuch Sehr geehrte Kundin, sehr geehrter Kunde, Vielen Dank, dass Sie sich für dieses ENERMAX-Netzteil (PSU) entschieden haben! Bitte lesen Sie sich dieses Handbuch sorgfältig durch und folgen Sie bitte seinen Anweisungen bevor Sie das Netzteil installieren! Wir möchten Sie darauf hinweisen, dass moderne Systeme sehr empfindlich geworden sind und genau definierte Bedingungen benötigen, um optimal ohne Ausfälle arbeiten zu können.
  • Seite 10: Kabel & Anschlüsse

    #2 Entfernen Sie immer das Stromkabel vom Netzteil, schalten Sie den I/O-Schalter auf „O“ und warten Sie, bevor Sie am System arbeiten. #3 Der Netzstecker kann sich auf unterschiedliche Weise lösen. Der ENERMAX-CordGuard fixiert den Stecker am Netzteil. Er verhindert unfreiwillige Systemabstürze durch einen versehentlich gezogenen Netzstecker.
  • Seite 11 Sie bitte dem Benutzerhandbuch des Mainboards. MODULARE KABEL (im Lieferumfang enthalten) Benutzen Sie nur original ENERMAX modulare Kabel für dieses PSU. Andere Kabel könnten das PSU und Ihr System beschädigen und den Garantieverlust zur Folge haben! EMC014-G: 2 x 6+2P (8P) PCI-E 2.0 Modulares Kabel für 1 oder 2 Performance PCI Express Grafikkarten,...
  • Seite 12: Verbinden & Entfernen Von Modularen Kabeln

    Kontaktieren Sie bitte den technischen Support des Herstellers der Komponente, von der Sie glauben, dass Sie die Fehlfunktion verursacht (z.B. MB, Grafikkarte oder ENERMAX-Netzteil). Falls Sie Fragen haben oder Support benötigen, wenden Sie sich bitte an Ihren Händler, Ihre nächste ENERMAX-Niederlassung, deren Agenten oder an das ENERMAX Headquarter Service Center! Schnelle Hilfe bei allen Fragen zu ENERMAX-Produkten erhalten Sie auch online im internationalen ENERMAX-Support-Forum: http://forum.enermax.com.
  • Seite 13: Manual Del Usuario

    Manual Del Usuario Estimado cliente: Muchas gracias por comprar nuestra fuente ENERMAX . Le recomendamos que se lea bien este manual para el usuario. Queremos recordarle que los ordenadores actuales son muy vulnerables y necesitan condiciones especiales para funcionar sin problemas. Para evitar dichos fallos y maximizar la duración del sistema, le recomendamos que se asegure de: Su ordenador no se encuentre al lado de la calefacción ni otro objeto que irradie calor...
  • Seite 14 Poner un enchufe en un zócalo tiene que ser fácil. Si no puede poner fácilmente el cableado modular original de ENERMAX en un zócalo, por favor, revise si está insertado en la dirección correcta. Nunca lo intente utilizando fuerza ni cambie los pines del voltaje. Eso puede dañar la fuente e invalidar la garantía.
  • Seite 15 CABLES MODULARES (contenido) Por favor utilice solamente cables modulares originales de ENERMAX. Otros cables podrían dañar el sistema e invalidar la garantía. EMC014-G: 2 x 6+2P (8P) PCI-E 2.0 Cable modular para una o dos tarjetas gráficas Performance PCI...
  • Seite 16 FUNCIÓNES DE PROTECCIÓN Y SEGURIDAD La fuente ENERMAX tiene varias funciones de protección y seguridad. En caso de mal funcionamiento se detendrá para proteger todo el sistema de daños. En la mayoría de casos eso será causado por un mal funcionamiento de componentes o mala utilización.
  • Seite 17: Manuel D'utilisateur

    #2 Lors de l’assemblage ou de la maintenance de votre système, veuillez débrancher le câble d’alimentation ou bien positionner le bouton sur OFF. Ainsi vous pourrez travailler en toute sécurité. #3 Le câble d’alimentation peut se décrocher très facilement. Le système ENERMAX CordGuard permet de fixer le câble d’alimentation sur l’alimentation, rendant la déconnexion quasi impossible.
  • Seite 18 Refermer le système CordGuard pour bloquer le câble d’alimentation. 1. CordGuard est compatible avec le câble A.C. fourni avec l’alimentation ENERMAX fonction CordGuard. Les autres câbles A.C. sont susceptibles d'être incompatibles. 2. Lorsque vous réalisez des manipulations du système, veuillez retirer le câble d’alimentation de la prise murale ou mettre l’alimentation en position ‘O’.
  • Seite 19 CABLES MODULAIRES FOURNIS Utiliser uniquement les câbles modulaires certifiés par ENERMAX et fournis avec l’alimentation. Les autres câbles pourraient ne pas être compatibles et pourraient endommager votre alimentation, votre système, et annuler la garantie.
  • Seite 20 7. Contacter le service technique de chaque composant qui vous semble être la cause de ce problème. Si vous avez des questions, merci de contacter ENERMAX ou l’un de ses agents à travers le monde. Les informations contenues dans ce document peuvent être soumises à des modifications sans préavis.
  • Seite 21: Manuale Dell'utente

    Manuale dell’Utente Cari clienti, Vi siamo grati per avere scelto questo ALIMENTATORE ENERMAX ! Prima di installarlo, leggete attentamente questo manuale e seguite le sue istruzioni. Desideriamo attirare la vostra attenzione sul fatto che un computer richiede condizioni di lavoro molto specifiche per dare il meglio in termini di prestazioni, e per non guastarsi.
  • Seite 22 Alimentatori Enermax Compatibili.L’installazione su prodotti di altra marca potrebbe dare luogo a problemi. Quando si eseguono operazioni di installazione o manutenzione del sistema si deve SEMPRE rimuovere il cavo di alimentazione AC dal relativo connettore CAVI E CONNETTORI Tutti i connettori sono stati progettati per impedirne l’inserimento errato.
  • Seite 23 CAVI MODULARI IN DOTAZIONE Usare SOLO cavi modulari ENERMAX forniti in dotazione con l’alimentatore ENERMAX. Cavi di terzi potrebbero non essere compatibili e potrebbero causare un danno al vostro PSU e/o al sistema: l’uso di cavi di terze parti renderà...
  • Seite 24: Accensione Del Sistema

    Accendere il PSU girando l’interruttore ON/OFF su “ON”, e il sistema è pronto. PROTEZIONE, SICUREZZA E AFFIDABILITÀ Il PSU ENERMAX è dotato di molte protezioni. In caso di situazioni anomale, l’alimentatore viene spento automaticamente per evitare pericoli verso le persone o componenti del PC. La protezione viene generalmente attivata dal malfunzionamento di un componente o dalla negligenza dell’utente.
  • Seite 25 ) ENERMAX . EPM1500EGT 1700W / 2400VA EPM1350EWT 1500W / 2100VA EPM1200EWT 1400W / 2000VA « ». « .»: (I= CordGuard. HeatGuard. ACPI S3/S4 30-60 « .» « .» . ENERMAX-CordGuard...
  • Seite 26 ☞ ✆ ✑ ✛ ✆ ✑ ✞ ✁ ✁ ✆ ✡ ✒ ☛ ✆ ✑ ✡ ✌ ☛ ✄ ✠ ✟ ✡ ✟ ✚ ☞ ✞ ✁ ✄ ☎ ✞ ✌ ENERMAX. ☛ ✆ ✖ ☞ ✡ ✟ ☛ ✁ ✟ ✝ ✖ ✟ ✁ ✟...
  • Seite 27 (8P) PCI Express, / 6P PCI Express PCI-E, PCI-E. SATA SATA/SAS. 4P Molex IDE/SCSI/SAS SATA SATA Molex. PCI-E. E ENERMAX, ENERMAX. EMC014-G: 2 x 6+2 (8P) PCI-E 2.0 Express, PCI-E. EMC018-G: 8P & 4P +12 CPU/RAM EMC019-G: 4 SATA SATA/SAS, HDD.
  • Seite 28 EMC021-G: 2xSATA 2x4 Molex (IDE/SCSI) SATA/SAS/ IDE/SCSI, ODD HDD. EMC022:24P MB & 8P CPU : www.enermax.com ENERMAX . oe / 12- oe / 12- (24- ) 4- Molex- « .» « .» – ENERMAX «O», «I» ENERMAX, ENERMAX.
  • Seite 29: Instrukcja Obs Ugi

    Instrukcja obs ugi Szanowni Klienci, Dzi ✁ k ujemy za zakup tego zasilacza ENERMAX (PSU)! Prosz ✁ przeczyta ✂ uwa ✄ n ie ten podr ✁ c znik i wykona ✂ zamieszczone w nim instrukcje przed instalacj ☎ zasilacza. Chcieliby ✆ m y zwróci ✂ Pa ✝ s twa uwag ✁ na fakt, ✄ e komputer wymaga pracy w bardzo specyficznych warunkach.
  • Seite 30 ✄ ✄ 1. Blokada CordGuard jest przeznaczona do przewodów pr d u zmiennego dostarczonych z zasilaczami ✟ zgodnymi z ENERMAX CordGuard. Inne przewody pr d u zmiennego mog nie by zgodne. ✟ ✟ ✠...
  • Seite 31 ✍ ☛ ✌ ☞ ✍ stabilne i bezpieczne zasilanie systemu. DOSTARCZONE KABLE MODULARNE Nale y wa C ZNIE oryginalnych kabli modularnych ENERMAX, dostarczanych z ✎ ✎ ✏ ✑ ✠ zasilaczami ENERMAX. Kable firm trzecich mog nie by zgodne i mog...
  • Seite 32: Uruchamianie Systemu

    ✙ ✚ ✛ ✜ ✢ ✚ ✢ fili / przedstawicielem ENERMAX albo z siedzib ó wn centrum serwisowego ENERMAX. ✢ ✢ ✣ ✢ Bezpo r edni pomóc techniczn n a uzyska równie online na forum wsparcia technicznego: http://forum.enermax.com.
  • Seite 33 ✹ ✍ ✟ ✁ ✂ ✟ ✄ ✰ ☎ ✆ ✝ ✞ ✠ ✝ ✡ ☛ ☞ ✌ ✎ ✏ ✑ ✖ ✫ ✒ ✖ ✓ ✦ ✔ ✕ ✗ ✘ ✙ ✸ ✚ ✛ ✜ ✒ ✢ ✣ ✤ ✥ ✄...
  • Seite 34 ENERMAX ATX / BTX PC EEB / CEB...
  • Seite 35 6+2P (8P) PCI Express / 6P PCI Express PCI Express SATA SATA/SAS 4P Molex IDE/SCSI/SAS ENERMAX ✁ ✟ ✂ ✄ ☎ ✙ ✸ ✆ ✝ ✞ ✣ ✠ ✡ ☛ ☞ ✌ ✍ ✎ ✏ ✑ ✑ ✒ ✓ ✑ ✑ ✝ ✔...
  • Seite 36 ENERMAX Step1 ✟ ✥ ✁ ✂ ☛ ✄ ☎ ✄ ✆ ✝ ✞ ☞ ✠ ✡ ✌ ✍ ✸ ✩ ✧ ✤ ✎ ✏ ✑ ✒ ✓ ✼ ✔ ✕ ✖ ✗ ✘ ✙ ✚ ☞ ✠ ✡ ✌ ✛...
  • Seite 37 ✾ ✁ ✂ ✶ ✽ ✄ ☎ ✸ ✼ ‘O’ ✹ ✆ ✝ ✞ ✟ ✠ ✿ ✡ ☛ ✹ ❅ ☞ ✌ ✲ ✍ ✷ ✎ ✏ ✑ ✳ ✒ ✓ ✔ ✦ ✆ ✕ ❄ ✌ ✮ ✖ ✗ ✓...
  • Seite 39 EMC014-G: 2 x 8(6+2) PCI-E 2.0 PCI-E PCI Ex press EMC018-G: 8P & 4P +12V CPU/RAM CPU 4 , RAM 16 EMC019-G: 4 x SATA ✼ ✼ ✢ SATA/SAS ✭ ✁ EMC020-G: 4 x 4 Molex (IDE/SCSI) 1 x FDD IDE/SCSI/SAS ✭...
  • Seite 40 EMC022 :24P MB & 8P CPU ENERMAX TEL: 080-719-2581 ( FAX: (02)715-2525 support@compumart.co.kr www.cm-korea.co.kr Family site : www.enermax.co.kr mania.enermax.co.kr www.compumart.co.kr...
  • Seite 41 ENERMAX ( UPS ( W/VA EPM1500EGT 1700W / 2400VA EPM1350EWT 1500W / 2100VA EPM1200EWT 1400W / 2000VA ON/OFF O= ) CordGuard HeatGuard ACPI S3/S4 ✙ ✺ 30~60 ✵ ✟ ✁ ▲ ✆ ✂ ❑ ✳ ✄ ☎ ✝ ✞ ✠ ✡ ☛ ☞ ◆ ✌...
  • Seite 42 ON/OFF “ ” ENERMAX( “ ” 24P Mainboard ATX/EEB/CEB...
  • Seite 43 8P CPU +12V 4P CPU +12V 6+2P (8P) PCI Express, 8P PCI-E 6+2P (8P) PCI Express, / 6P PCI Express 6P PCI-E SATA SATA/SAS 4P Molex ( IDE/SCSI/SAS FLOPPY ENERMAX ( ENERMAX ( EMC022 :24P MB & 8P CPU...
  • Seite 44 ❳ ❨ ❴ ❵ ✾ ❛ ❜ ❝ ▼ ENERMAX( ✧ ❞ ❡ € ◗ ❘ ❙ ❢ ✸ ❣ ❤ ✐ € ✬ ❦ ❧ ❣ ❤ ♠ ♥ ❂ Web Site: http://www.enermax.cn E-mail: service@enermax.cn ✐ € ✬ : 400-820-2533...
  • Seite 45 UPS ( W/VA EPM1500EGT 1700W / 2400VA EPM1350EWT 1500W / 2100VA EPM1200EWT 1400W / 2000VA ” ” ON/OFF O= ) CordGuard ❅ ✤ ✺ ❩ ❤ ✁ ★ ✧ ✬ ✫ HeatGuard ✂ ❡ ✿ ❤ ✄ ACPI S3/S4 ✣ ☎ ✆ ✝ ✷...
  • Seite 46 ON/OFF “ ” “ ”...
  • Seite 47 6P PCI-E SATA SATA/SAS 4P Molex IDE/SCSI/SAS FLOPPY SATA SATA 4P Molex ENERMAX EMC014-G: 2 x 6+2P (8P) PCI-E 2.0 6+2P PCI-E PCI-E EMC018-G: 8P & 4P +12V CPU/RAM power 4 CPU 16 RAM EMC019-G: 4 x SATA drives SATA SATA/SAS EMC020-G: 3 x 4P Molex (IDE/SCSI) drives &...
  • Seite 48 EMC021-G: 2xSATA & 2x4P Molex (IDE/SCSI) drives SATA/4P SATA/SAS/ IDE/SCSI EMC022 :24P MB & 8P CPU www.enermax.com ENERMAX CPU +12V 4P Molex ON/OFF ”O”), ✿ ✁ ✂ ✄ ☎ ✆ ✝ ✞ ☎ ✆ ✝ ✞ ◗ ✢ ✵ ❩ ✟ ❀...
  • Seite 49 (PSU) ENERMAX! UPS (Uninterruptible Power Supply) EPM1500EGT 1700W / 2400VA EPM1350EWT 1500W / 2100VA EPM1200EWT 1400W / 2000VA “ ”. . #1 / : (I= , O= ). CordGuard. HeatGuard ACPI S3/S4 30 ~ 60 AC cord AC inlet switch “0”...
  • Seite 50 ✝ ✓ ✔ ✆ ✕ ✟ ✖ ✄ ✮ ✁ ✂ ✒ 1. CordGuard Enermax ✝ ✤ ✱ ✆ ✙ ✢ ☎ ✆ ✤ ✠ ✏ ✣ ✲ ✘ ✌ ☞ ✳ ✏ ✡ ✴ ☛ ✓ ✂ ✒ ✝ ✥ ✁ ✆ ✄ ✏ ✑ ✄ ✗ ☞ ✁ ✂ ✆ ✜ ✜ ✙ ✕ ✱ ✁ ✝ ✤ ✱ ✆ ✙ ✢ ☎ ✆ ✤ ✠ ✏ ✣ ✲ ✘ ✌ ☞ ✳ ✏ ✡ ✥ ☛ ✂ ✵ ✄...
  • Seite 51 ◗ ❊ ❘ ❙ ✍ ☎ ❚ ❇ ❊ ✏ ✑ ● ❃ ❯ ❄ ❅ ❆ ✍ ❊ ❱ ✏ ❆ ✝ ✍ ✌ ❲ ✏ ❈ ❯ ✝ ✞ ENERMAX ENERMAX PSU ✰ ✬ ❀ ✺ ✫ ✯ ✒ ✔ ✹ ▼ ✚ ✣ ✾ ✸ ✔ ✖ ✢...
  • Seite 52 EMC021-G: 2xSATA & 2x4P Molex (IDE/SCSI) drives SATA/SAS/DE/SCSI EMC022 :24P MB & 8P CPU : www.enermax.com ENERMAX 5 Pin/ 12 Pin Cable Socket Connector 5 Pin / 12 Pin Cable Lock Lock Cable Lock 1. Connector 24Pin +12V CPU (...
  • Seite 53 User’s Manual Pelanggan yang terhormat, Terima kasih telah memilih ENERMAX Power Supply Unit ( PSU)! Silahkan membaca buku petunjuk ini dengan seksama dan ikuti instruksi sebelum memasang PSU ini. Kami ingin meminta perhatian anda bahwa komputer memerlukan kondisi yang sangat spesifik untuk...
  • Seite 54 #3 AC cord bisa longgar pada kondisi apa pun, ENERMAX CordGuard dapat mengatasi masalah tersebut dan membuat AC cord anda tetap pada tempatnya, sehingga bisa menghindari pc shut down yang tidak diinginkan, berikut instalasi CordGuard. Pasangkan PSU anda pada chassis, dan T ekan kedua sisi CordGuard lock bersamaan, ✂...
  • Seite 55 Kabel modular yang disediakan Diharapkan hanya menggunakan kabel modular ENERMAX ASLI yang di supply oleh ENERMAX PSU, kabel produksi dari pihak ketiga tidak akan kompatibel dan akan mengakibatkan kerusakan pada PSU dan/atau sistem, dengan menggunakan kabel kabel dari pihak ketiga akn merusak garansi dari PSU.
  • Seite 56 Proteksi, keamanan & security PSU ENERMAX ini mempunyai beberapa feature proteksi. Pada kasus yang situasi yang kurang normal, power supply akan memutuskan hubungan listrik secara otomatis agar terhindar dari bahaya yang berpotensi merusak PSU itu sendiri dan komponen PC yang lain. PSU selalu akan melakukan pemutusan hubungan listrik jika ada komponent yang tidak bekerja secara benar atau kesalahan dari pemakai.
