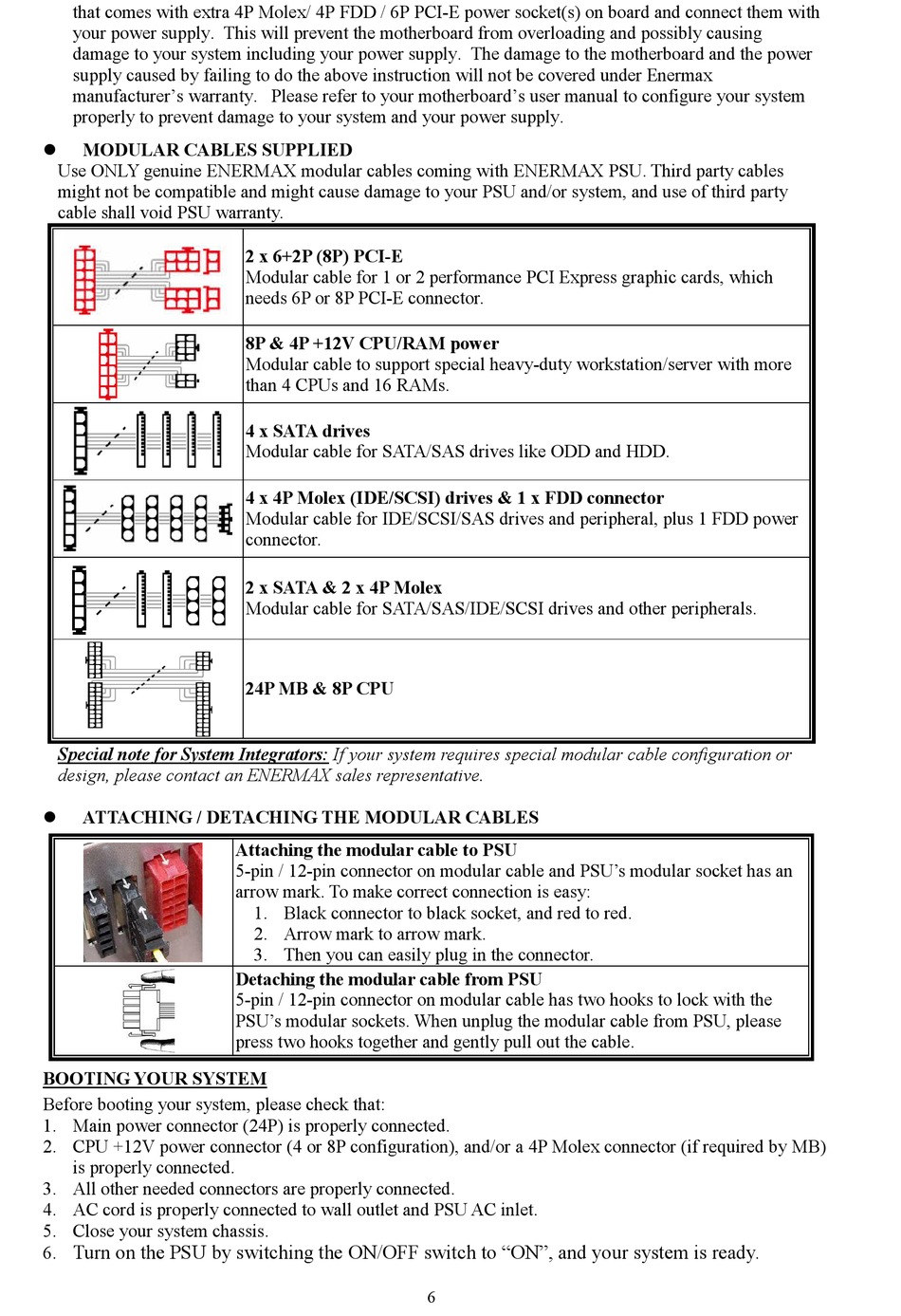

ENERMAX MAXREVO series Benutzerhandbuch Seite 8

that comes with extra 4P Molex/ 4P FDD / 6P PCI-E power socket(s) on board and connect them with
your power supply. This will prevent the motherboard from overloading and possibly causing
damage to your system including your power supply. The damage to the motherboard and the power
supply caused by failing to do the above instruction will not be covered under Enermax
manufacturer's warranty. Please refer to your motherboard's user manual to configure your system
properly to prevent damage to your system and your power supply.

MODULAR CABLES SUPPLIED
Use ONLY genuine ENERMAX modular cables coming with ENERMAX PSU. Third party cables
might not be compatible and might cause damage to your PSU and/or system, and use of third party
cable shall void PSU warranty.
Special note for System Integrators: If your system requires special modular cable configuration or
design, please contact an ENERMAX sales representative.

ATTACHING / DETACHING THE MODULAR CABLES
BOOTING YOUR SYSTEM
Before booting your system, please check that:
1. Main power connector (24P) is properly connected.
2. CPU +12V power connector (4 or 8P configuration), and/or a 4P Molex connector (if required by MB)
is properly connected.
3. All other needed connectors are properly connected.
4. AC cord is properly connected to wall outlet and PSU AC inlet.
5. Close your system chassis.
Turn on the PSU by switching the ON/OFF switch to "ON", and your system is ready.
6.
2 x 6+2P (8P) PCI-E
Modular cable for 1 or 2 performance PCI Express graphic cards, which
needs 6P or 8P PCI-E connector.
8P & 4P +12V CPU/RAM power
Modular cable to support special heavy-duty workstation/server with more
than 4 CPUs and 16 RAMs.
4 x SATA drives
Modular cable for SATA/SAS drives like ODD and HDD.
4 x 4P Molex (IDE/SCSI) drives & 1 x FDD connector
Modular cable for IDE/SCSI/SAS drives and peripheral, plus 1 FDD power
connector.
2 x SATA & 2 x 4P Molex
Modular cable for SATA/SAS/IDE/SCSI drives and other peripherals.
24P MB & 8P CPU
Attaching the modular cable to PSU
5-pin / 12-pin connector on modular cable and PSU's modular socket has an
arrow mark. To make correct connection is easy:
1. Black connector to black socket, and red to red.
2. Arrow mark to arrow mark.
3. Then you can easily plug in the connector.
Detaching the modular cable from PSU
5-pin / 12-pin connector on modular cable has two hooks to lock with the
PSU's modular sockets. When unplug the modular cable from PSU, please
press two hooks together and gently pull out the cable.
