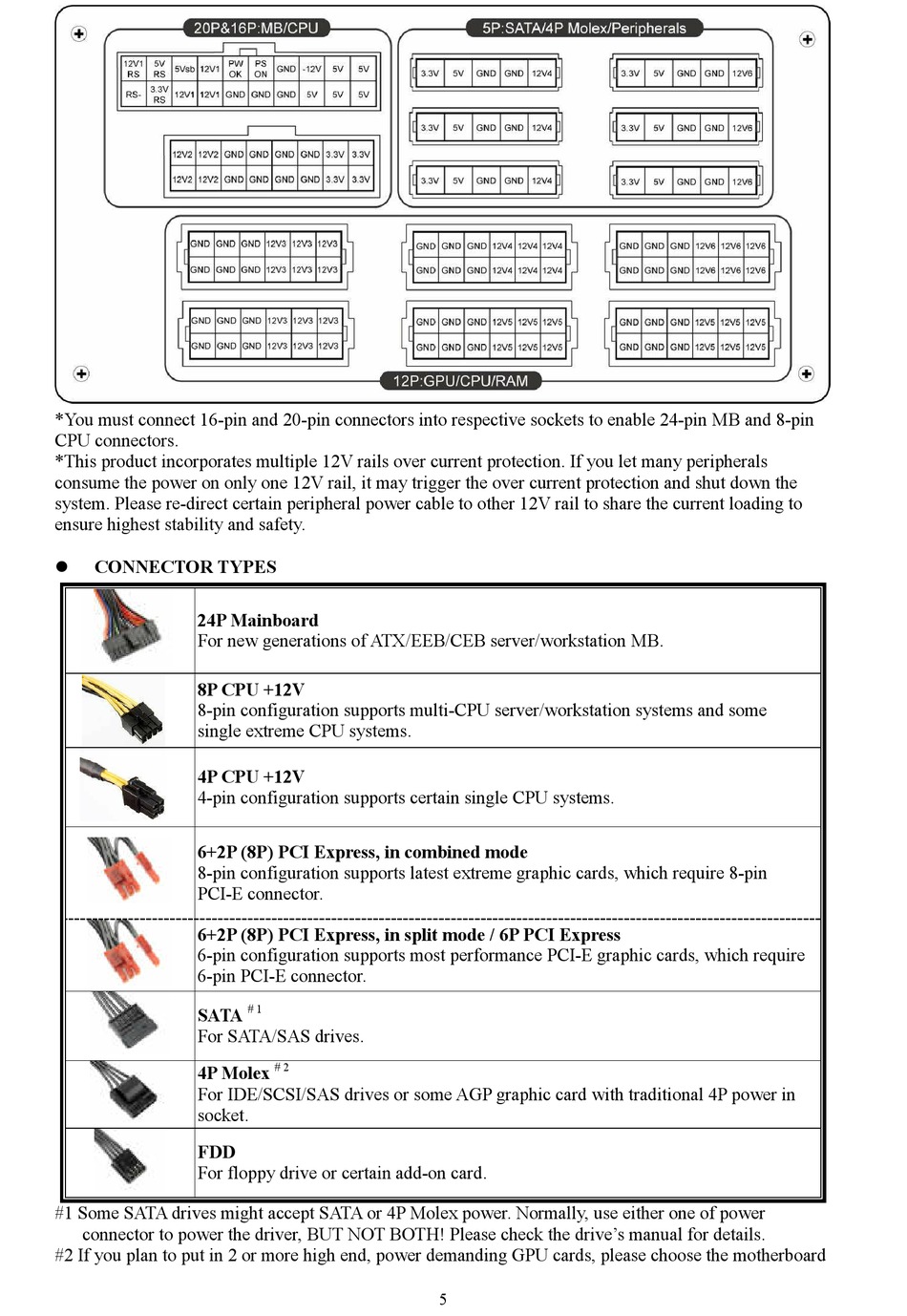

*You must connect 16-pin and 20-pin connectors into respective sockets to enable 24-pin MB and 8-pin
CPU connectors.
*This product incorporates multiple 12V rails over current protection. If you let many peripherals
consume the power on only one 12V rail, it may trigger the over current protection and shut down the
system. Please re-direct certain peripheral power cable to other 12V rail to share the current loading to
ensure highest stability and safety.
CONNECTOR TYPES
24P Mainboard
For new generations of ATX/EEB/CEB server/workstation MB.
8P CPU +12V
8-pin configuration supports multi-CPU server/workstation systems and some
single extreme CPU systems.
4P CPU +12V
4-pin configuration supports certain single CPU systems.
6+2P (8P) PCI Express, in combined mode
8-pin configuration supports latest extreme graphic cards, which require 8-pin
PCI-E connector.
6+2P (8P) PCI Express, in split mode / 6P PCI Express
6-pin configuration supports most performance PCI-E graphic cards, which require
6-pin PCI-E connector.
SATA
For SATA/SAS drives.
4P Molex
For IDE/SCSI/SAS drives or some AGP graphic card with traditional 4P power in
socket.
FDD
For floppy drive or certain add-on card.
#1 Some SATA drives might accept SATA or 4P Molex power. Normally, use either one of power
connector to power the driver, BUT NOT BOTH! Please check the drive's manual for details.
#2 If you plan to put in 2 or more high end, power demanding GPU cards, please choose the motherboard
# 1
# 2
5
