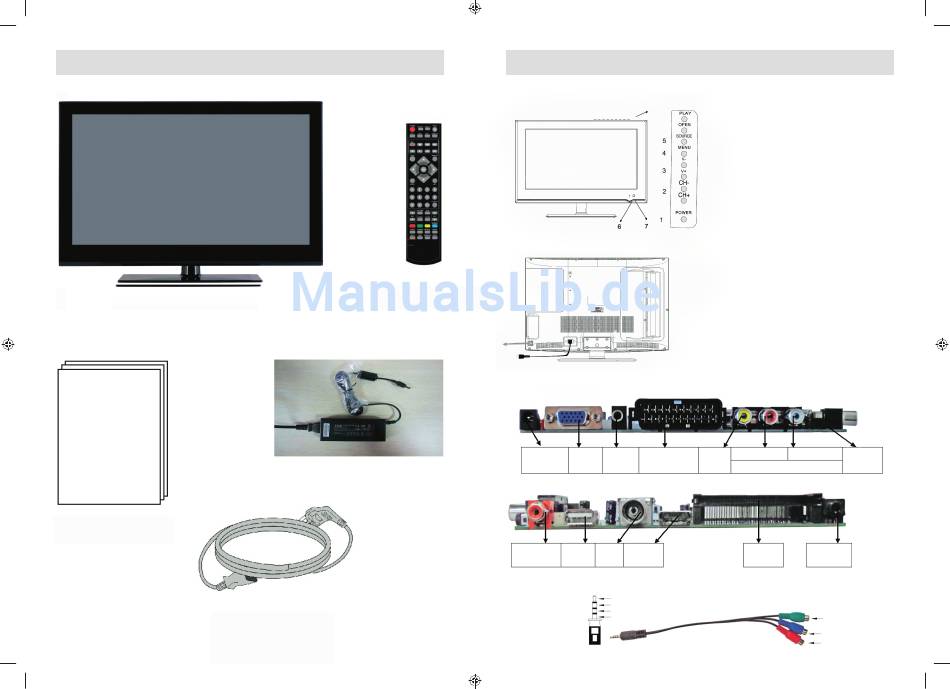

3. paCKing list

LED TV SET
User's Manual
power Cord
36
Bedienungsanleitung_214070_110_Multi.indd 36-37
Remote Control
power adaptor
4. FRont and BaCK ConneCtions oF led tV
Front View
Back View and Control Connections
(Optional)
BaCK ConneCtion VieW
DC Power PC-RGB PC Audio
CART In
Supply In In
side ConneCtion
Coaxial Out USB Slot RF In HDMI In
ReQuiReMent oF WiRe HaRness
GND
1. Press "POWER" button to turn standby mode
on or off.
2. Press "CH+" or "CH-" to scan through channels.
3. Press "V+" or "V-" to increase or decrease
the sound level.
4. Press "MENU" to bring up the main menu on
the screen.
5. Press "SOURCE" to select the input source.
6. POWER INDICATOR: show red in standby
mode, show green when your TV is switched on.
7. REMOTESENSOR: infrared sensor for the
remote control.
CVBS R L Component
In In
CVBS & Component Audio In
Earphone
CI Slot In
Out
(Optional)
y
Pb/Cb
Pr/Cr
