(3Gb/s) cable FireWire 800 (9:9 pin) cable FireWire 400 (6:6 pin) cable Hi-Speed USB 2.0 cable Power supply kit LaCie CD-ROM (with detailed user manuals and software, including LaCie Desktop Manager) Protect your investment – register for free technical support: www.lacie.com/register...
Seite 4
Please note that the term of your warranty remains five years. PCI-E eSATA 3Gb/s card LaCie offers a wide range of host adapaters including the eSATA II PCI Express Card 3Gb/s. Featuring four external eSATA 3Gb/s connectors, it is the best interface choice for professionals who demand high speed.
Seite 5

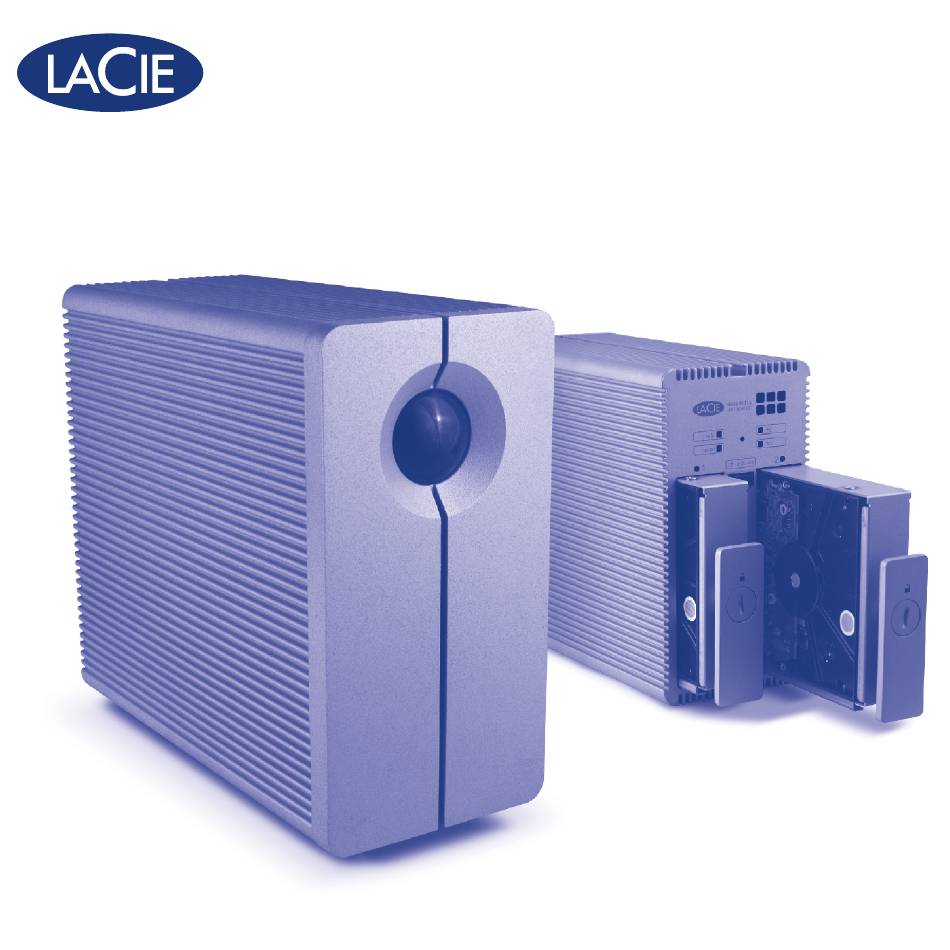

Front View Rear View 8. eSATA 3Gb/s port 1. Shortcut button with 2. Drive status LED 9. Hi-speed USB 2.0 port activity LED 3. Drive tray handle 4. Drive tray lock 10. FireWire 800 ports 5. RAID mode LEDs 11. FireWire 400 port 12.
Seite 6

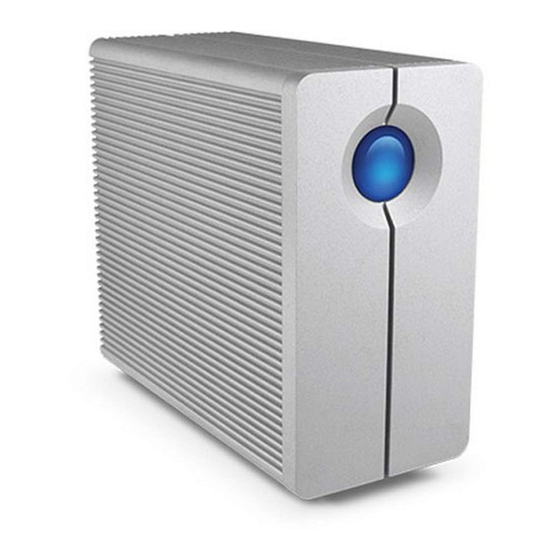

2big Quadra. 2. Decide which interface cable you will use (eSATA 3Gb/s , FireWire 400, FireWire 800, USB 2.0) and connect your 2big Quadra to your computer. NOTE: Do not connect more than one interface cable between your computer and your 2big Quadra.
Seite 7
4. LaCie 2big Quadra Enterprise Class comes with two 3.5” SATA II Enterprise-class hard disks installed. The disks are formatted in HFS+, so Windows users will need to reformat the disks before using the 2big Quadra. Please see the detailed User Manual on the LaCie CD-ROM for information on formatting hard disks.
Seite 8
Changing the RAID Mode CAUTION! - Changing the RAID mode will erase the data stored on the 2big Quadra. Back up data before changing the RAID mode. - The 2 disk trays must be in place before the RAID mode can be modified.
Seite 9
Precautions Do not stack more than two LaCie 2big Quadra Enterprise Class together. Do not expose the drive to temperatures over 35° C (95° F) or 30° C (86° F) when stacked. Do not expose the device to liquids. Use only the power supply shipped with the device.
REMARQUE : ne connectez pas plus d’un câble d’interface entre l’ordinateur et le 2big Quadra. 3. Le LaCie 2big Quadra Enterprise Class est fourni avec deux disques durs professionnels SATA II de 3,5” intégrés. Ces disques durs étant formatés en HFS+, les utilisateurs Windows doivent les reformater avant d’utiliser le 2big Quadra.
LaCie 2big Quadra al computer. NOTA: usare solo un cavo di interfaccia alla volta per collegare il computer all'unità LaCie 2big Quadra. 3. L'unità LaCie 2big Quadra Enterprise Class viene fornita con due dischi SATA da 3,5” di classe Enterprise pre-installati.
Seite 12
Einrichtung 1. Schließen Sie das Netzteil an eine Stromsteckdose an, und verbinden Sie das Stromkabel mit der 2big Quadra. 2. Entscheiden Sie sich für eines der Schnittstellenkabel (eSATA 3 Gb/s, FireWire 800, USB 2.0), und verbinden Sie die 2big Quadra mit dem Computer.
Seite 13
NOTA: no conecte más de un cable de interfaz entre el ordenador y la unidad 2big Quadra. 3. LaCie 2big Quadra Enterprise Class se suministra con dos discos SATA II de clase empresarial de 3.5” instalados. Los discos están formateados en HFS+, por lo que los usuarios de Windows no tendrán que volver a formatearlos para utilizar la unidad 2big Quadra.
Seite 14
5. Installeer de LaCie Desktop Manager-software die u op de CD-ROM vindt om de codering en de Shortcut Button te configureren. LET OP: De schijven moeten voor het coderingsproces opnieuw worden geformatteerd, waardoor alle gegevens op de 2big Quadra worden gewist. Maak een back-up van uw gegevens voordat u de codering inschakelt. OPMERKING: De LaCie Enterprise Class-codering biedt een heel hoog beschermingsniveau voor uw belangrijkste gegevens.
Seite 15
2big Quadra ao seu computador. NOTA: Não ligue mais do que um cabo de interface entre o computador e o sistema 2big Quadra. 3. O LaCie 2big Quadra Enterprise Class inclui dois discos rígidos SATA II Enterprise class de 3,5 pol.
Seite 16
OBSERVERA! Om du ändrar RAID-läget och formaterar diskarna ändras inte krypteringskonfigurationen, men krypterade data raderas. Mer information om RAID finns i användarhandboken. 1. Demontera eller ta bort 2big Quadra-volymerna från datorn på ett säkert sätt, koppla ur gränssnittska- beln och stäng av 2big.
Seite 17
3. LaCie 2big Quadra Enterprise Class leveres med to 3.5” SATA II Enterprise-class harddiske installeret. Diskene er formateret i HFS+, så Windows-brugere skal omformatere dem, før 2big Quadra tages i brug. Se den detaljerede brugervejledning på LaCie CD-ROM’en for at få oplysninger om formatering af harddiske.
Seite 18
2big Quadra tietokoneeseen. HUOM. Kytke tietokoneen ja 2big Quadran välille vain yksi liitäntäkaapeli. 3. LaCie 2big Quadra Enterprise Class -asemassa on toimitettaessa kaksi 3.5” SATA II Enterprise Class -kiintolevyä. Levyt on alustettu HFS+-taltioiksi, joten ne on alustettava uudelleen, ennen kuin 2big Quadraa voidaan käyttää...
Seite 19
UWAGA: Do komputera i macierzy 2big Quadra można podłączyć tylko jeden przewód połączeniowy. 3. W macierzy LaCie 2big Quadra Enterprise Class są zainstalowane dwa dyski twarde 3,5 cala SATA II klasy korporacyjnej. Dyski są sformatowane w systemie plików HFS+, więc użytkownicy systemu Windows muszą przed korzystaniem z macierzy 2big Quadra sformatować...
Seite 20
Установка 1. Подключите источник питания к розетке, а шнур питания — к устройству 2big Quadra. 2. Выберите необходимый кабель интерфейса (eSATA 3 [3 Гбит/с], FireWire 400, FireWire 800 или USB 2.0) и с его помощью подключите устройство 2big Quadra к компьютеру.
Seite 21
ΣΗΜΕΙΩΣΗ: Μην συνδέετε περισσότερα από ένα καλώδια διασύνδεσης μεταξύ του υπολογιστή και του 2big Quadra. 3. Το LaCie 2big Quadra Enterprise Class παραδίδεται με δύο εγκατεστημένους σκληρούς δίσκους 3.5” SATA II Enterprise-class. Οι δίσκοι είναι μορφοποιημένοι ως HFS+, συνεπώς οι χρήστες των Windows θα πρέπει να...
Seite 23
2. 确定要使用哪种接口电缆(eSATA 3Gb/s、FireWire 400、FireWire 800、USB 2.0),然后将 2big Quadra 连接到计算机。 注意:切勿在计算机与 2big Quadra 之间连接多条接口电缆。 3. LaCie 2big Quadra Enterprise Class 装有两块 3.5 英寸 SATA II 企业级硬盘。硬盘已格式化为 HFS+,因此, Windows 用户在使用 2big Quadra 之前需要重新格式化。有关格式化硬盘的详细信息,请参见 LaCie CD-ROM 上的《用户手册》。 4. 硬盘已配置为“快速”模式。如果您想更改 RAID 模式,请参见下一页的“更改 RAID 模式”。...
Seite 24
NOT: Bilgisayarınızla 2big Quadra'nın arasına birden fazla arabirim kablosu bağlamayın. 3. LaCie 2big Quadra Enterprise Class, iki adet 3,5” SATA II Enterprise sınıfı sabit disk takılı halde gelir. Diskler HFS+ formatında biçimlendirilmiştir; bu nedenle Windows kullanıcılarının 2big Quadra’yı kullanmadan önce yeniden biçimlendirmeleri gerekir.
