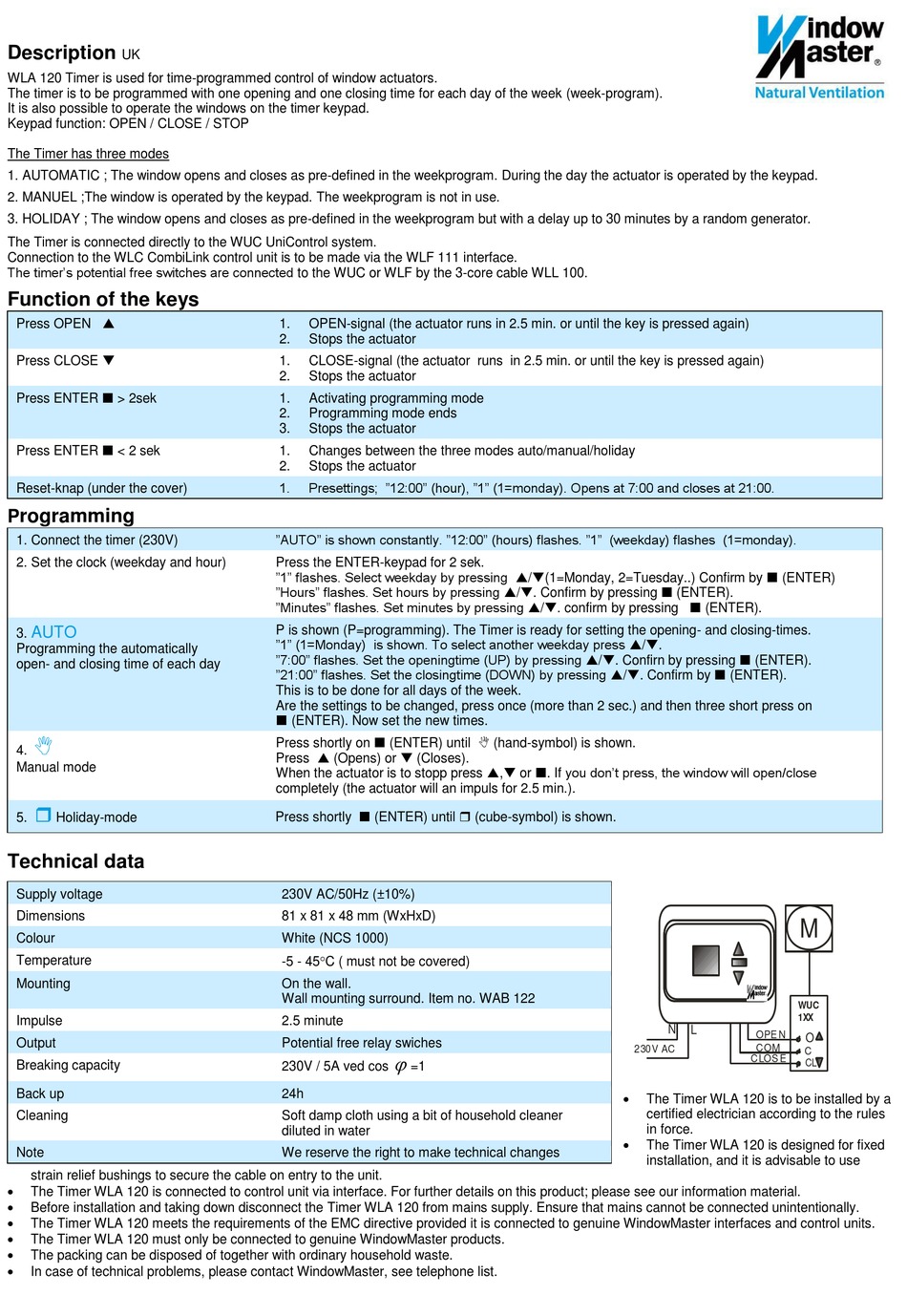

Description
UK
WLA 120 Timer is used for time-programmed control of window actuators.
The timer is to be programmed with one opening and one closing time for each day of the week (week-program).
It is also possible to operate the windows on the timer keypad.
Keypad function: OPEN / CLOSE / STOP
The Timer has three modes
1. AUTOMATIC ; The window opens and closes as pre-defined in the weekprogram. During the day the actuator is operated by the keypad.
2. MANUEL ;The window is operated by the keypad. The weekprogram is not in use.
3. HOLIDAY ; The window opens and closes as pre-defined in the weekprogram but with a delay up to 30 minutes by a random generator.
The Timer is connected directly to the WUC UniControl system.
Connection to the WLC CombiLink control unit is to be made via the WLF 111 interface.
The timer's potential free switches are connected to the WUC or WLF by the 3-core cable WLL 100.

Function of the keys

Press OPEN 
Press CLOSE 
Press ENTER  > 2sek
Press ENTER  < 2 sek
Reset-knap (under the cover)
rogramming
P
1. Connect the timer (230V)
2. Set the clock (weekday and hour)
AUTO
3.
Programming the automatically
open- and closing time of each day

4.
Manual mode

5. Holiday-mode

Technical data

Supply voltage
Dimensions
Colour
Temperature
Mounting
Impulse
Output
Breaking capacity
Back up
Cleaning
Note
strain relief bushings to secure the cable on entry to the unit.

The Timer WLA 120 is connected to control unit via interface. For further details on this product; please see our information material.

Before installation and taking down disconnect the Timer WLA 120 from mains supply. Ensure that mains cannot be connected unintentionally.

The Timer WLA 120 meets the requirements of the EMC directive provided it is connected to genuine WindowMaster interfaces and control units.

The Timer WLA 120 must only be connected to genuine WindowMaster products.

The packing can be disposed of together with ordinary household waste.

In case of technical problems, please contact WindowMaster, see telephone list.
1. OPEN-signal (the actuator runs in 2.5 min. or until the key is pressed again)
2. Stops the actuator
1. CLOSE-signal (the actuator runs in 2.5 min. or until the key is pressed again)
2. Stops the actuator
1. Activating programming mode
2. Programming mode ends
3. Stops the actuator
1. Changes between the three modes auto/manual/holiday
2. Stops the actuator
1. Presettings; "12:00" (hour), "1" (1=monday). Opens at 7:00 and closes at 21:00.
"AUTO" is shown constantly. "12:00" (hours) flashes. "1" (weekday) flashes (1=monday).
Press the ENTER-keypad for 2 sek.
"1" flashes. Select weekday by pressing /(1=Monday, 2=Tuesday..) Confirm by  (ENTER)
"Hours" flashes. Set hours by pressing /. Confirm by pressing  (ENTER).
"Minutes" flashes. Set minutes by pressing /. confirm by pressing  (ENTER).
P is shown (P=programming). The Timer is ready for setting the opening- and closing-times.
"1" (1=Monday) is shown. To select another weekday press /.
"7:00" flashes. Set the openingtime (UP) by pressing /. Confirn by pressing  (ENTER).
"21:00" flashes. Set the closingtime (DOWN) by pressing /. Confirm by  (ENTER).
This is to be done for all days of the week.
Are the settings to be changed, press once (more than 2 sec.) and then three short press on
 (ENTER). Now set the new times.
Press shortly on  (ENTER) until  (hand-symbol) is shown.
Press  (Opens) or  (Closes).
When the actuator is to stopp press , or . If you don't press, the window will open/close
completely (the actuator will an impuls for 2.5 min.).
Press shortly  (ENTER) until  (cube-symbol) is shown.
230V AC/50Hz (±10%)
81 x 81 x 48 mm (WxHxD)
White (NCS 1000)
-5 - 45C ( must not be covered)
On the wall.
Wall mounting surround. Item no. WAB 122
2.5 minute
Potential free relay swiches

230V / 5A ved cos =1
24h
Soft damp cloth using a bit of household cleaner
diluted in water
We reserve the right to make technical changes
N L
OPE N
COM
230V AC
CLOS E

The Timer WLA 120 is to be installed by a
certified electrician according to the rules
in force.

The Timer WLA 120 is designed for fixed
installation, and it is advisable to use
M
O
C
CL
