48 Linear D

Sample applications

EN
The Linear D can accomodate two digital sources and one analogue source at
the same time. It offers one optical input (priority I), one coaxial input (priority
II) and one unbalanced RCA input (fallback). The inputs are switched through in
the order of their priority whenever a digital signal is recognised. If no digital
signal is present at any of the digital inputs, the analogue input is automatically
activated.

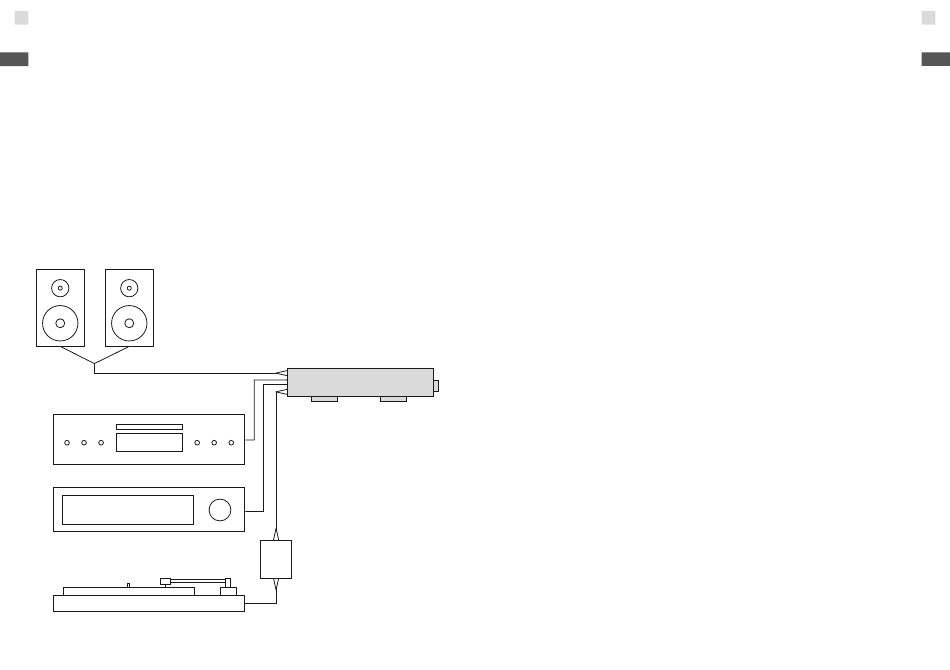

In this example a pair of active loudspeakers, a turntable, a streamer and a CD
player are connected to the Linear D.
I
II
III
P
After connecting the Linear D to the mains grid, connect your digital devices via
a fibre-optic cable to the TOSLINK input (I) or by a coaxial cable to the digital
RCA input (II) respectively. Via RCA cables connect your turntable to a phono
preamp (P) and the latter to the line input (III) of the Linear D. All inputs are
located on the rear panel of the unit (see pages 44/45). Connect your active
loudspeakers to the pre-out of the Linear D by means of an RCA cable.
Due to the automatic input prioritising, you simply need to turn on the desired
signal source. Make sure there is no other signal present at a higher prioritised
input.
Set the gain on the bottom side of the unit to +0 dB (see pages 46/47).
The Linear D can drive up to two headphones simultaneously. To this end use
the headphone outputs on the front panel of the unit. The left headphone
socket will mute the pre-out.
When using headphones, set the gain on the bottom side of the device accord-
ing to the chart on page 47.
Linear D 49
