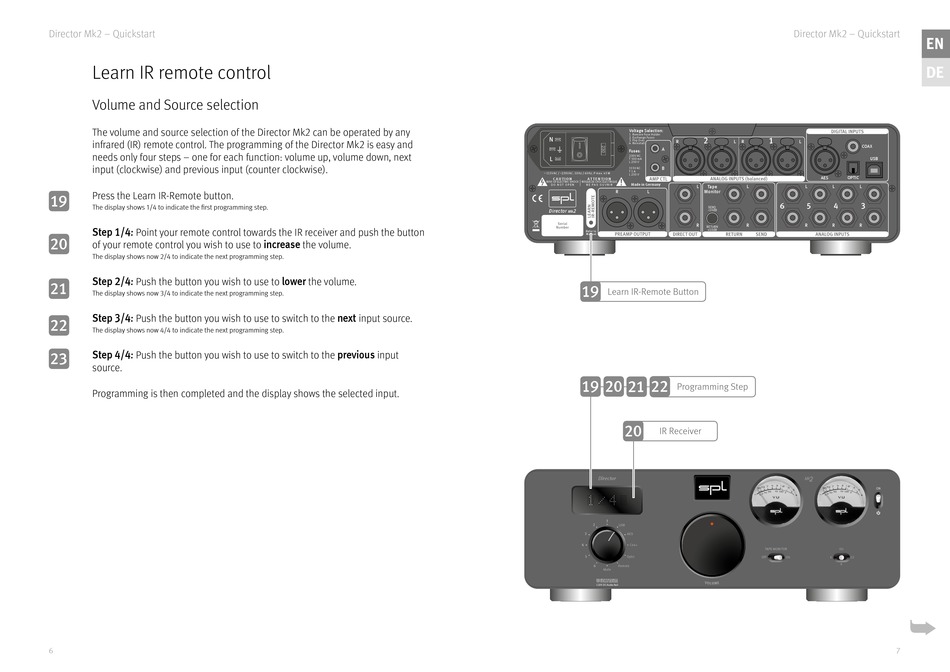

Director Mk2 – Quickstart
Learn IR remote control
Volume and Source selection
The volume and source selection of the Director Mk2 can be operated by any
infrared (IR) remote control. The programming of the Director Mk2 is easy and
needs only four steps – one for each function: volume up, volume down, next
input (clockwise) and previous input (counter clockwise).
Press the Learn IR-Remote button.
19
The display shows 1/4 to indicate the first programming step.
Step 1/4:
Point your remote control towards the IR receiver and push the button
20
of your remote control you wish to use to
The display shows now 2/4 to indicate the next programming step.
Step 2/4:
Push the button you wish to use to
21
The display shows now 3/4 to indicate the next programming step.
Step 3/4:
Push the button you wish to use to switch to the
22
The display shows now 4/4 to indicate the next programming step.
Step 4/4:
Push the button you wish to use to switch to the
23
source.
Programming is then completed and the display shows the selected input.
6
increase
the volume.
lower
the volume.
next
input source.
previous
input
