installation check
After installing the control device, laying the high-voltage cable and attaching the stainless steel contact plates, the
setup should be retested to ensure that it functions correctly. Perform the test using a standard multimeter. Set "direct
current – 300 V" and measure the voltage between the respective stainless steel contact plate and an earthing point (e.g.
unpainted parts of the vehicle body). The value should be 250–300 V. If the function check is successful but voltage fails
to build up after installation, an installation error has occurred.
Blinking at regular intervals (approx. every 5 seconds) = OK: high voltage has built up.
Fast blinking = voltage is building up/dissipating. Caution: residual voltage!
LED off = device is switched off.
Prior to Function
Installation
installation check
1. Is the operating voltage (12 V plus and minus) of the car battery also present at the unit connections?
2. Is the engine switched off?
3. Does the cable to terminal 15 have any voltage? (Is the ignition switched on? If so, the device will be switched off.)
4. Have all the stainless steel contact plates been installed so that they do not touch any other live or earthed parts
(risk of short circuit)?
5. Has the position of the stainless steel contact plates on the cable been changed, damaging the copper core?
6. No voltage detected on the stainless steel contact plate: Has insulating material from the high-voltage cable
worked its way into the screw thread?
7. Is the bonnet contact switch active and is this function available?
Prior to Function
Installation
installation check
0.5 A F
STOP&GO STOP&GO
*Installing the bonnet contact switch
The bracket is fixed in such a way that the bonnet activates the pressure pin of the bonnet contact switch, i.e. so that the electric circuit is interrupted
when the bonnet is opened.
10
Trouble Circuit
Warranty
shooting diagram
Trouble Circuit
Warranty
shooting diagram
Trouble Circuit
Warranty
shooting diagram

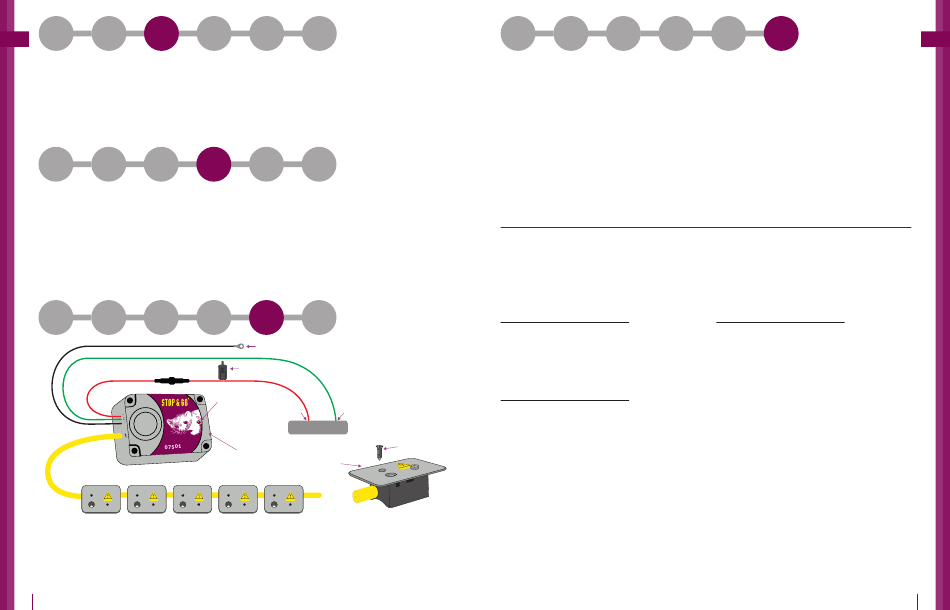

12 V (–) earth
Bonnet contact
switch*
Function control light
12 V (+) Terminal 15
Fuse box
Control device
Plus plate
STOP&GO STOP&GO STOP&GO
Prior to
Installation
installation
IMPORTANT! Terms of the warranty (please keep in a safe place)!
Our 1 PLUS High-voltage device comes with a 48-month functional warranty.
1. Any reasonable complaints within the warranty period from the date of purchase will be remedied free of charge,
either through repair or delivery of a replacement product at our discretion. In order for the warranty to apply,
our product must have been properly installed and maintained in accordance with our installation instructions.
2. To enable us respond to problems, please return the complete unit, including the cable, stainless steel contact
plates, bonnet contact switch and installation invoice, initially at your own expense. Once the problem has been
resolved, the product will be returned to you free of charge.
3. We are not liable for any further claims, such as costs for installing/deinstalling the unit. Any claim under Section
5 of our General Terms and Conditions shall remain unaffected, subject to the conditions set out therein.
4. Any damage caused by improper installation or incorrect, negligent or forceful operation shall invalidate the
warranty. There shall be no liability for consequential damage.
Technical changes and errors excepted.
