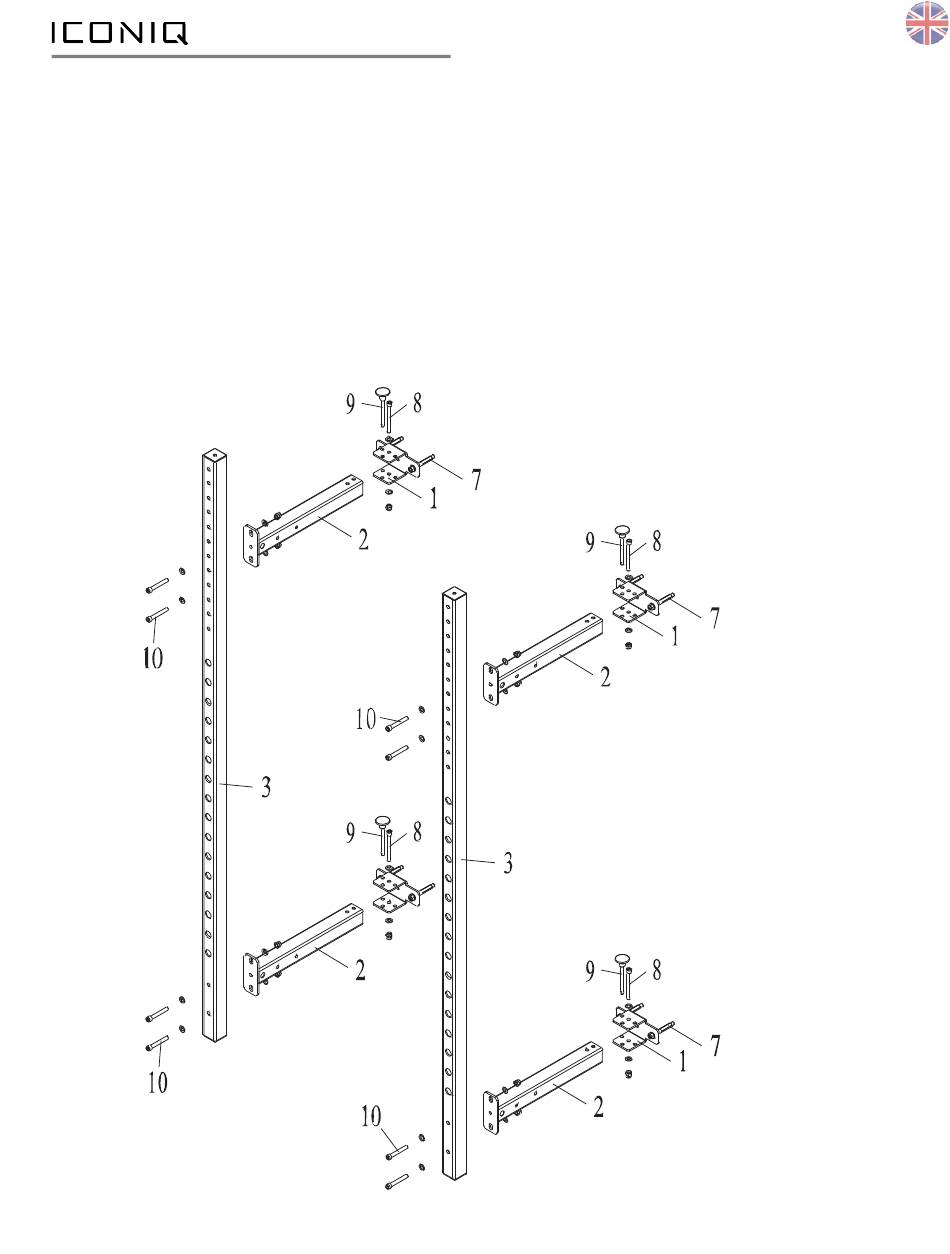

Step 1: Assembling the main parts
Perform for each of the main tubes the following assembly:
1. Take Part-Nr. (1) and used it to highlight the drilling holes on the wall. Please measure the hole distance
using the tubes Nr. (3) and (4) in order to mark the correct drilling spot for the holes.
2. Please drill the holes in the wall. Make sure not to drill through any electricity cables, water pipes or any
connecting cables within the wall.
3. Attach part (1) to the wall using the bolt assembly (7).
4. Attach the two parts (2) to part (3) using the four bolt assemblies (10).
5. Attach the two parts (2) to each part (1) using the two bolt assemblies (8) and (9).
