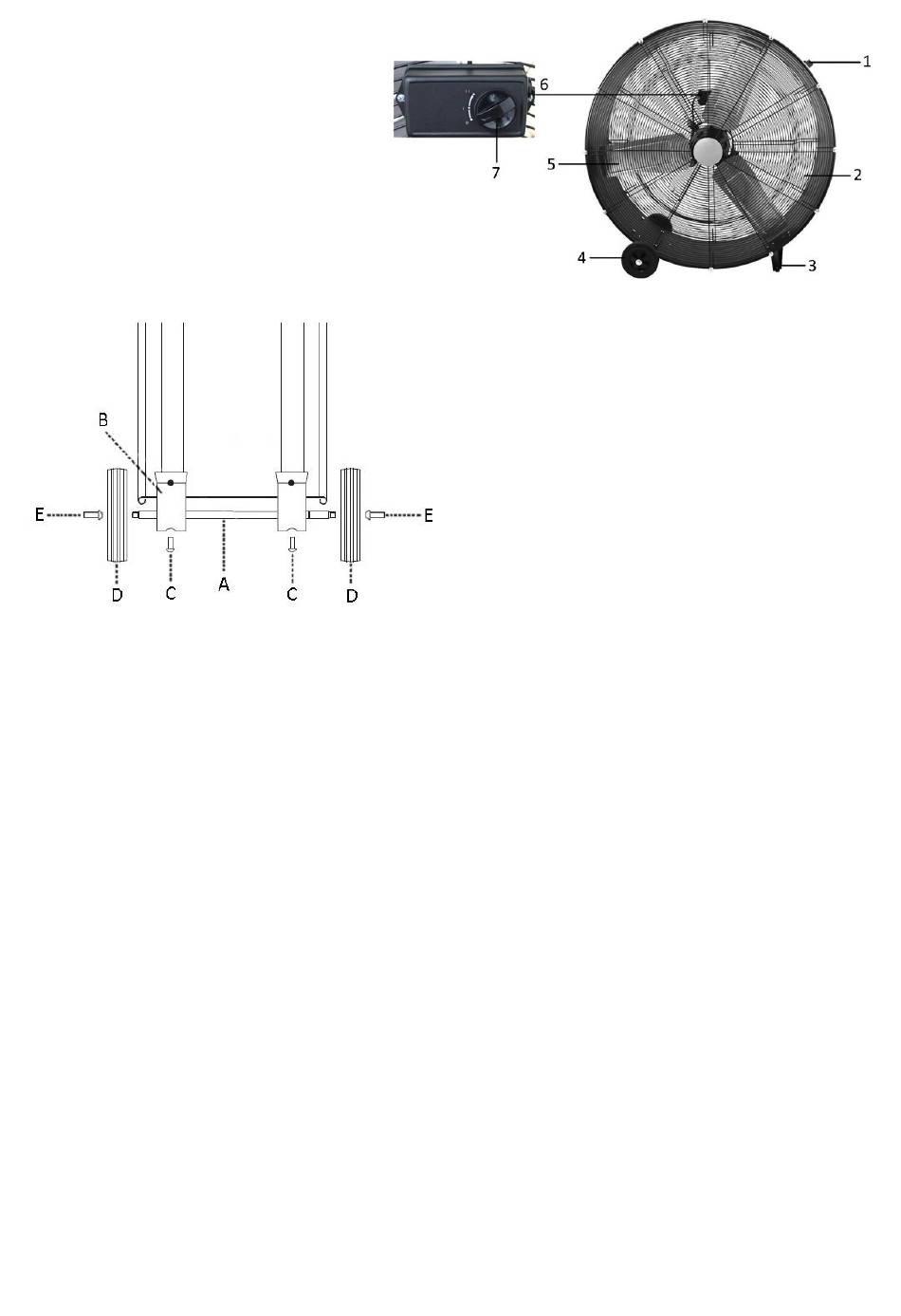

PARTS DESCRIPTION
1. Carrying handle
2. Front grille
3. Support leg
4. Caster
5. Fan blade
6. Control box
7. Switch knob
CASTER ASSEMBLY
1. Fix the wheel shaft (A) on to the wheel frame (B). Insert two screws (C) with split washers and plain washers
into the two holes on the wheel frame. Rotate the screws tightly to make sure the wheel shaft is fixed on to
the wheel frame firmly.
2. Fix the two casters (D) on to the wheel shaft (A). Have both ends of the wheel shaft inserted into the holes
of the two casters. Insert the two screws (E) with split washers and plain washers on to both ends of the
wheel shaft. Rotate the screws tightly to make sure the casters are fixed on to the wheel shaft firmly.
OPERATION
1. Plug the appliance into a suitable power socket.
2. Rotate the switch knob at the back of the fan to choose your desired setting: II = High speed / I = Low speed
/ O = Off.
3. After use, rotate the switch knob to "O" and unplug the appliance. Don't remove the fan guard.
CARE AND CLEANING
CAUTION: ALWAYS UNPLUG THE PRODUCT FROM THE ELECTRICAL OUTLET PRIOR TO CLEANING IT.
1. Do not use the product in oily or dirty areas, as the air vents may become blocked.
2. Never immerse the appliance in water (danger of short-circuit).
3. Please unplug the unit before cleaning. Clean the appliance with soft cloth (Please don't use gasoline or
other corrosive liquid.). Don't remove the fan guard.
4. Please do not let water flow into the motor and wet electric elements during cleaning.
5. Store the product in a cool, dry place.
