Connection

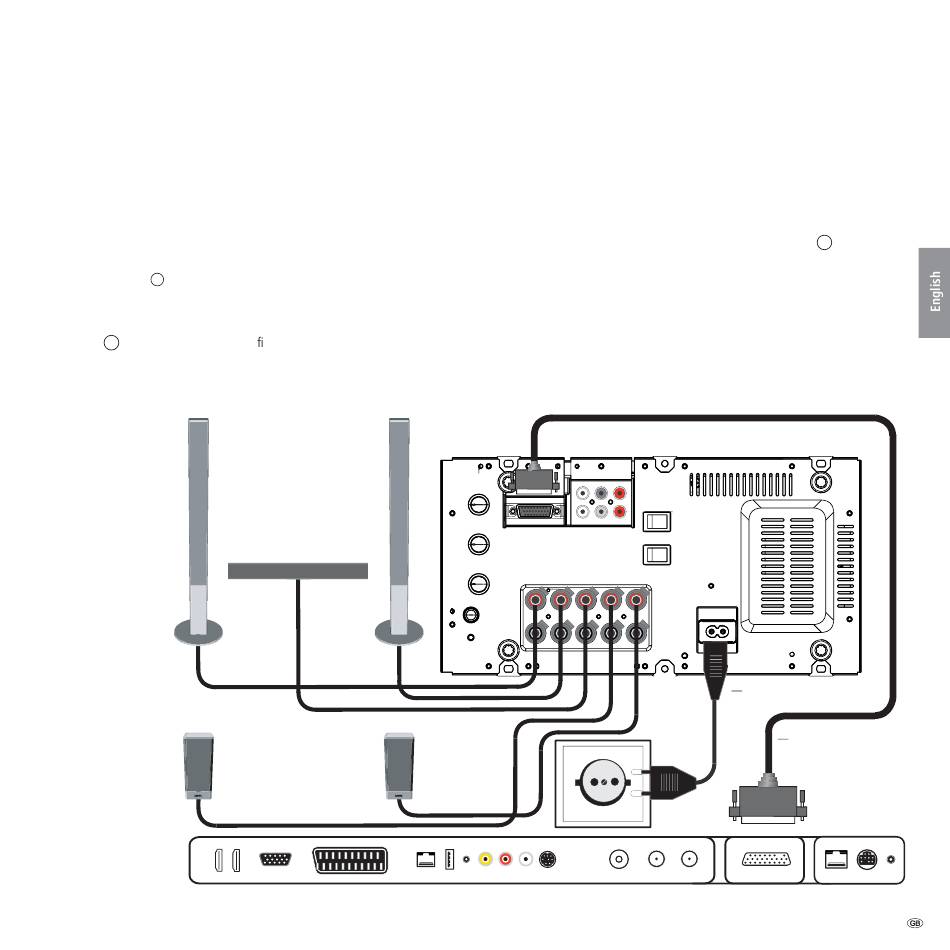

Cabling for Loewe TV set (L27xx/SL1xx) - Loewe subwoofer - loudspeaker
➠
The TV set must be equipped with an integrated digital multi-channel audio
decoder. If this has not been done at the factory, please consult your dealer
and ask them for the suitable Loewe upgrade kit.
Install the audio link cable with the 25-pin plug on the TV set and subwoofer.
(socket Audio Link
).
2
Connect the speaker cable to the speaker according to the appropriate instal-
lation instructions. One of the two wires of the speaker cables is usual marked
black. Connect this black marked cable to the black screw terminal on the
subwoofer (connection diagram, see gure below) and the black terminal
8
on the speaker. Turn the screw connection of the respective terminal on the
subwoofer anticlockwise about 5 turns. Feed the wire end into the screw termi-
Front
Loewe TV set (L27xx - SL1xx)
Front
left right
Center
Rear Rear
left right
nal (top right-hand side) and close the screw terminal by turning it clockwise.
Connect the unmarked wires to the red terminals.
Use the mains cable supplied to connect the 220-240 V socket
woofer to a 220-240V 50/60 Hz socket.
Loewe subwoofer
of the sub-
9
Mains cable
Audio link cable
