Place this template on mounting surface and drill four holes as shown for mounting screws.
The screw heads must be smaller than 0.39" (10 mm) and larger than 0.21" (5.5 mm).
Adjust height of screw heads to securely lock monitor in place. This height is about 0.178" (4.5 mm).
3.74" (95 mm)
Front Edge
of Base

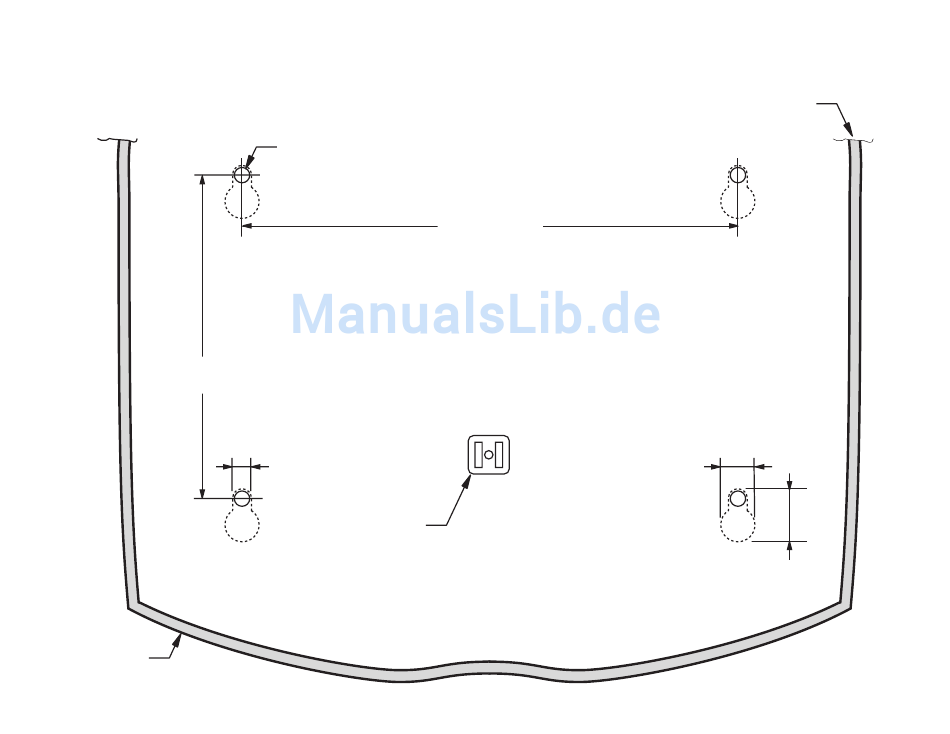

M170 Base Plate Mounting Template
( Drawn actual size)
3M Touch Systems Proprietary Information
Drill 4 Mounting Holes
0.178" (4.5 mm) Dia.
5.71" (145 mm)
0.21" (5.5 mm)
Locking
Mechanism
Receptacle
3M Touch Systems Markeninformationen
Rear Edge of
Base Not Shown
0.39" (10 mm)
0.70" (17.8 mm)
