FireClass FC430SB Installationsanleitung Seite 3

TECHNICAL SPECIFICATION
Type Iden ti fi ca tion Value: 130
Sys tem Com pat i bil ity:
En vi ron ment:
Op er at ing Tem per a ture: -25 to +70
Stor age Tem per a ture:
Op er at ing Hu mid ity:
Di men sions:
Height
(in clud ing mount ing flange):
Di am e ter:
Weight:
Mount ing Re quire ments: Flat sur face or suit able elec tri cal
Elec tri cal Char ac ter is tics:
Standby:
Alarm:
! CAUTION: ENSURE THAT SITE PLAN DEFINES THE
POLARITY OF POLARITY CONSCIOUS BASES.
Elec tro mag netic Com pat i bil ity
The FC430SB com plies with the fol low ing:
prod uct fam ily stan dard EN50130-4 in re spect of Con ducted
Dis tur bances, Ra di ated Im mu nity, Elec tro static Dis charge,
Fast Tran sients and Slow High En ergy;
EN61000-6-3 for emis sions.
INTRODUCTION
The FC430SB Loop Low Power Sounder Base pro vides an ad di -
tional sounder func tion on the FC ad dress able loop cir cuit. The
FC430SB Loop Low Sounder Base re quires an as so ci ated de tec -
tor in or der to op er ate, as it uses the ad dress of the de tec tor that is
fit ted to it. Re moval of the de tec tor or loss of power to the loop will
cause the sounder to cease op er at ing. A max i mum of 45 Sounder
Bases at full vol ume may be con nected to the loop.

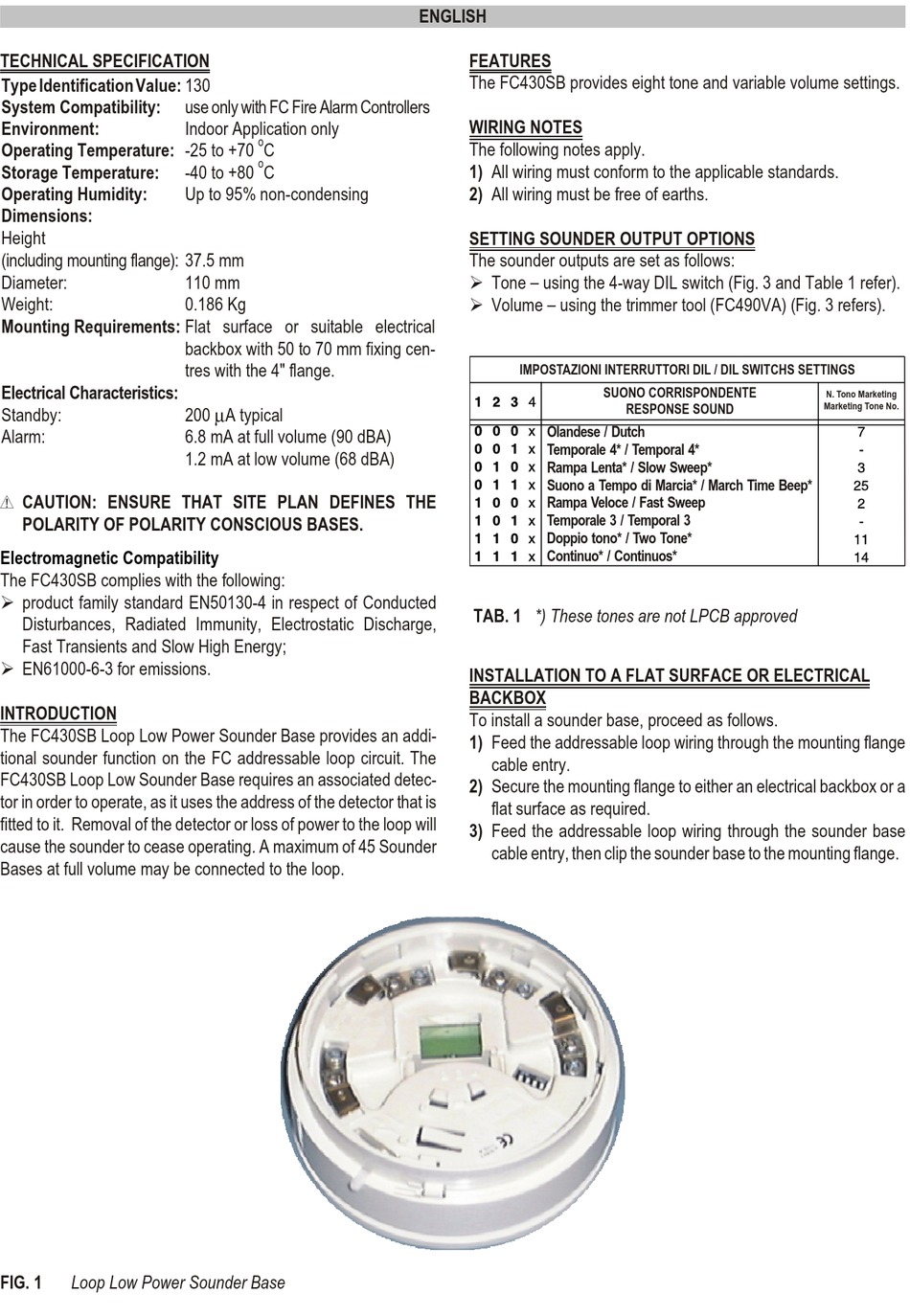

FIG. 1
Loop Low Power Sounder Base
use only with FC Fire Alarm Con trol lers
In door Ap pli ca tion only
o
C
o
-40 to +80 C
Up to 95% non-con dens ing
37.5 mm
110 mm
0.186 Kg
backbox with 50 to 70 mm fix ing cen -
tres with the 4" flange.
200 µA typ i cal
6.8 mA at full vol ume (90 dBA)
1.2 mA at low vol ume (68 dBA)
ENGLISH
FEATURES
The FC430SB pro vides eight tone and vari able vol ume set tings.
WIRING NOTES
The fol low ing notes ap ply.
1) All wir ing must con form to the ap pli ca ble stan dards.
2) All wir ing must be free of earths.
SETTING SOUNDER OUTPUT OPTIONS
The sounder out puts are set as fol lows:
Tone – us ing the 4-way DIL switch (Fig. 3 and Ta ble 1 re fer).
Vol ume – us ing the trim mer tool (FC490VA) (Fig. 3 re fers).
IMPOSTAZIONI INTERRUTTORI DIL / DIL SWITCHS SETTINGS
Olandese / Dutch
Temporale 4* / Temporal 4*
Rampa Lenta* / Slow Sweep*
Suono a Tempo di Marcia* / March Time Beep*
Rampa Veloce / Fast Sweep
Temporale 3 / Temporal 3
Doppio tono* / Two Tone*
Continuo* / Continuos*
TAB. 1 *) These tones are not LPCB ap proved
INSTALLATION TO A FLAT SURFACE OR ELECTRICAL
BACKBOX
To in stall a sounder base, pro ceed as fol lows.
1) Feed the ad dress able loop wir ing through the mount ing flange
ca ble en try.
2) Se cure the mount ing flange to ei ther an elec tri cal backbox or a
flat sur face as re quired.
3) Feed the ad dress able loop wir ing through the sounder base
ca ble en try, then clip the sounder base to the mount ing flange.
SUONO CORRISPONDENTE
RESPONSE SOUND
N. Tono Marketing
Marketing Tone No.
