g) Support any oversized workpiece to minimize
the risk of wheel pinching and kickback. Large
workpieces tend to sag under their own weight.
Supports must be placed under the workpiece near
the line of cut and near the edge of the workpiece on
both sides of the wheel.

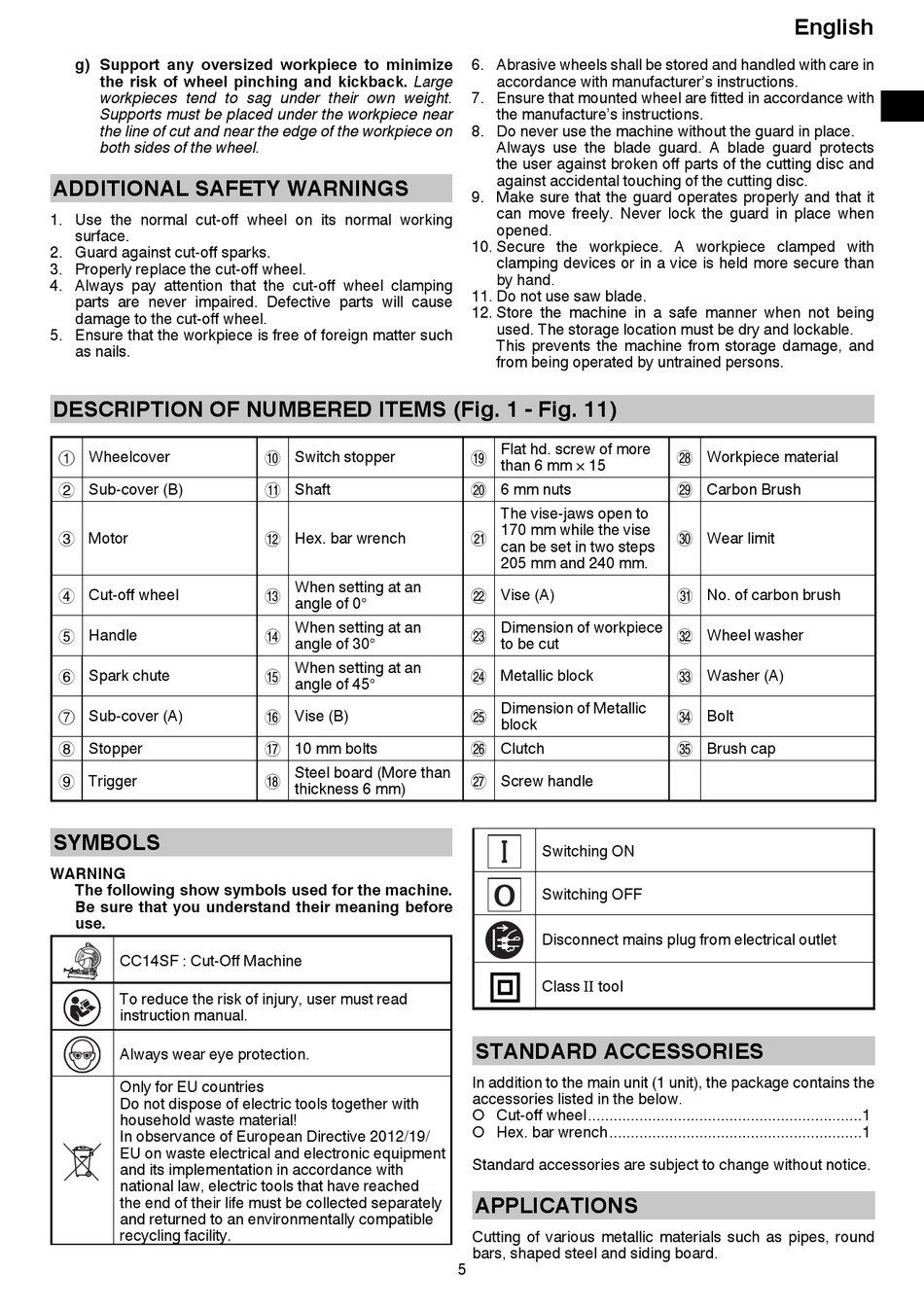

ADDITIONAL SAFETY WARNINGS

1. Use the normal cut-off wheel on its normal working
surface.
2. Guard against cut-off sparks.
3. Properly replace the cut-off wheel.
4. Always pay attention that the cut-off wheel clamping
parts are never impaired. Defective parts will cause
damage to the cut-off wheel.
5. Ensure that the workpiece is free of foreign matter such
as nails.
DESCRIPTION OF NUMBERED ITEMS (Fig. 1 - Fig. 11)
1 Wheelcover
2 Sub-cover (B)
3 Motor
4 Cut-off wheel
5 Handle
6 Spark chute
7 Sub-cover (A)
8 Stopper
9 Trigger
SYMBOLS
WARNING
The following show symbols used for the machine.
Be sure that you understand their meaning before
use.
CC14SF : Cut-Off Machine
To reduce the risk of injury, user must read
instruction manual.
Always wear eye protection.
Only for EU countries
Do not dispose of electric tools together with
household waste material!
In observance of European Directive 2012/19/
EU on waste electrical and electronic equipment
and its implementation in accordance with
national law, electric tools that have reached
the end of their life must be collected separately
and returned to an environmentally compatible
recycling facility.
0 Switch stopper
! Shaft
@ Hex. bar wrench
When setting at an
#
angle of 0°
When setting at an
$
angle of 30°
When setting at an
%
angle of 45°
^ Vise (B)
& 10 mm bolts
Steel board (More than
*
thickness 6 mm)
6. Abrasive wheels shall be stored and handled with care in
accordance with manufacturer's instructions.
7. Ensure that mounted wheel are fi tted in accordance with
the manufacture's instructions.
8. Do never use the machine without the guard in place.
Always use the blade guard. A blade guard protects
the user against broken off parts of the cutting disc and
against accidental touching of the cutting disc.
9. Make sure that the guard operates properly and that it
can move freely. Never lock the guard in place when
opened.
10. Secure the workpiece. A workpiece clamped with
clamping devices or in a vice is held more secure than
by hand.
11. Do not use saw blade.
12. Store the machine in a safe manner when not being
used. The storage location must be dry and lockable.
This prevents the machine from storage damage, and
from being operated by untrained persons.
Flat hd. screw of more
(
than 6 mm × 15
) 6 mm nuts
The vise-jaws open to
170 mm while the vise
q
can be set in two steps
205 mm and 240 mm.
w Vise (A)
Dimension of workpiece
e
to be cut
r Metallic block
Dimension of Metallic
t
block
y Clutch
u Screw handle
Switching ON
Switching OFF
Disconnect mains plug from electrical outlet
Class II tool

STANDARD ACCESSORIES

In addition to the main unit (1 unit), the package contains the
accessories listed in the below.
○ Cut-off wheel ................................................................1
○ Hex. bar wrench ...........................................................1
Standard accessories are subject to change without notice.
APPLICATIONS
Cutting of various metallic materials such as pipes, round
bars, shaped steel and siding board.
5
English
i Workpiece material
o Carbon Brush
p Wear limit
a No. of carbon brush
s Wheel washer
d Washer (A)
f Bolt
g Brush cap
