Mounting
Rung

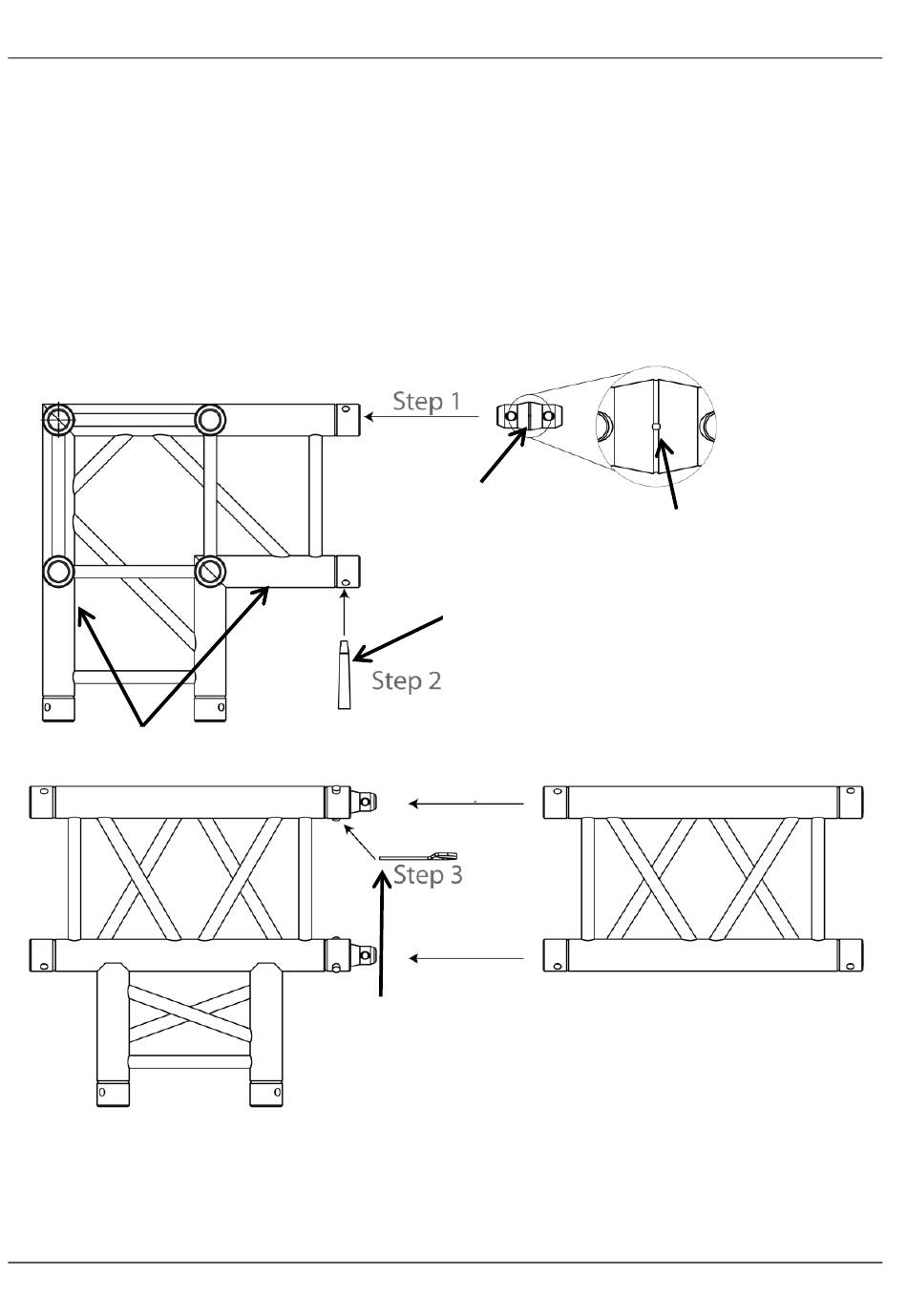

1. Insert conical connector into end of truss, aligning the holes in the
connector and the truss. Be sure to insert conical connector so that the
dimple faces out.
2. Insert narrow end of spigot with the hole in it through truss and
connector. Tap spigot with rubber mallet if necessary.
3. Insert cotter pin into the spigot until it snaps. Repeat steps 1 through 3
for each rung.
4. Connect the next truss component, repeating steps 2 and 3 to secure.
Cotter
Pin
Page 3 of 20
Conical
Connector
Spigot
Step 4
TRUSST® QRG
Dimple
