1 General
This user-guide describes the following Foamatic operations:
Daily operation, Setting, Programming, User set up and Editing.

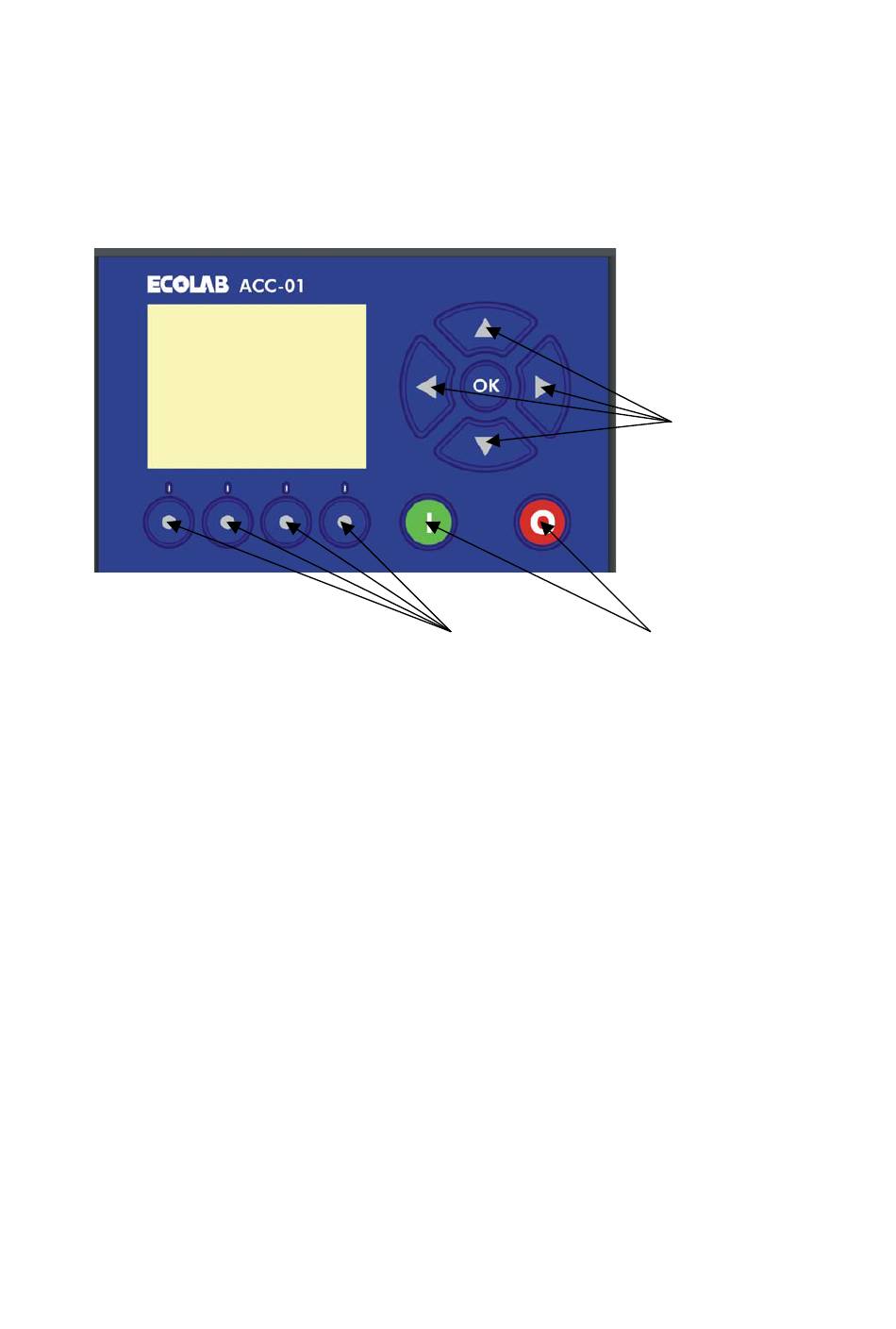

The Foamatic is controlled via the control unit ACC-01 illustrated below.
Navigation buttons
Activation buttons Menu buttons
Functional description
The four navigation buttons in the right side of the panel moves the curser in the display.
OK button confirms the activity displayed.
The four activation buttons below the display refer directly to the activity shown in the display.
According to the activity displayed the function of these buttons will change. The activation buttons
are not always active. The activities referring to the buttons are all illustrated by symbols in the
display.
The red and the green button in the lower right side of the panel are used for activation and
deactivation of the power supply between the ACC-01 and the master controller. Before operation
always activate the green button, the green light diode now lights up, and the unit is on stand by and
ready for use.
