OPERATION

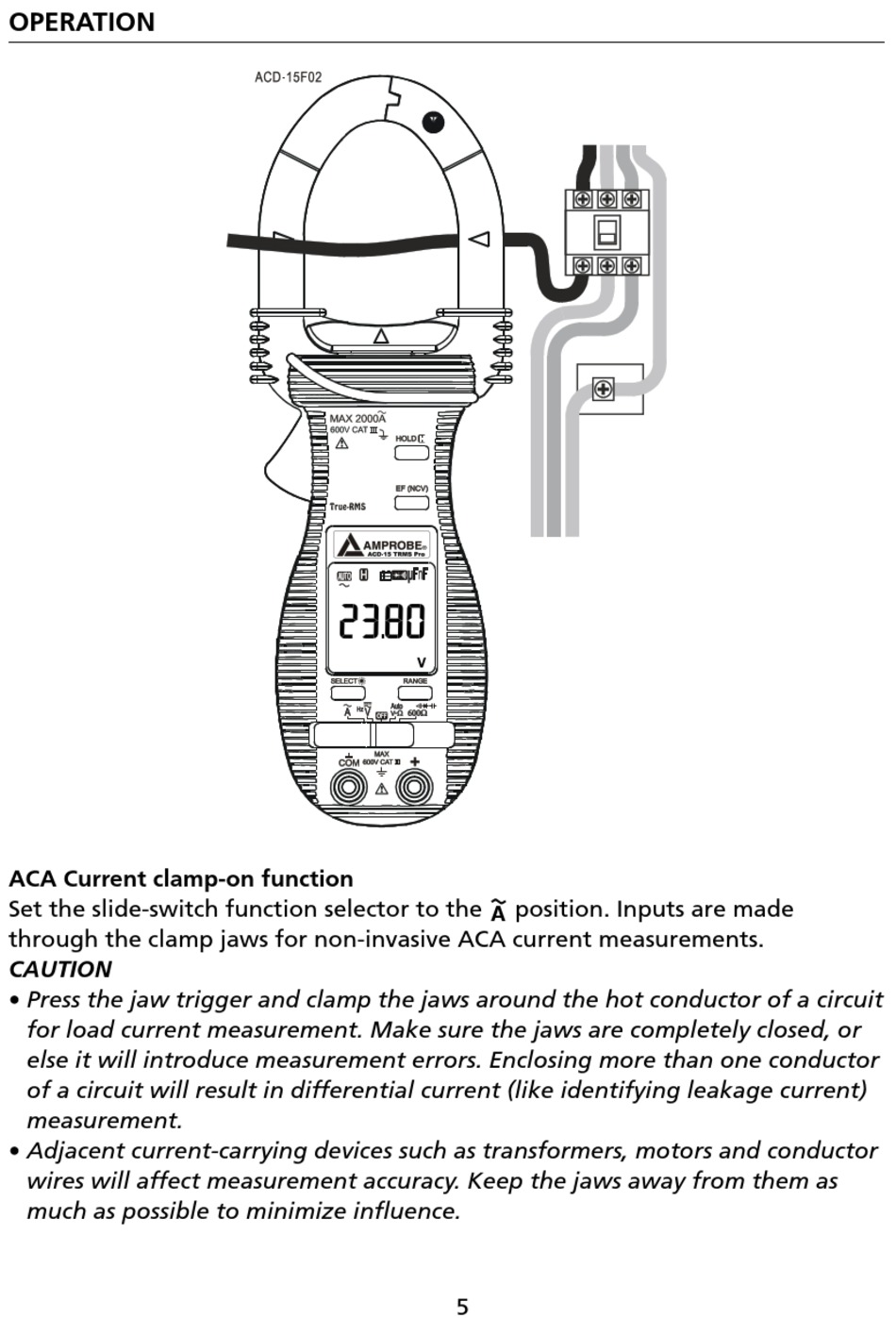

ACA Current clamp-on function
Set the slide-switch function selector to the � position. Inputs are made
through the clamp jaws for non-invasive ACA current measurements.
CAUTION
• Press the jaw trigger and clamp the jaws around the hot conductor of a circuit
for load current measurement. Make sure the jaws are completely closed, or
else it will introduce measurement errors. Enclosing more than one conductor
of a circuit will result in differential current (like identifying leakage current)
measurement.
• Adjacent current-carrying devices such as transformers, motors and conductor
wires will affect measurement accuracy. Keep the jaws away from them as
much as possible to minimize influence.
23. 8 0
V
5
