Disassemble the Camera
Open the camera by loosen
the 2 screws.
Install the SD Card
Push the SD card into
the camera with the gold
contacts oriented towards
the base of the camera. To
eject the SD card, push the
SD card into the slot.
2

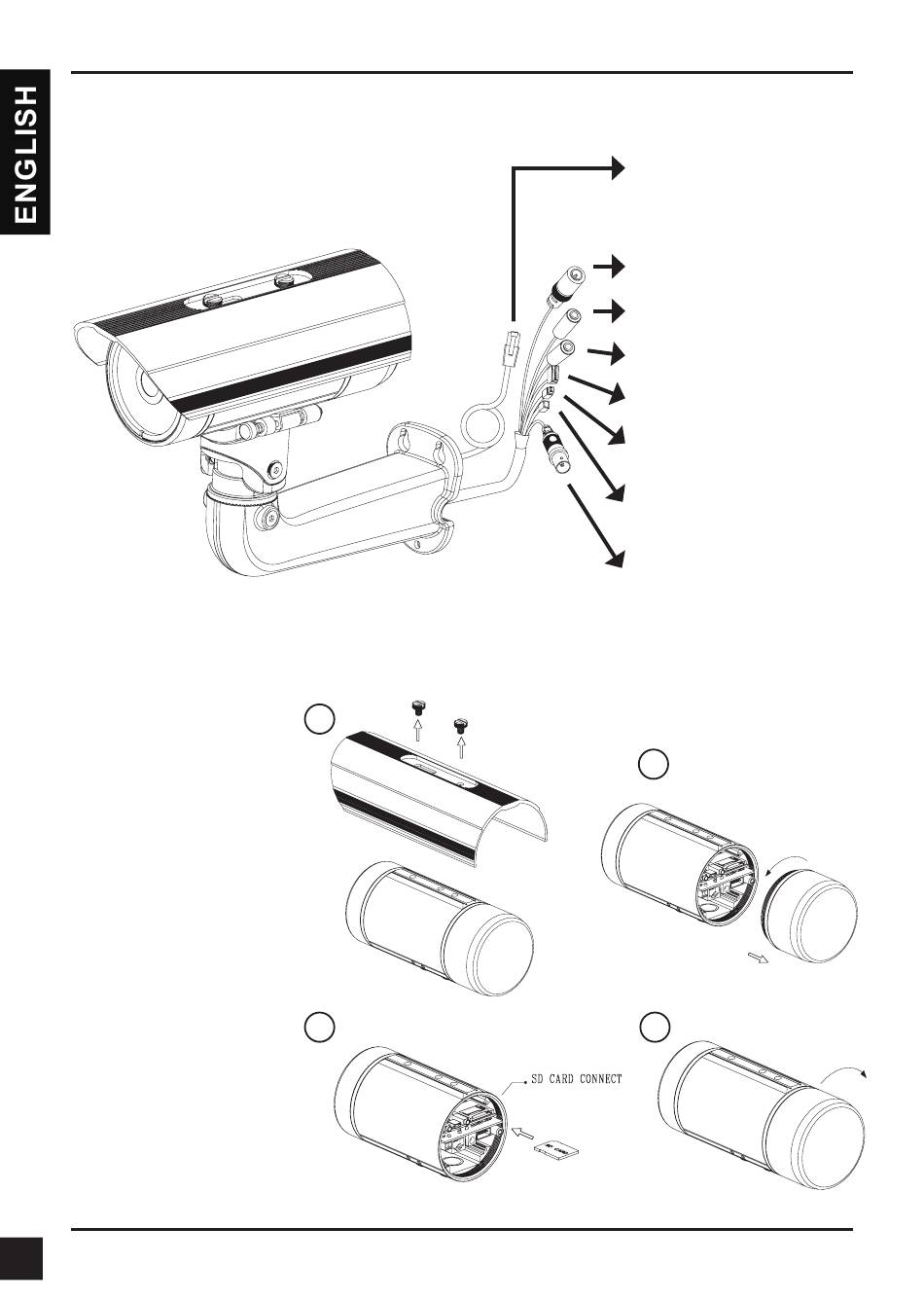

2. Hardware Overview

3. SD Card Installation

1
3
Ethernet Jack
RJ-45 connector for Ethernet
which can also be used to power
the camera using Power over
Ethernet (PoE)
Power Connector
Connects to 12 V DC power
Audio Out
Connects to speakers
Audio In
Connects to a microphone
DI/DO Wiring, 12V DC output
I/O connectors for external devices
24 V Power Connector
Connects to 24 V AC power
Reset
Press and hold this button for 10
seconds to reset the camera
BNC
Analog video output
2
4
