6. Commissioning

6.1 Install sliding bracket

CAUTION
Risk of injury through tipping over of the
sliding bracket!
Tipping over of the sliding bracket may lead to
slight injuries, such as jamming of the finger or
haematomas in users or other persons.
• When carrying the device, hold it so that the
sliding bracket cannot tip over.
EN
The sliding bracket can be adjusted to the height
of the user in two levels (A) and (B).
» (A): Lower level
» (B): Upper level
52
A
2
3
1

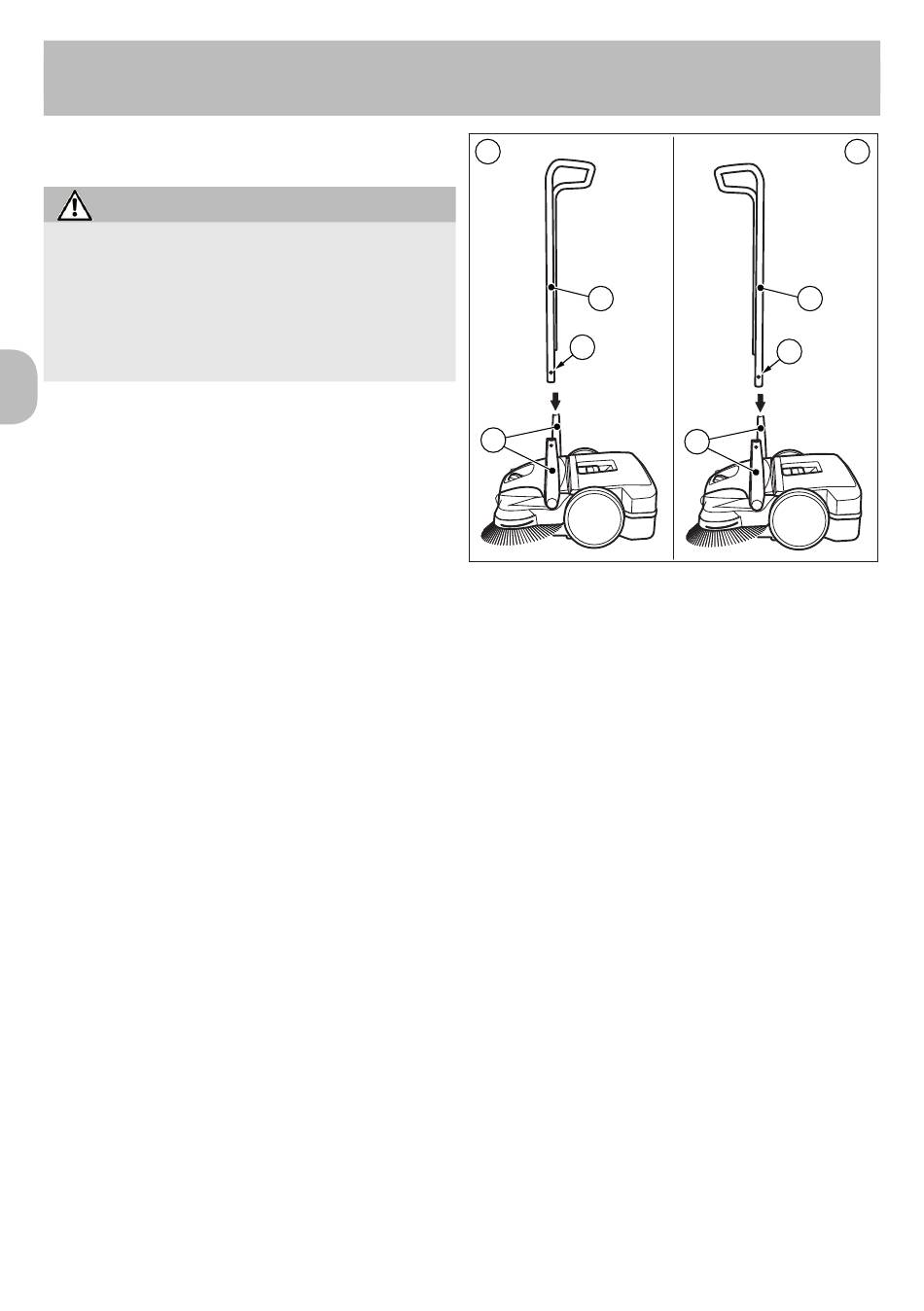

Abb. 7: Sliding bracket assembly
1. Turn the handles (1) into the vertical position.
2. Press the locking springs (3) inwards on both
sides of the sliding bracket.
3. Push the sliding bracket (2) into both handle
fittings simultaneously.
» To do so, the sliding bracket must bent apart
by about 10 cm before insertion in the handle
fittings.
4. Push the sliding bracket (2) into the handle
fittings until the locking springs lock in.
B
2
3
1
