RUSTA 907512020101 Gebrauchsanleitung Seite 3

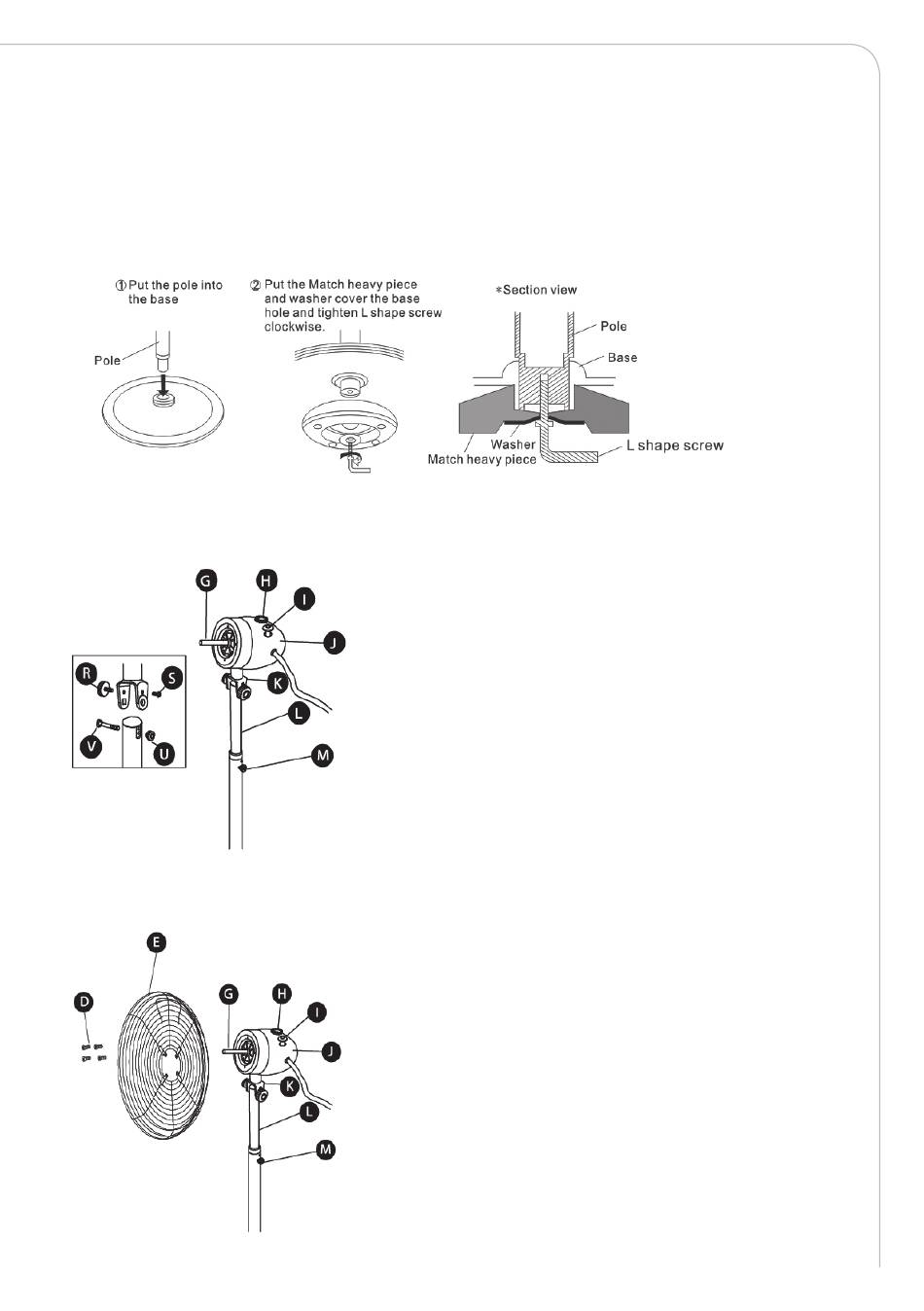

ASSEMBLY
1. Carefully unpack the fan base, motor head, fan grill (front and back) and fan blades from
the Styrofoam packing cradle.
2. Attach the round fan base to the fan base pole by inserting pole through round fan
base and securing together using the black center weight, washer and L shape screw-
as shown in the diagram.
3. Unscrew and remove (R) (S) (U) (V) from rack (K). Put upper pole into the center of
motor. Assembly rack and screws on and tighten (R) (S) (U) (V) screws and nuts.
4. Slide on back Grill (E) onto front shell of motor (J) screw on and tighten 4 back grill
locking screws onto the front shell of motor.
3
