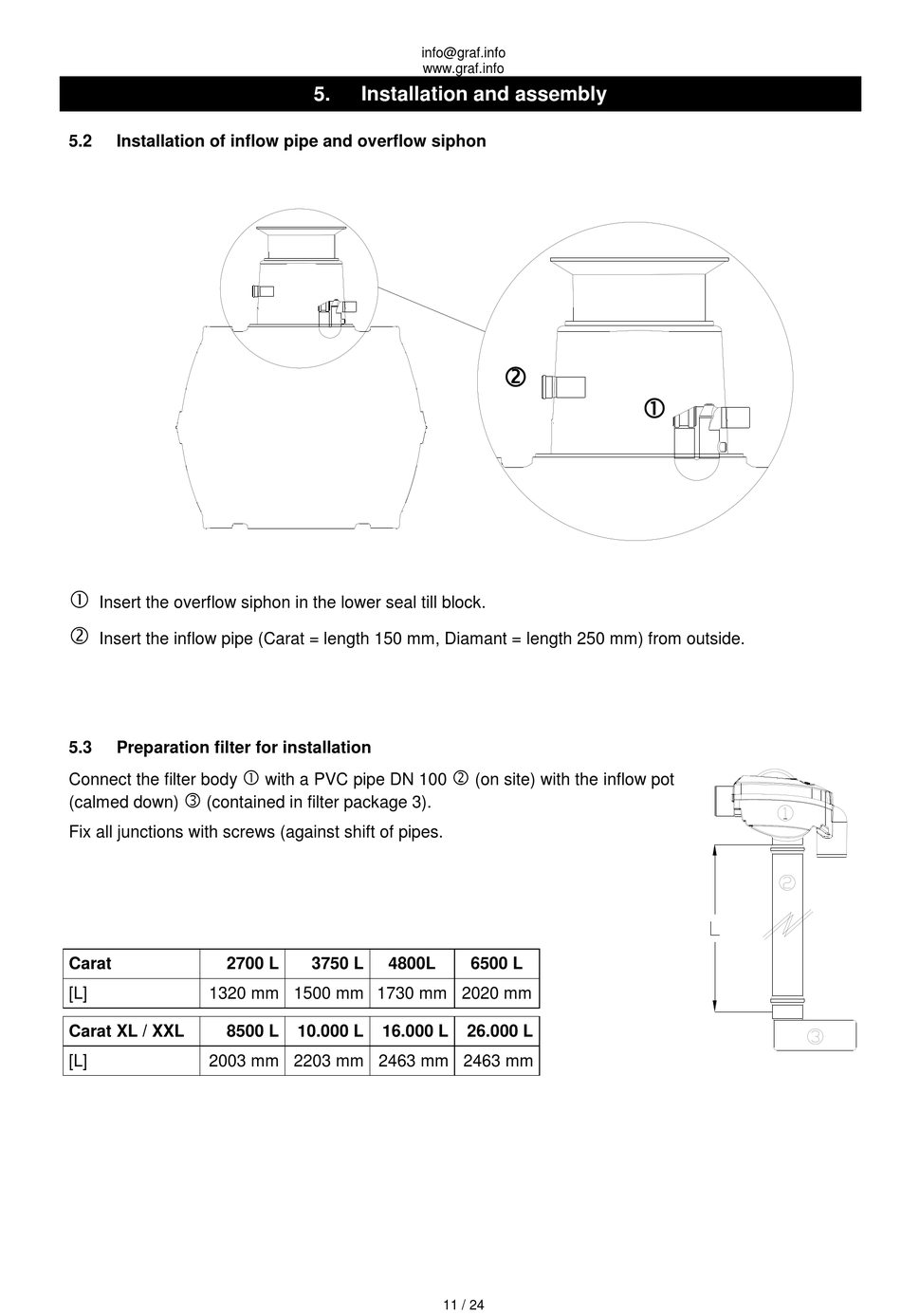

5.2
Installation of inflow pipe and overflow siphon
Insert the overflow siphon in the lower seal till block.
Insert the inflow pipe (Carat = length 150 mm, Diamant = length 250 mm) from outside.
5.3
Preparation filter for installation
Connect the filter body
(calmed down)
(contained in filter package 3).
Fix all junctions with screws (against shift of pipes.
Carat
2700 L
[L]
1320 mm 1500 mm 1730 mm 2020 mm
Carat XL / XXL
8500 L
[L]
2003 mm 2203 mm 2463 mm 2463 mm
5.
Installation and assembly
with a PVC pipe DN 100
3750 L
4800L
10.000 L
16.000 L
info@graf.info
www.graf.info
(on site) with the inflow pot
6500 L
26.000 L
11 / 24
