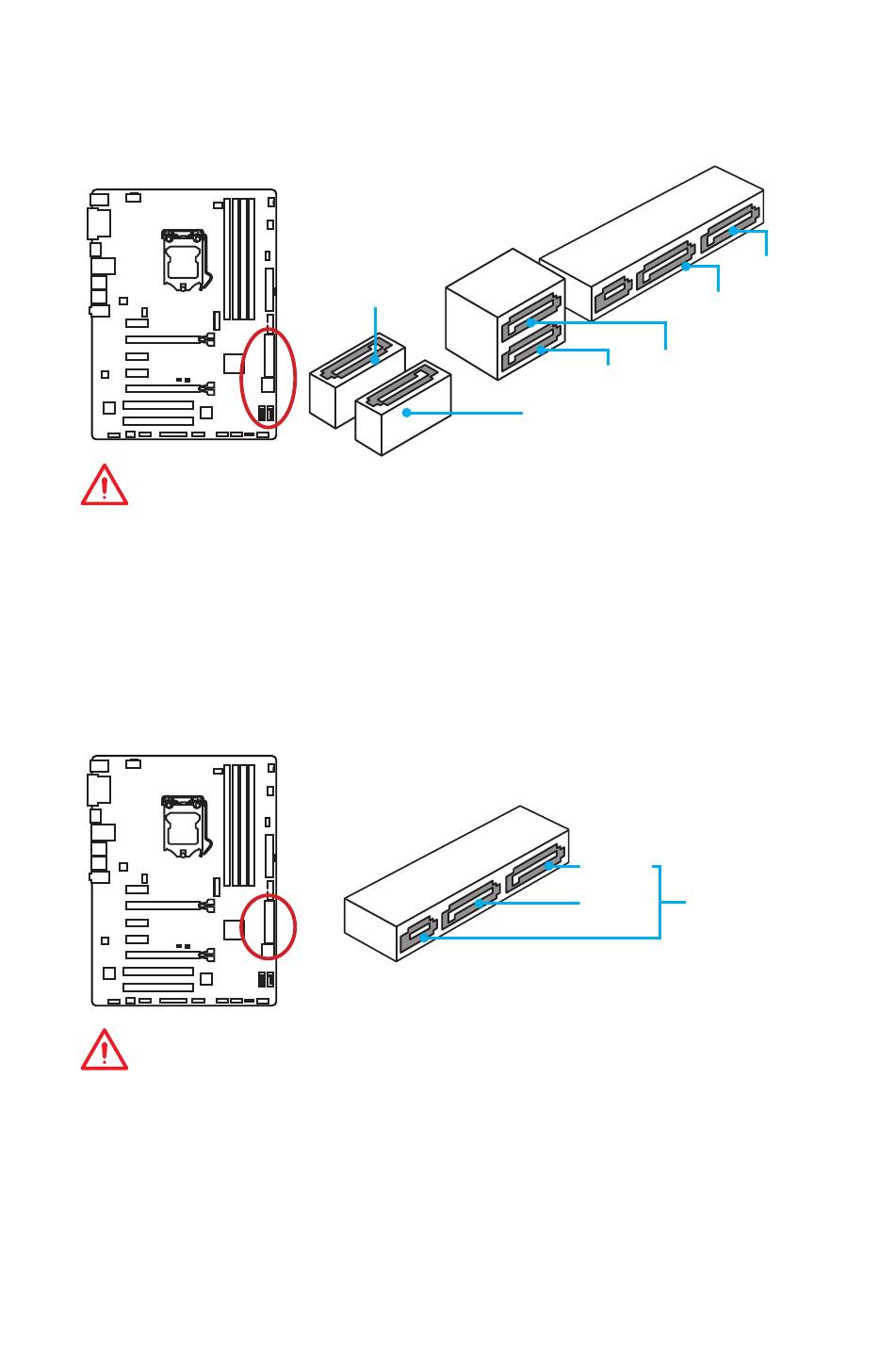

SATA1~6: SATA 6Gb/s Connectors

These connectors are SATA 6Gb/s interface ports. Each connector can connect to
one SATA device.
Important
● SATA1~2 ports will be unavailable when installing the M.2 SATA interface module
in M.2 slot.
● SATA3~4 ports will be unavailable when installing the M.2 PCIe interface module in
M.2 slot

SE1_21: SATAe Connector

This connector is SATAe (SATA Express) interface port. Each SATAe connector can
be used with a single SATAe device or two legacy SATA devices.
Important
● Please do not fold the SATA or SATAe cable at a 90-degree angle. Data loss may
result during transmission otherwise.
● SATA cable has identical plugs on either sides of the cable. However, it is
recommended that the flat connector be connected to the motherboard for space
saving purposes.
12
Overview of Components
SATA5
SATA2
SATA4
SATA3
SATA6
SATA1
SATAe
SATA2
SATA1
