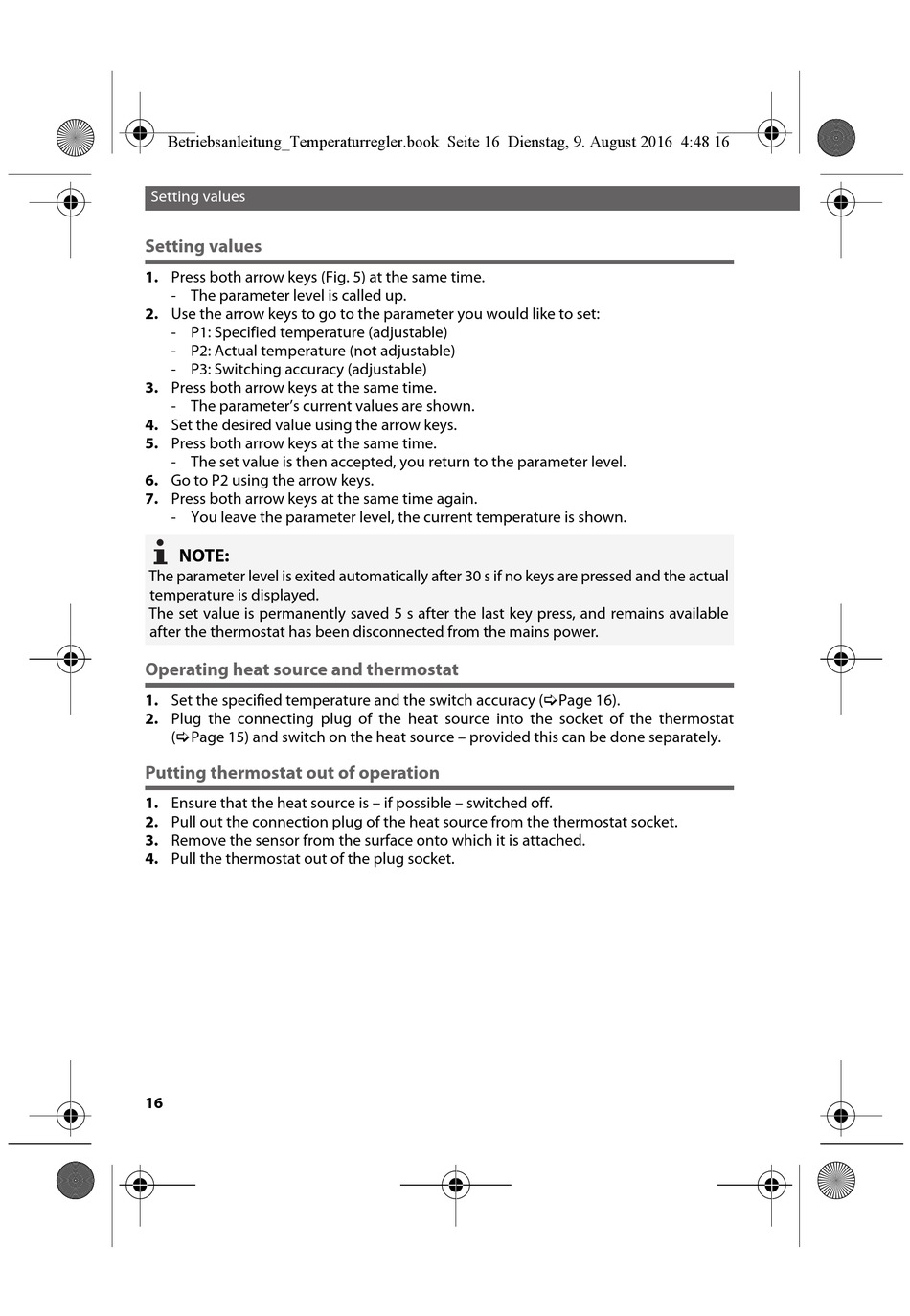

Setting values

Setting values
1. Press both arrow keys (Fig. 5) at the same time.
- The parameter level is called up.
2. Use the arrow keys to go to the parameter you would like to set:
- P1: Specified temperature (adjustable)
- P2: Actual temperature (not adjustable)
- P3: Switching accuracy (adjustable)
3. Press both arrow keys at the same time.
- The parameter's current values are shown.
4. Set the desired value using the arrow keys.
5. Press both arrow keys at the same time.
- The set value is then accepted, you return to the parameter level.
6. Go to P2 using the arrow keys.
7. Press both arrow keys at the same time again.
- You leave the parameter level, the current temperature is shown.
NOTE:
The parameter level is exited automatically after 30 s if no keys are pressed and the actual
temperature is displayed.
The set value is permanently saved 5 s after the last key press, and remains available
after the thermostat has been disconnected from the mains power.
Operating heat source and thermostat
1. Set the specified temperature and the switch accuracy (Page 16).
2. Plug the connecting plug of the heat source into the socket of the thermostat
(Page 15) and switch on the heat source – provided this can be done separately.
Putting thermostat out of operation
1. Ensure that the heat source is – if possible – switched off.
2. Pull out the connection plug of the heat source from the thermostat socket.
3. Remove the sensor from the surface onto which it is attached.
4. Pull the thermostat out of the plug socket.
