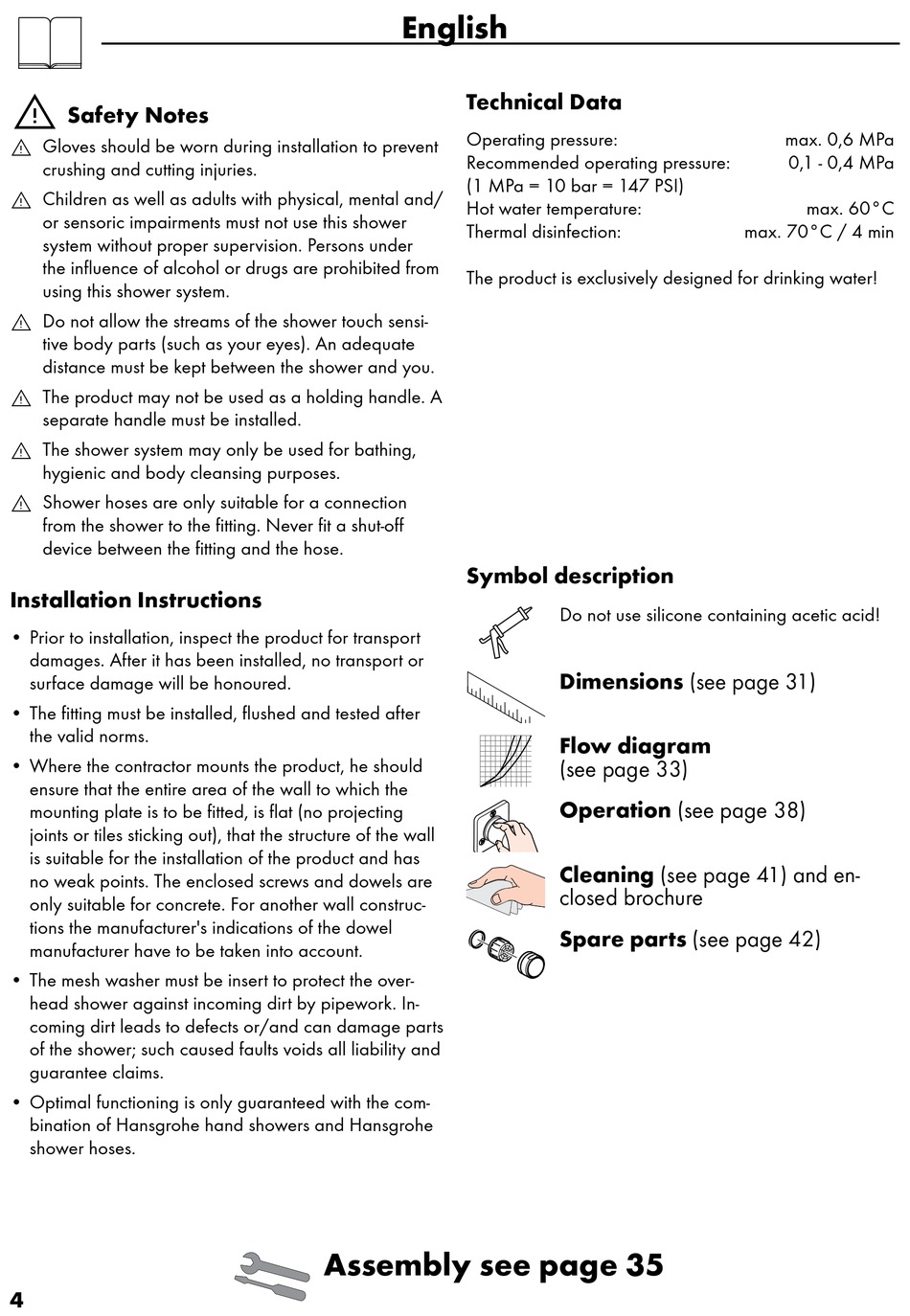

Safety Notes
6 Gloves should be worn during installation to prevent
crushing and cutting injuries.
6 Children as well as adults with physical, mental and/
or sensoric impairments must not use this shower
system without proper supervision. Persons under
the influence of alcohol or drugs are prohibited from
using this shower system.
6 Do not allow the streams of the shower touch sensi-
tive body parts (such as your eyes). An adequate
distance must be kept between the shower and you.
6 The product may not be used as a holding handle. A
separate handle must be installed.
6 The shower system may only be used for bathing,
hygienic and body cleansing purposes.
6 Shower hoses are only suitable for a connection
from the shower to the fitting. Never fit a shut-off
device between the fitting and the hose.
Installation Instructions
• Prior to installation, inspect the product for transport
damages. After it has been installed, no transport or
surface damage will be honoured.
• The fitting must be installed, flushed and tested after
the valid norms.
• Where the contractor mounts the product, he should
ensure that the entire area of the wall to which the
mounting plate is to be fitted, is flat (no projecting
joints or tiles sticking out), that the structure of the wall
is suitable for the installation of the product and has
no weak points. The enclosed screws and dowels are
only suitable for concrete. For another wall construc-
tions the manufacturer's indications of the dowel
manufacturer have to be taken into account.
• The mesh washer must be insert to protect the over-
head shower against incoming dirt by pipework. In-
coming dirt leads to defects or/and can damage parts
of the shower; such caused faults voids all liability and
guarantee claims.
• Optimal functioning is only guaranteed with the com-
bination of Hansgrohe hand showers and Hansgrohe
shower hoses.
4
English
Technical Data
Operating pressure:
Recommended operating pressure:
(1 MPa = 10 bar = 147 PSI)
Hot water temperature:
Thermal disinfection:
The product is exclusively designed for drinking water!
Symbol description
Assembly see page 35
Do not use silicone containing acetic acid!
Dimensions (see page 31)
Flow diagram
(see page 33)
Operation (see page 38)
Cleaning (see page 41) and en-
closed brochure
Spare parts (see page 42)
max. 0,6 MPa
0,1 - 0,4 MPa
max. 60°C
max. 70°C / 4 min
