Mounting the adapter on the AG-HMC40P (or AG-HMC41E)
1

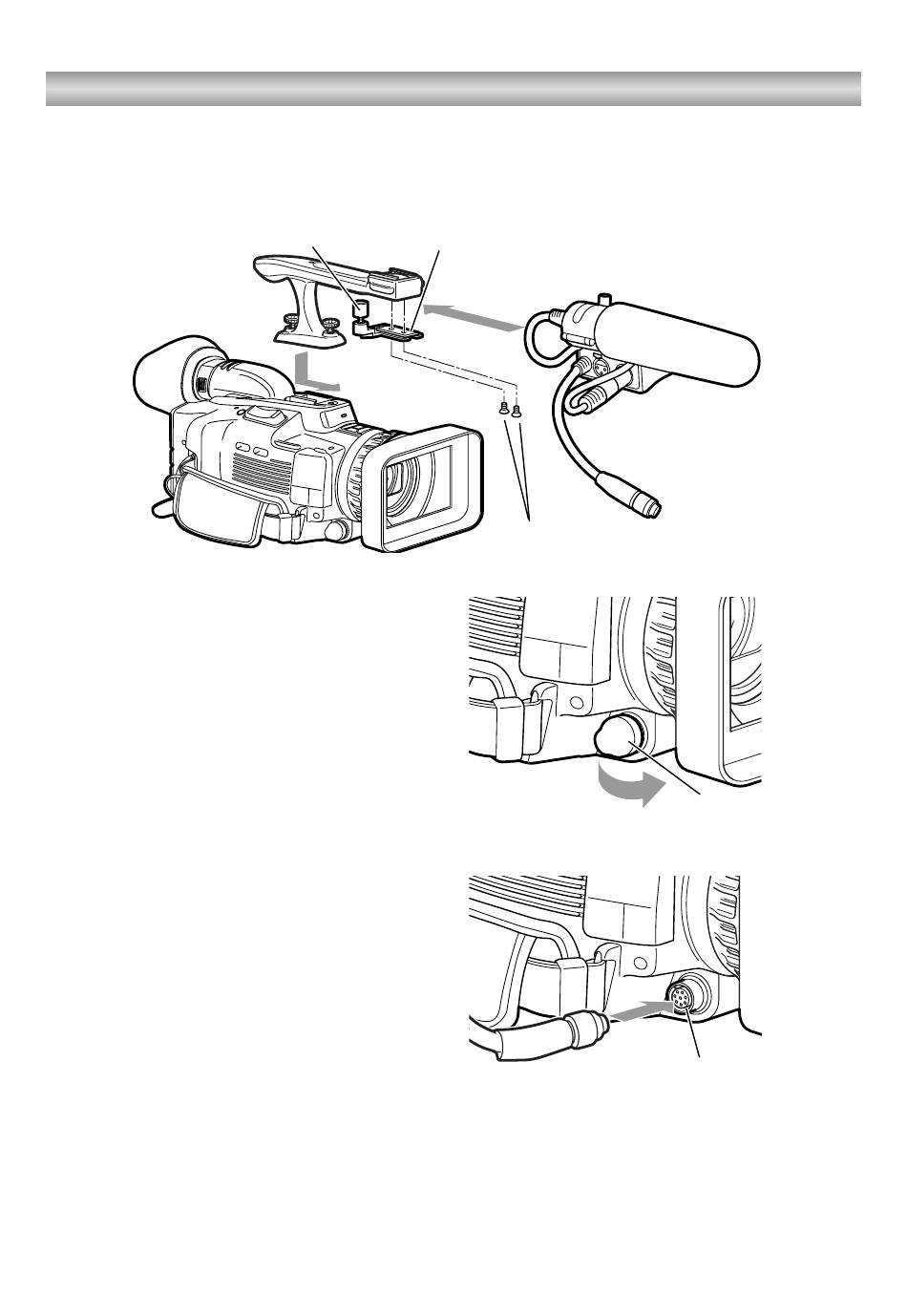

Mount the metal fitting on the handle provided with the AG-HMC40P (or AG-
HMC41E) using the 6 mm long flush-head screws.
Anchoring screws
2
Install the handle on the AG-HMC40P
(or AG-HMC41E).
3
Insert the shoe of the adapter into the
metal fitting, and secure the adapter
by tightening the anchoring screws.
4
Remove the connector cover on the
AG-HMC40P (or AG-HMC41E).
5
Connect the adapter's cable to the
XLR ADAPTER connector on the AG-
HMC40P (or AG-HMC41E).
E-5
Metal fitting
6 mm flush head screws
Connector cover
XLR ADAPTER
connector
