Digital interfaces: Line Driver; 2xLine Driver
Pin Signal Description
1 A
quadrature signal A
2 B
quadrature signal B
3 N.C.
4 +24VDC
power supply of translation module
(24VDC±20%)
5 0V
for translation module
6 /A
quadrature signal /A
7 /B
quadrature signal /B
8 DÜA
data output RS485
9 DÜB
data output RS485
Digital interface: Without
Pin Signal Description
1 N.C.
2 N.C.
3 N.C.
4 +24VDC
power supply of translation module
(24VDC±20%)
5 0V
for translation module
6 N.C.
7 N.C.
8 DÜA
data output RS485
9 DÜB
dataoutput RS485

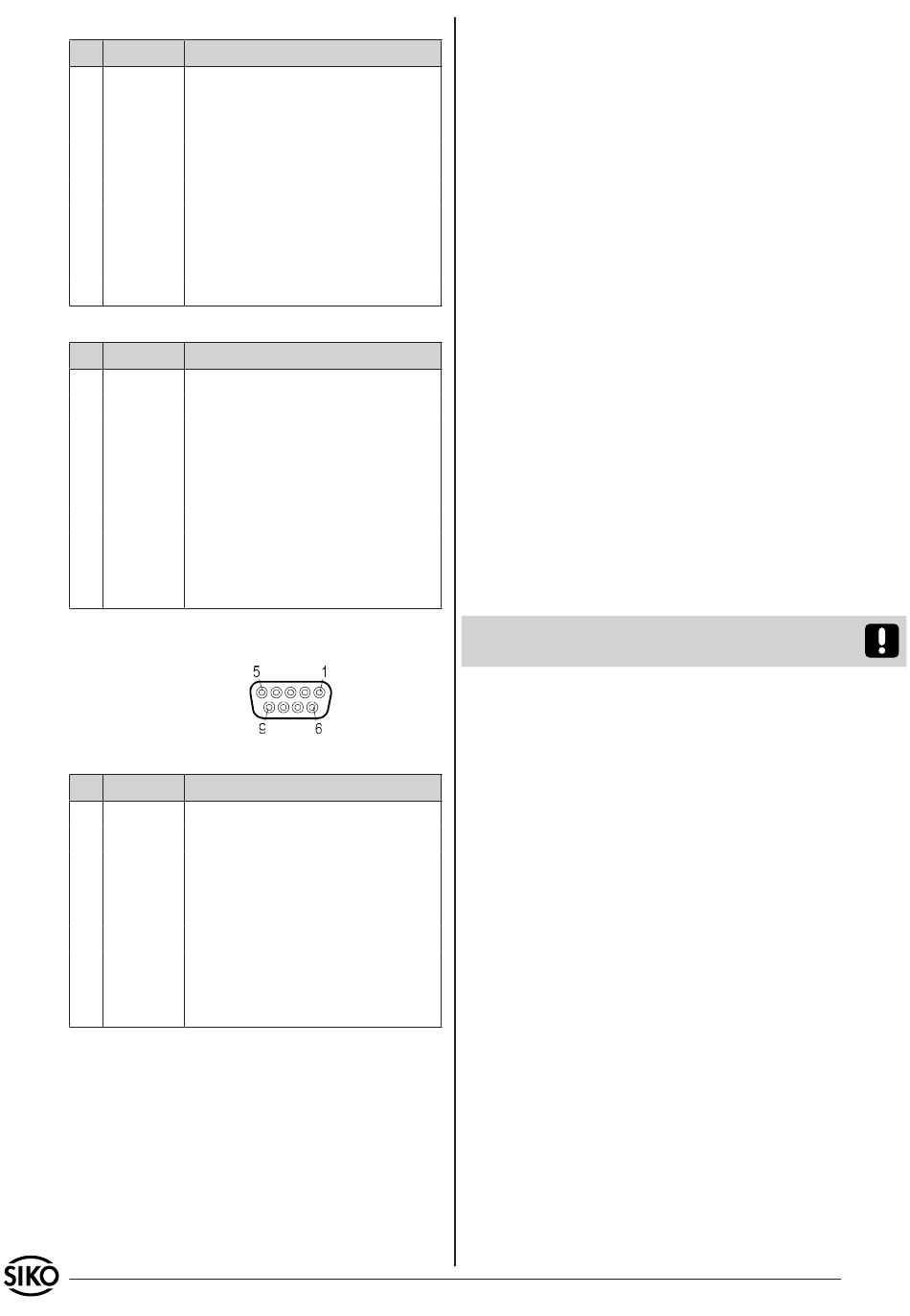

Connector connection X3 (9 pole D-SUB female)
viewing side =
plug-in-side
Analog interface: 1Vss
Pin Signal Description
1 Sin
analog signal Sinus
2 /Sin
analog signal Sinus inverted
3 Cos
analog signal Cosinus
4 N.C.
5 N.C.
6 N.C.
7 ANA_GND
for analog signal
8 /Cos
analogsignal Cosinus invertiert
9 N.C.
8 ASA110H+MBA110
5. Trouble shooting
Below there are some typical errors which may oc-
cur during installation and operation:
•
•
•
•
•
•
•
•
For software description please refer to the
supplementary sheet.
SIKO GmbH
Werk / Factory:
Weihermattenweg 2
79256 Buchenbach-Unteribental
Postanschrift / Postal address:
Postfach 1106
79195 Kirchzarten
Telefon/Phone
Telefax/Fax
E-Mail
Internet
Service
Datum 08.06.2010
The ASA110H is not or incorrectly connected
(connector connection see chapter 4.1).
Tolerance for the gap between magnetic sensor
and magnetic strip not observed over the total
travel distance. Sensor touches strip.
Cable squeezed / interrupted / cut by sharp
edges.
Sensor's active side not mounted towards the
magnetic strip (see fig. 7 and 8).
Sensor and strip are aligned incorrectly towards
each other (see chapter 3.3).
Magnetic fields next to the measurement area
falsify the measured values; screening may be
required. Such fields can be caused by magnetic
clamps, permanent magnets or magnetic machine
parts.
Wrong measuring values due to EMC interferences
(see chapter 4).
The operating mode set does not correspond with
the hardware connected.
